D-SUB Connector

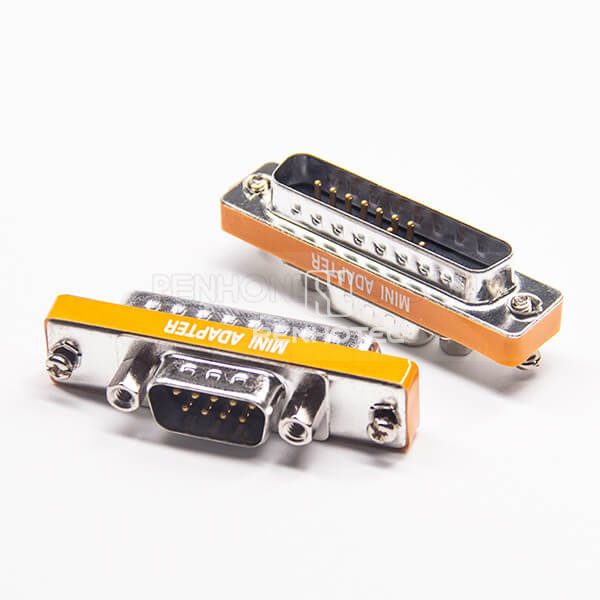

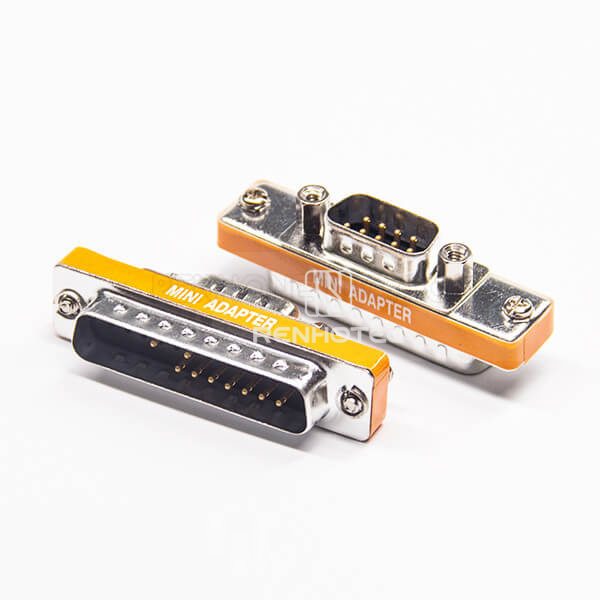

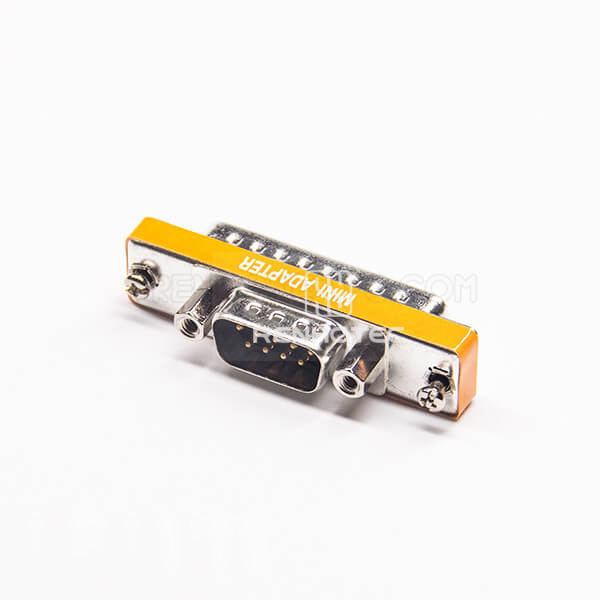

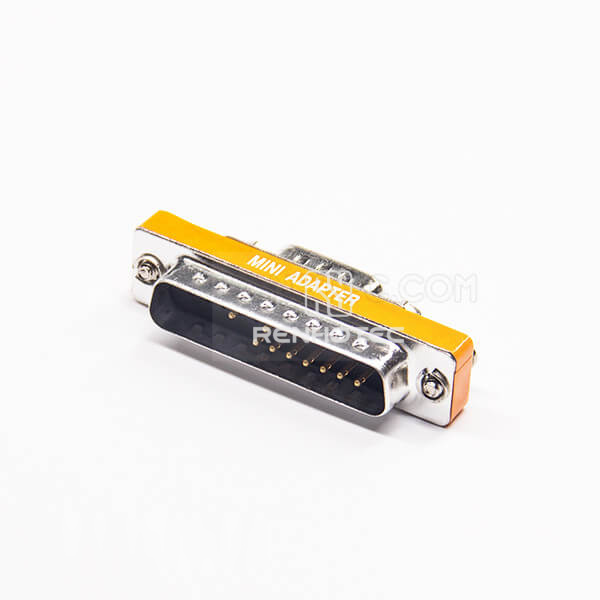

Mini Gender Changer Straight Metal 9 Pin Male To 25 Pin Male Standard D-SUB

Mini Gender Changer Straight Metal 9 Pin Male To 25 Pin Male Standard D-SUB
Enlarge image
Mini Gender Changer Straight Metal 9 Pin Male To 25 Pin Male Standard D-SUBMini Gender Changer Straight Metal 9 Pin Male To 25 Pin Male Standard D-SUBMini Gender Changer Straight Metal 9 Pin Male To 25 Pin Male Standard D-SUBMini Gender Changer Straight Metal 9 Pin Male To 25 Pin Male Standard D-SUB

Key specifications

Connector Type
D-SUB Adapter&Gender Changers
Gender
Male
Orientation
Straight
Request QuoteFull specifications

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Connector Type
D-SUB Adapter&Gender Changers
Gender
Male
Orientation
Straight
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.
Pin Count at connector ends
25 Pin / 9 Pin

Material

Material
Metal
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C
