D-SUB Connector

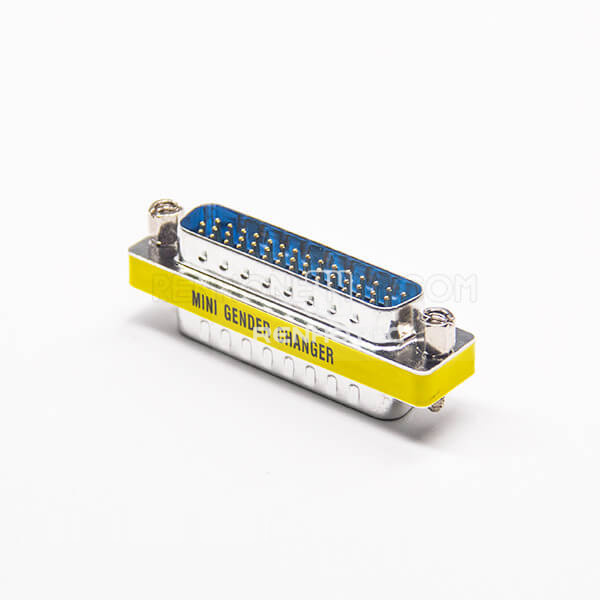

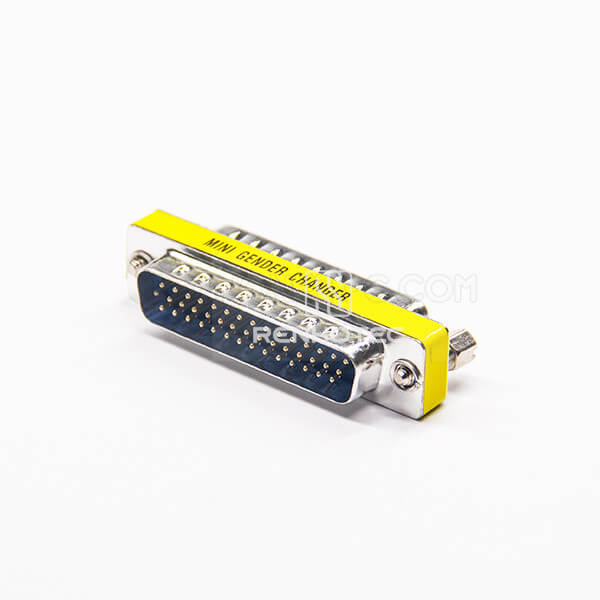

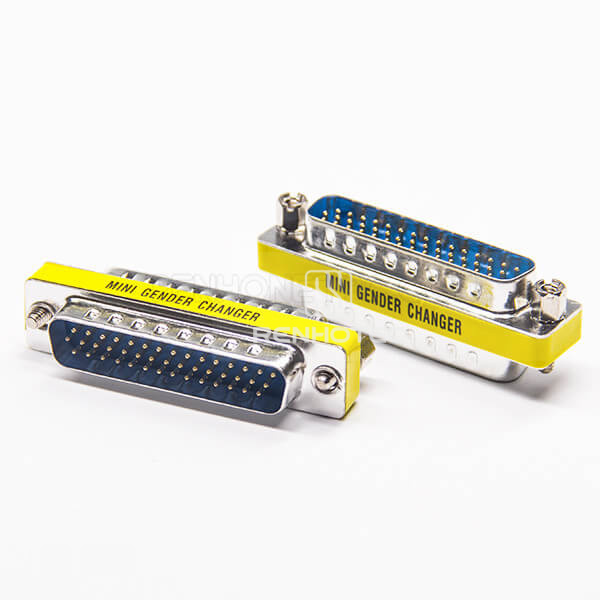

Mini Gender Changer Male To Male 180°44 Pin High Density D-SUB Metal

Part No.RHT-681-1299
44-pin male-to-male high-density D-SUB adapter with a straight configuration.
  • Connector TypeD-SUB Adapter&Gender Changers
  • Pin Count44 Pin
  • GenderMale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Connection

Connector Type
D-SUB Adapter&Gender Changers

Mechanical

Pin Count
44 Pin
Gender
Male
Orientation
Straight
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.

Material

Material
Metal / metal
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C

Before you specify

Selection guide

44-pin male-to-male high-density D-SUB adapter with a straight configuration.

RHT-681-1299
