D-SUB Connector

Mini Gender Changer Adapter Male To Female Straight Metal 9 Pin Standard D-SUB

Public Part No. RHT-681-1261

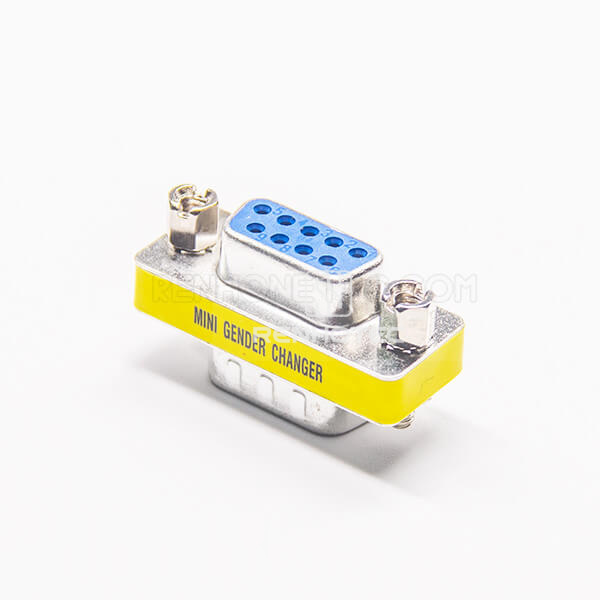

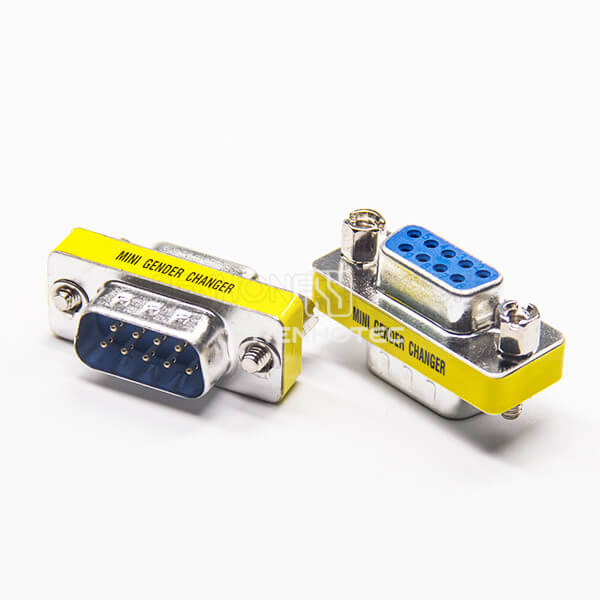

Mini Gender Changer Adapter Male To Female Straight Metal 9 Pin Standard D-SUB
Enlarge image
Mini Gender Changer Adapter Male To Female Straight Metal 9 Pin Standard D-SUBMini Gender Changer Adapter Male To Female Straight Metal 9 Pin Standard D-SUBMini Gender Changer Adapter Male To Female Straight Metal 9 Pin Standard D-SUB

Key specifications

Connector Type
D-SUB Adapter&Gender Changers
Pin Count
9 Pin
Orientation
Straight
Request QuoteFull specifications

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Connector Type
D-SUB Adapter&Gender Changers
Pin Count
9 Pin
Orientation
Straight
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.
Gender at connector ends
Female / Male

Material

Material
Metal
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C

Connector requirement
