Cable Assembly

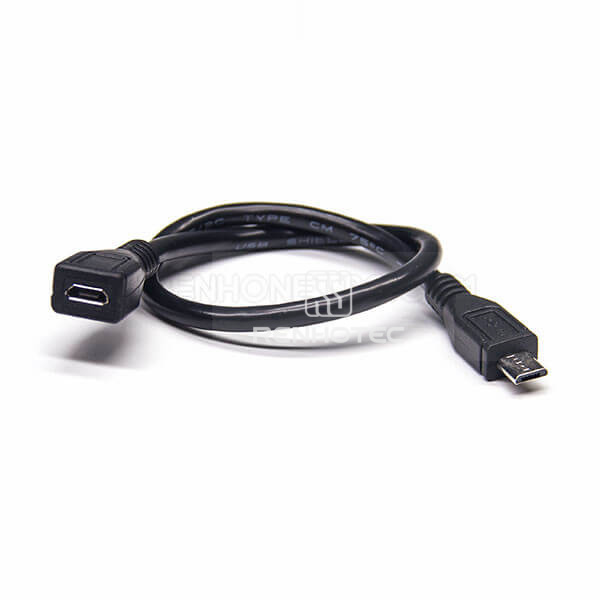

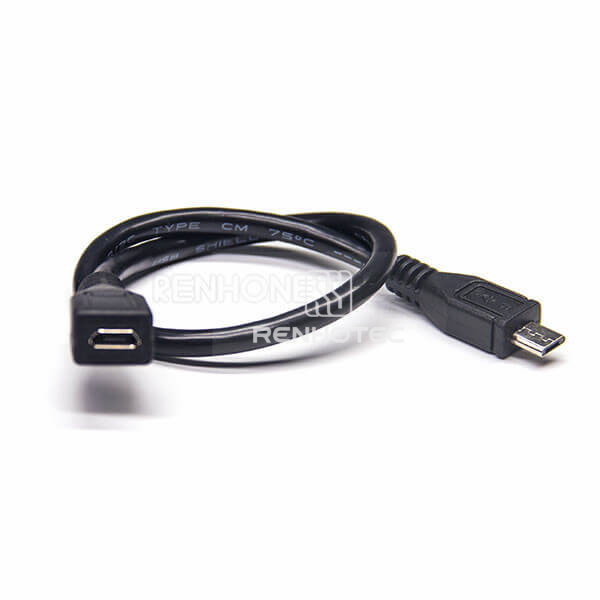

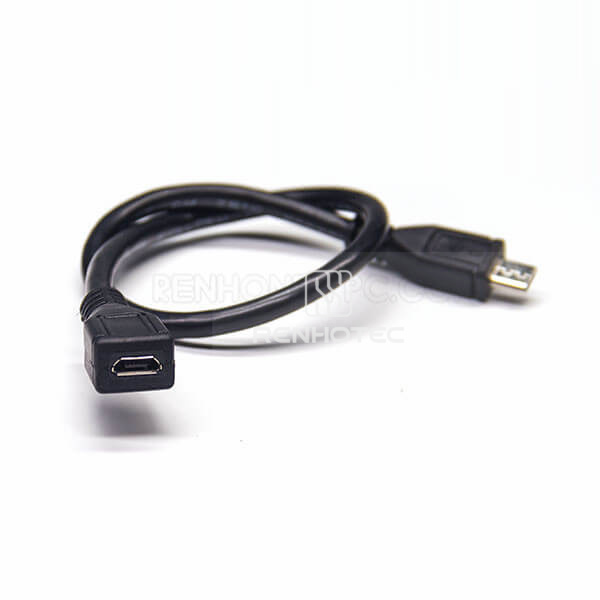

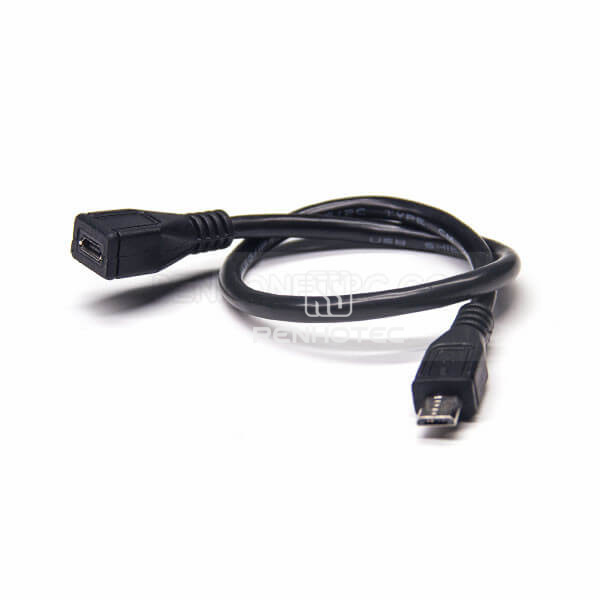

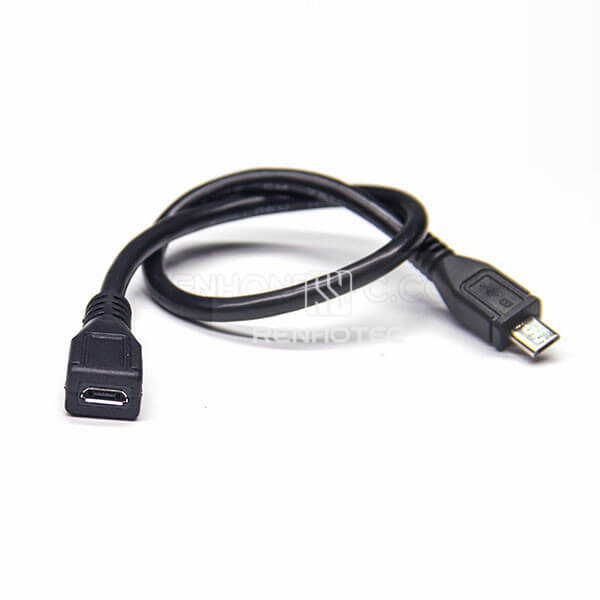

Micro USB Male-to-Female Straight USB 2.0 Cable
USB 2.0 cable with straight Micro USB male and straight Micro USB female connectors.
- Connector TypeMicro USB / USB2.0
- OrientationStraight
- Current Rating3A continuous
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 3A continuous
- Insulation resistance
- 500MΩ min.
- Dielectric withstanding voltage
- 1500V min.
Connection
- Connector Type
- Micro USB / USB2.0
Mechanical
- Orientation
- Straight
- Cable length
- 1 m
- Cable outside diameter
- 3.5 mm
- Mating force
- 5N to 20N
- Unmating Force
- 8N to 20N
- Durability
- 10,000 mating cycles
- Gender at connector ends
- Female / Male
Material
- Conductor material
- Copper
- Cable jacket material
- PVC
Environmental
- Operating Temperature
- -40 to 120 °C
Before you specify
Selection guide
USB 2.0 cable with straight Micro USB male and straight Micro USB female connectors.
