USB Connector

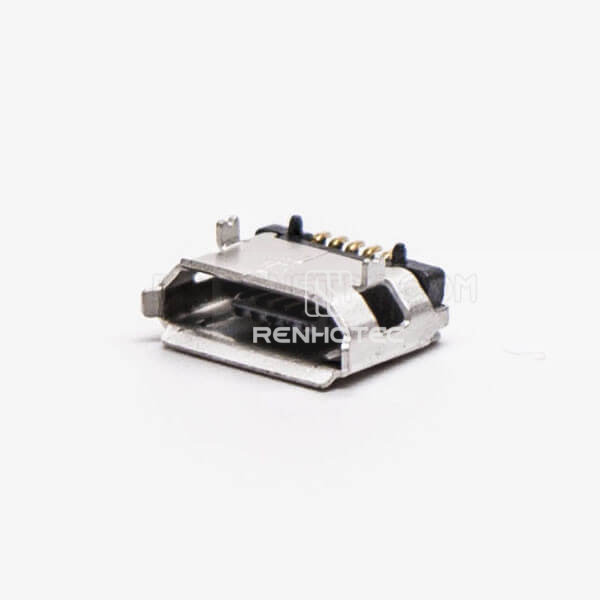

Micro USB Female 5 Pin Type B SMT 180° 5.65 for PCB Mount

Public Part No. RHT-692-1243

Micro USB Female 5 Pin Type B SMT 180° 5.65 for PCB Mount
Enlarge image

Key specifications

Connector Type
Micro USB
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / SMT / Through Hole
Pin Count
5 Pin
Request QuoteFull specifications

Overview

A 5-pin female Micro USB Type-B connector with a straight orientation and SMT PCB mounting. Check the contact pads and mounting holes against the board footprint.

Full Specifications

Mechanical

Connector Type
Micro USB
Pin Count
5 Pin
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / SMT / Through Hole
