USB Connector

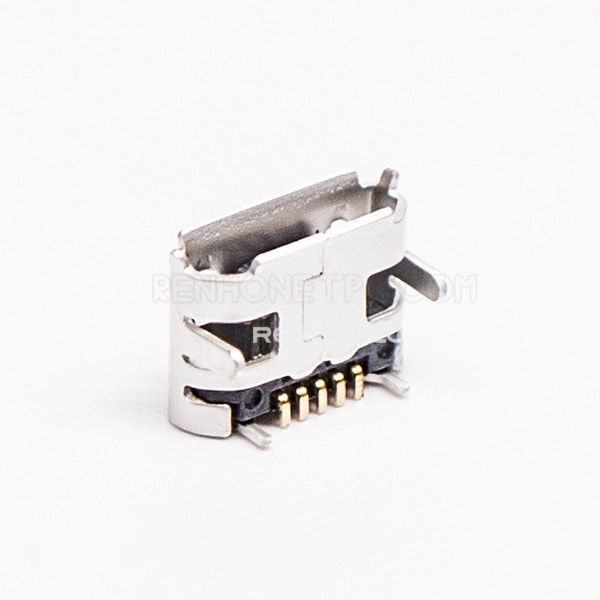

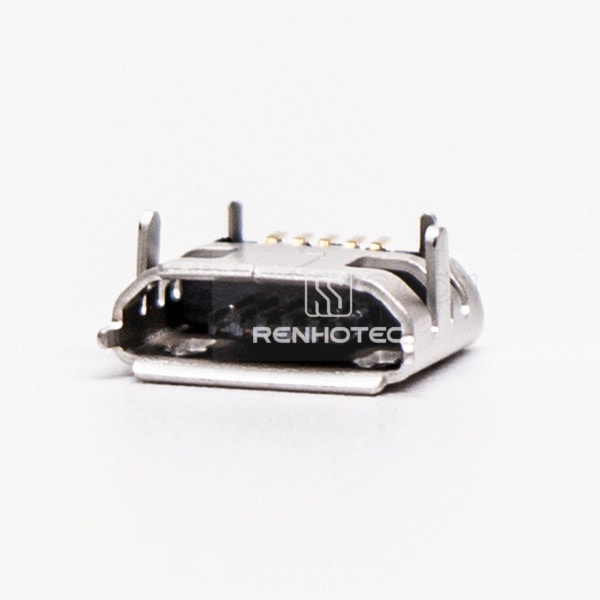

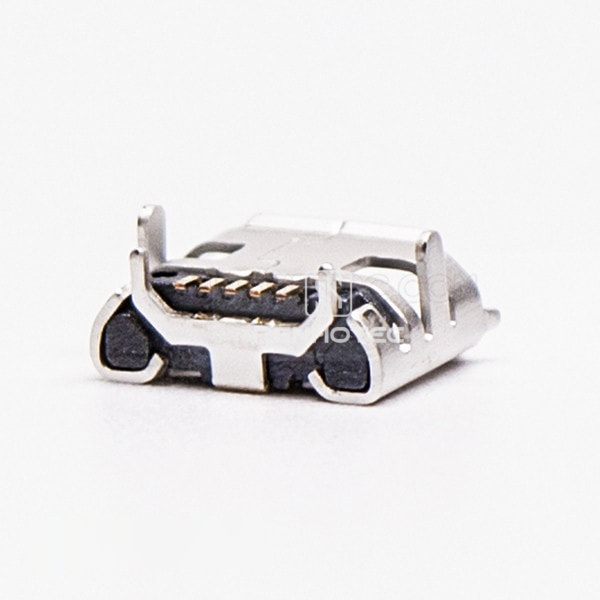

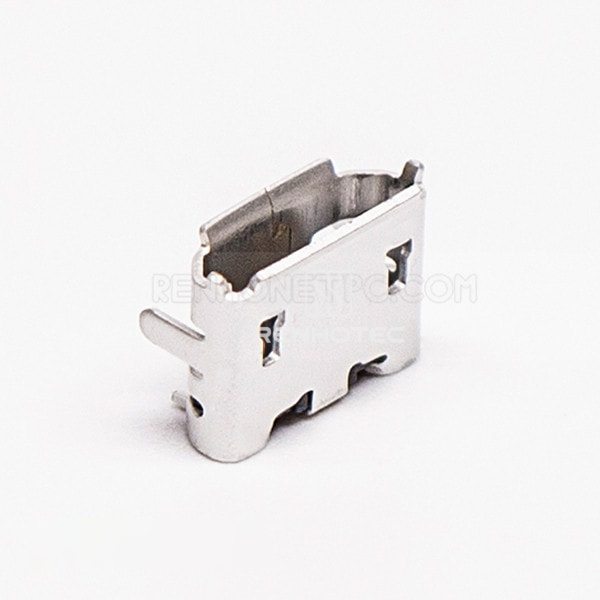

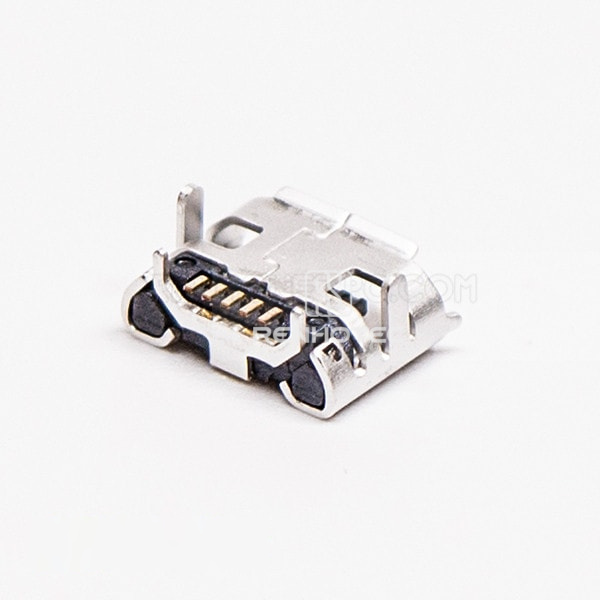

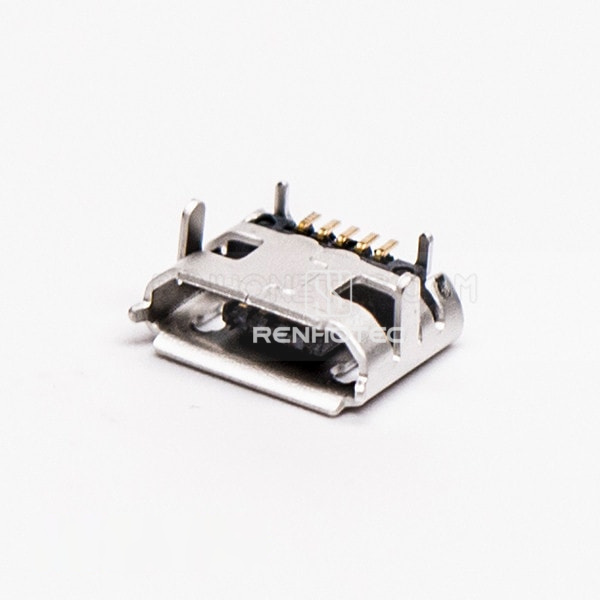

Micro USB B Female Connector 5 Pin SMT Type B Straight for PCB

Public Part No. RHT-692-1260

Micro USB B Female Connector 5 Pin SMT Type B Straight for PCB
Enlarge image
Micro USB B Female Connector 5 Pin SMT Type B Straight for PCBMicro USB B Female Connector 5 Pin SMT Type B Straight for PCBMicro USB B Female Connector 5 Pin SMT Type B Straight for PCBMicro USB B Female Connector 5 Pin SMT Type B Straight for PCBMicro USB B Female Connector 5 Pin SMT Type B Straight for PCBMicro USB B Female Connector 5 Pin SMT Type B Straight for PCB

Key specifications

Connector Type
Type B / Micro USB
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / SMT
Pin Count
5 Pin
Request QuoteFull specifications

Overview

USB Connector with 5 Pin, Female, Straight, Micro USB / Type B. Mounting: PCB Mount, SMT.

Shielding: Shielded.

Full Specifications

Electrical

Current Rating
1A max.
Voltage Rating
100V AC RMS
Contact Resistance
10 milliohms max
Insulation Resistance
1000M ΩMin
Dielectric Withstanding Voltage
500 V DC/1min

Mechanical

Connector Type
Type B / Micro USB
Pin Count
5 Pin
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / SMT
Shielding
Shielded
Durability
10,000 cycles
Mating force
35N max
Unmating Force
10N

Environmental

Operating Temperature
-55 to 85 °C
