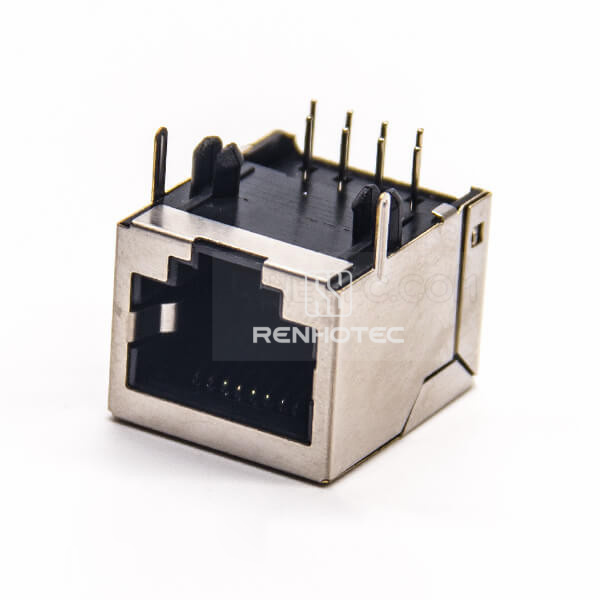

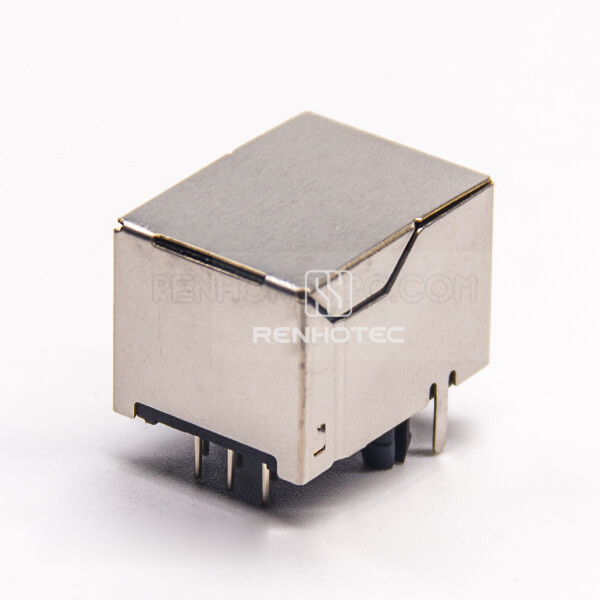

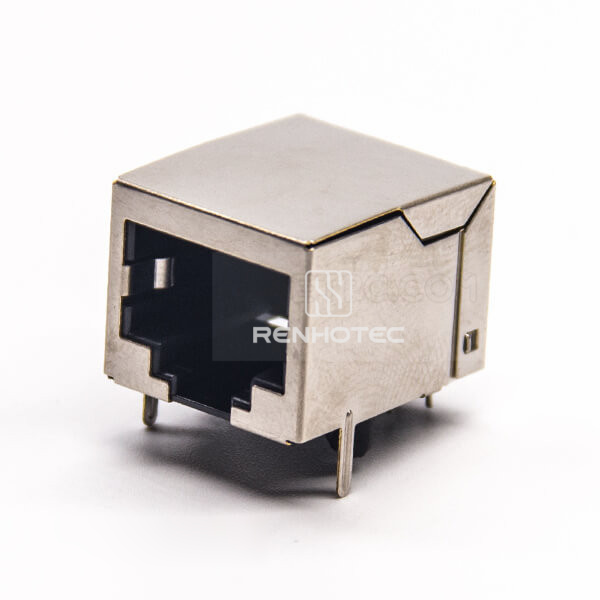

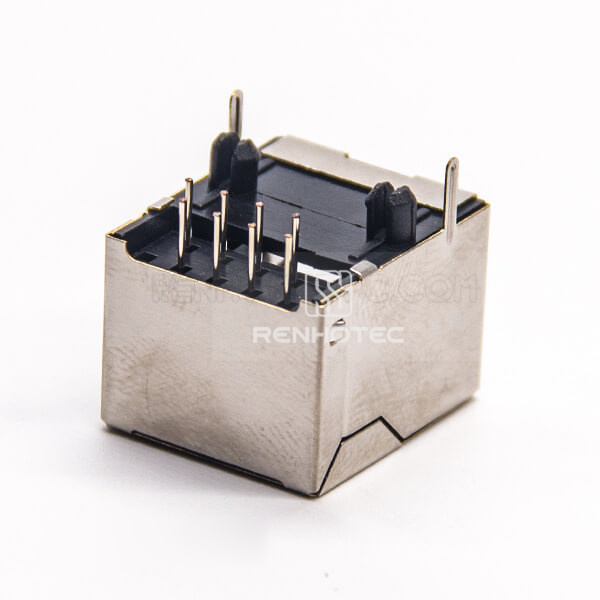

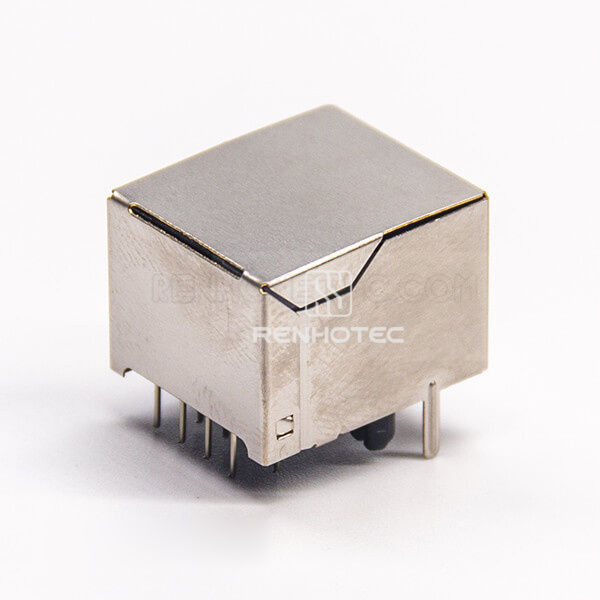

Metal RJ45 Socket DIP Type Right Angle Shielded without LED for PCB Mount

Public Part No. RHT-620-1285

Metal RJ45 Socket DIP Type Right Angle Shielded without LED for PCB Mount
Enlarge image
Metal RJ45 Socket DIP Type Right Angle Shielded without LED for PCB MountMetal RJ45 Socket DIP Type Right Angle Shielded without LED for PCB MountMetal RJ45 Socket DIP Type Right Angle Shielded without LED for PCB MountMetal RJ45 Socket DIP Type Right Angle Shielded without LED for PCB MountMetal RJ45 Socket DIP Type Right Angle Shielded without LED for PCB Mount

Key specifications

Connector Type
8P8C / RJ45 Jack
Orientation
Right Angle
Mounting Type
DIP / PCB Mount / Through Hole
Request QuoteFull specifications

Full Specifications

Electrical

LED Option
Without LED
Current Rating
3A continuous
Voltage Rating
1000V RMS
Filter detail
without Filtered
Insulation resistance
500MΩ min.
Dielectric withstanding voltage
1500V min.

Mechanical

Connector Type
8P8C / RJ45 Jack
Orientation
Right Angle
Mounting Type
DIP / PCB Mount / Through Hole
Number of Ports
1 Port
Shielding
Shielded
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles

Environmental

Operating Temperature
-40 to 120 °C
