D-SUB Connector

Metal Adapter Male to Male Straight Metal High Density D-SUB

Public Part No. RHT-681-1293

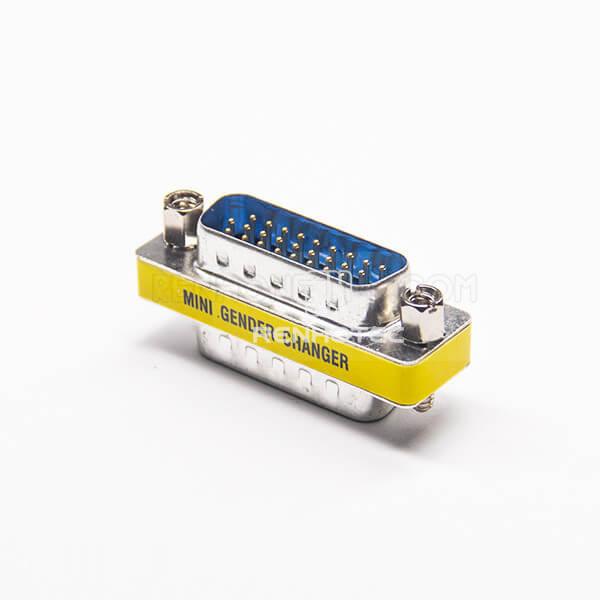

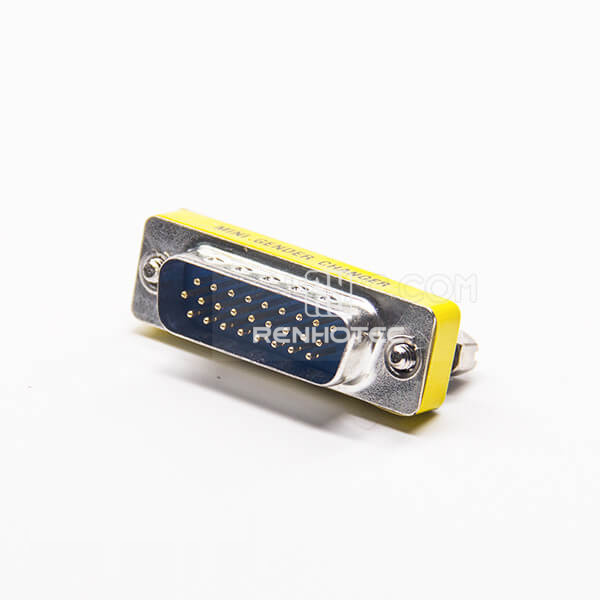

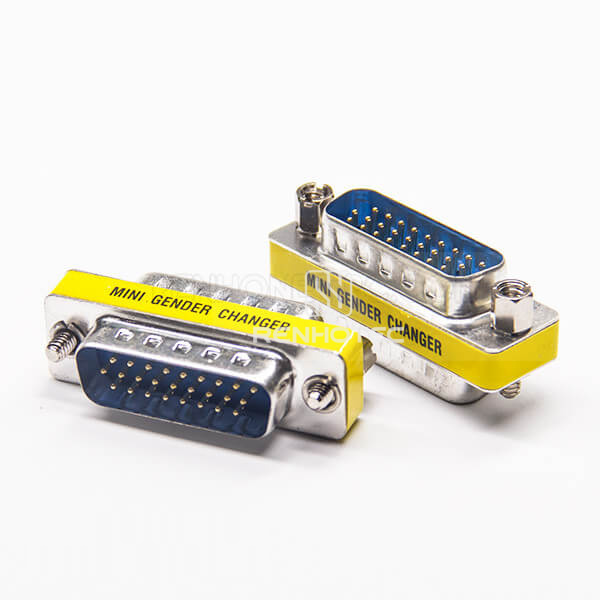

Metal Adapter Male to Male Straight Metal High Density D-SUB
Enlarge image
Metal Adapter Male to Male Straight Metal High Density D-SUBMetal Adapter Male to Male Straight Metal High Density D-SUBMetal Adapter Male to Male Straight Metal High Density D-SUB

Key specifications

Connector Type
D-SUB Adapter&Gender Changers
Pin Count
26 Pin
Gender
Male
Orientation
Straight
Request QuoteFull specifications

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Connector Type
D-SUB Adapter&Gender Changers
Pin Count
26 Pin
Gender
Male
Orientation
Straight
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.

Material

Material
Metal / metal
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C
