Cable Assembly

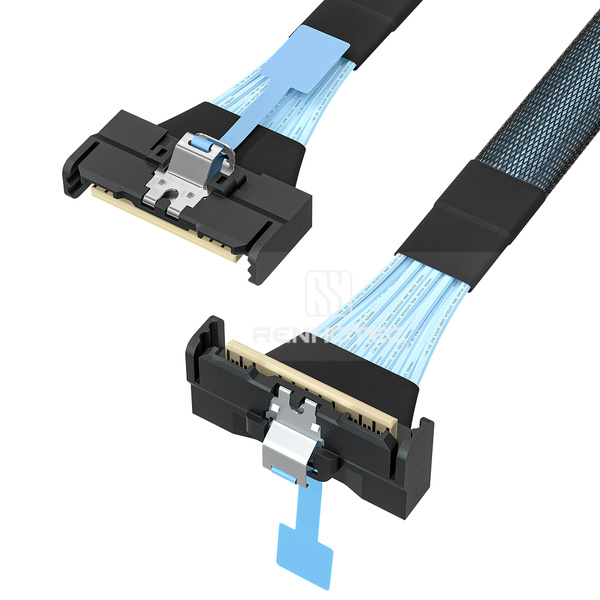

MCIO x8 Cable, Straight to right angle

Part No.RHT-726-0001

Cable assembly from MCIO x8 to MCIO x8. Includes straight connector A and right angle connector B.

  • Connector TypeMCIO
  • Connector AMCIO x8
  • Connector BMCIO x8

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Connection

Connector Type
MCIO
Connector A
MCIO x8
Connector B
MCIO x8
Connector A quantity
1
Connector B quantity
1

Mechanical

Connector A orientation
Straight
Connector B orientation
Right angle

Material

Signal wire gauge
30 AWG

Before you specify

Selection guide

Cable assembly from MCIO x8 to MCIO x8. Includes straight connector A and right angle connector B.

The straight plug and angled plug provide different cable exits at the two ends. Allow clearance for the latch and cable bend at each mating position.

Configuration details

  • Connector A orientation: Straight.
  • Connector B orientation: Right angle.
  • Signal wire gauge: 30 AWG.

Selection information

Provide the mating connector references, required pin assignment and cable length when requesting a quotation.

RHT-726-0001
