Cable Assembly

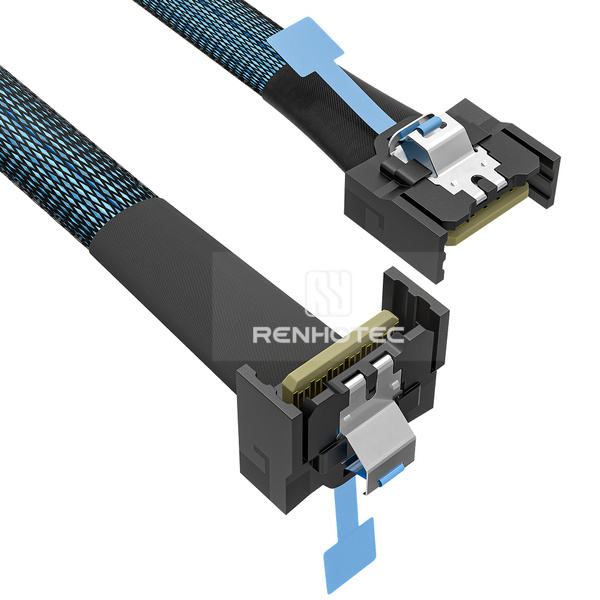

MCIO x4 Cable, Straight to right angle

Public Part No. RHT-726-0005

MCIO x4 Cable, Straight to right angle
Enlarge image

Key specifications

Connector Type
MCIO
Request QuoteFull specifications

Overview

Cable assembly from MCIO x4 to MCIO x4. Includes straight connector A and right angle connector B.

This x4 assembly combines a straight MCIO plug with a right-angle plug. The angled end changes the cable routing immediately behind the mating interface.

Configuration details

  • Connector A orientation: Straight.
  • Connector B orientation: Right angle.

Selection information

Provide the mating connector references, required pin assignment and cable length when requesting a quotation.

Full Specifications

Mechanical

Connector Type
MCIO
Connector A
MCIO x4
Connector B
MCIO x4
Connector A quantity
1
Connector B quantity
1
Connector A orientation
Straight
Connector B orientation
Right angle
