D-SUB Connector

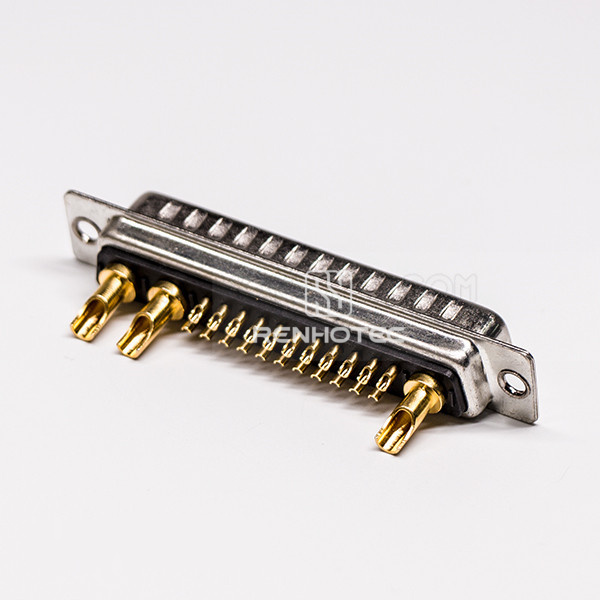

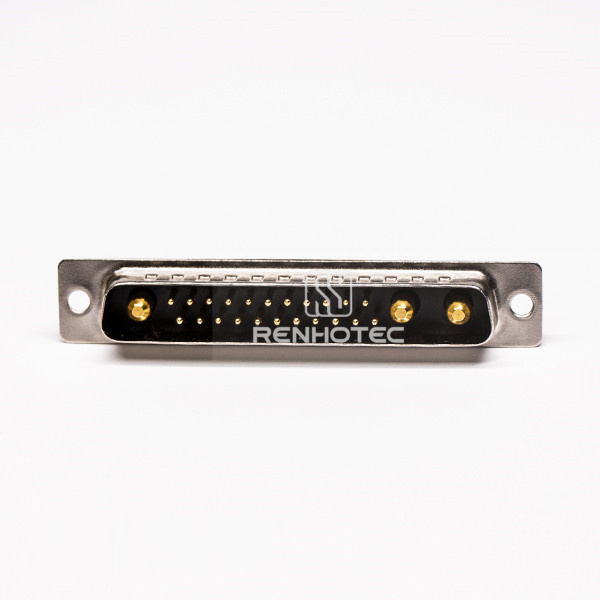

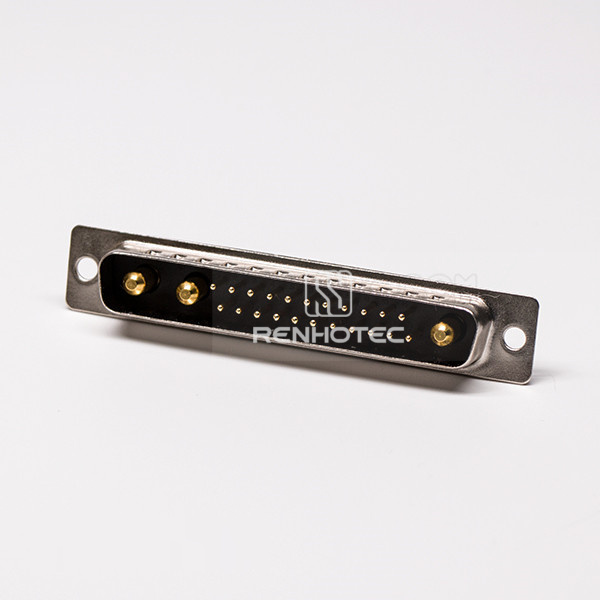

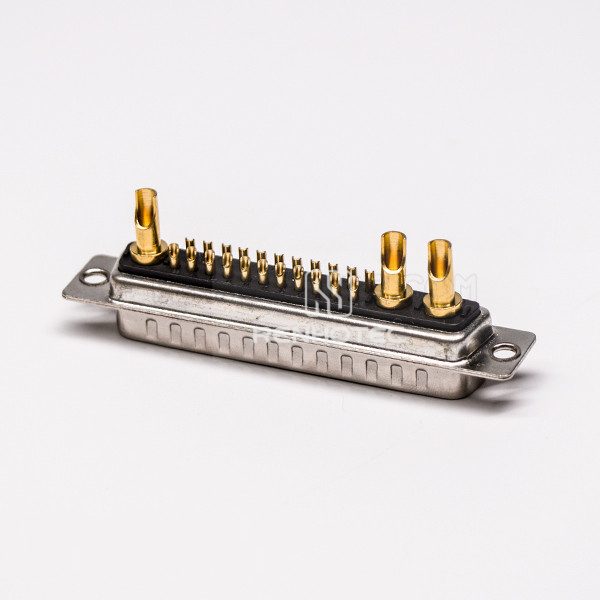

D-SUB 25W3 Connector Male Solder Type 180° High Current for Cable with Staking

Part No.RHT-681-1242
25W3 male D-SUB connector with straight orientation and solder termination.
  • Connector TypeCable Connector / Power D-SUB
  • GenderMale
  • OrientationStraight

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Frequency range
0 -1 GHz
VSWR
1.4 (+0.04/GHz)
Characteristic Impedance
50 Ohms
Dielectric Withstanding Voltage
≥ 1000V R.M.S. at 50Hz
Insulation Resistance
≥ 5000 megaohms at 500 V D.C.
Contact Resistance
≤5 milliohms

Connection

Connector Type
Cable Connector / Power D-SUB

Mechanical

Gender
Male
Orientation
Straight
Termination Type
Solder Type / Staking Type
Contact configuration
25w3 / 25W3
Mechanical operations
up to 500

Environmental

Operating Temperature
-55 to 155 °C

Before you specify

Selection guide

25W3 male D-SUB connector with straight orientation and solder termination. Termination: staking type.

RHT-681-1242
