Female Header Connector

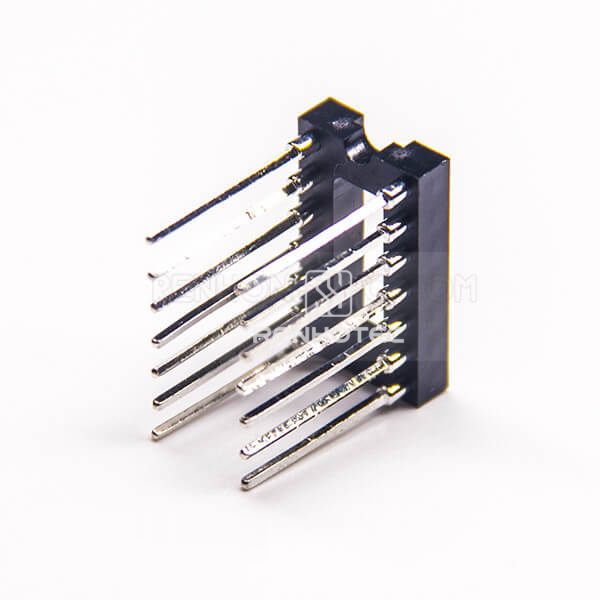

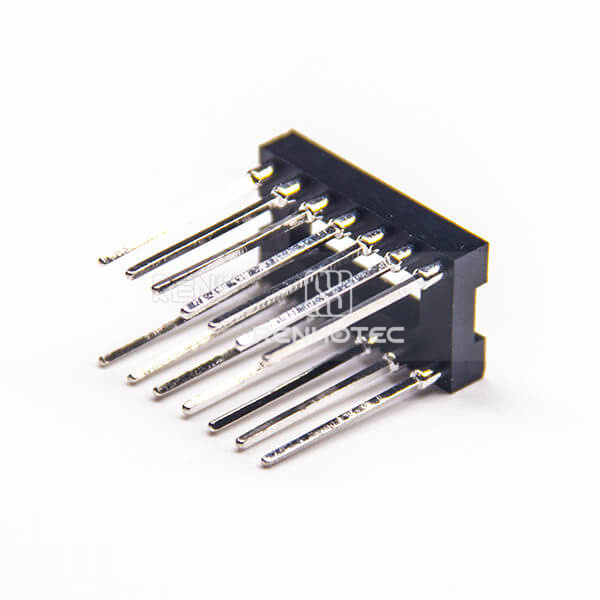

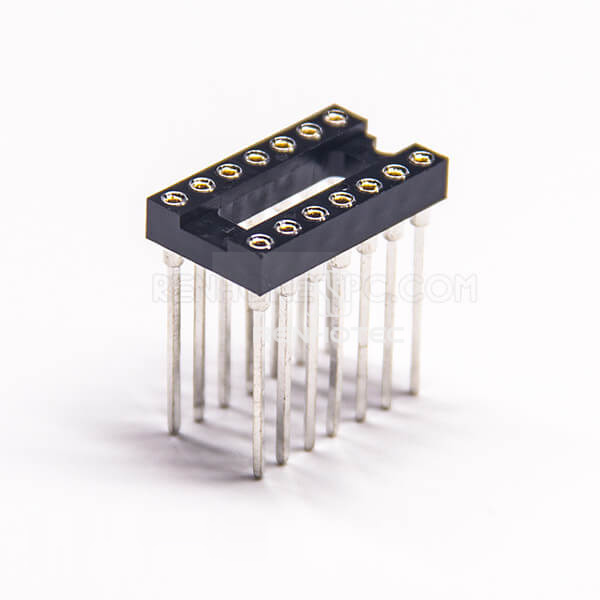

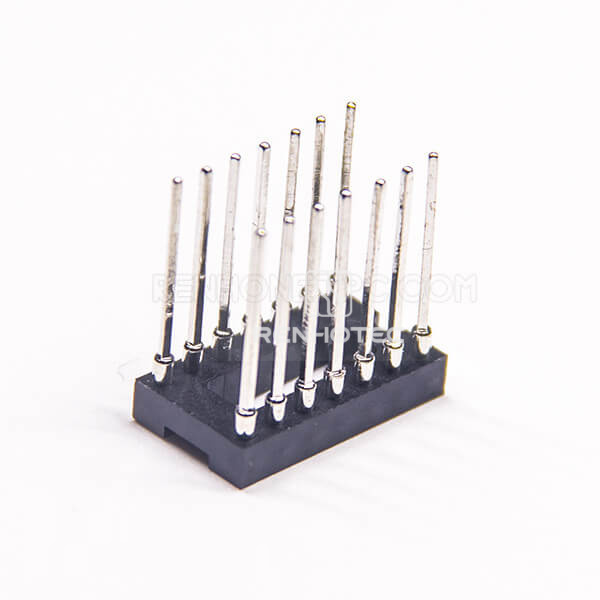

Long Pin Female Headers Circular Holes Stright IC Socket 2.54mm Gap

Public Part No. RHT-604-2033

Long Pin Female Headers Circular Holes Stright IC Socket 2.54mm Gap
Enlarge image
Long Pin Female Headers Circular Holes Stright IC Socket 2.54mm GapLong Pin Female Headers Circular Holes Stright IC Socket 2.54mm GapLong Pin Female Headers Circular Holes Stright IC Socket 2.54mm GapLong Pin Female Headers Circular Holes Stright IC Socket 2.54mm Gap

Key specifications

Pin Count
14 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Request QuoteFull specifications

Overview

2.54 mm pitch 14-contact dual-row straight female header for DIP mounting. Long-pin version with circular holes. Dimension H: 3 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
14 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Pitch
2.54 mm
Number of Rows
Dual Row
Construction detail
Circular / Circular Holes
Dimension H
3 mm

Material

Contact Plating
Tin Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
