D-SUB Connector

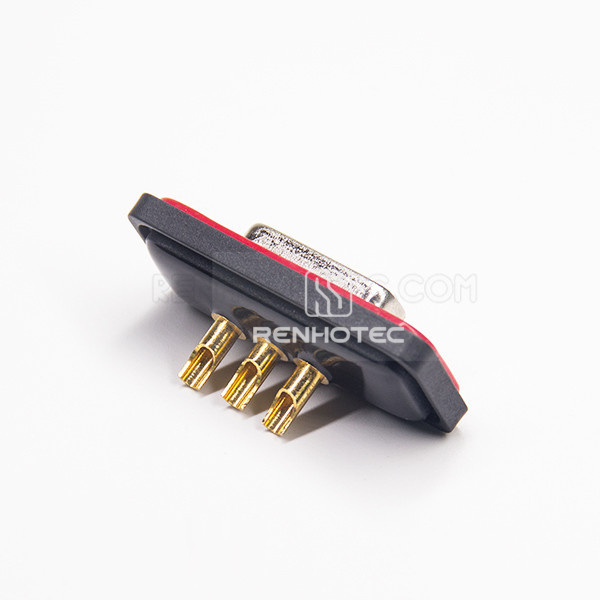

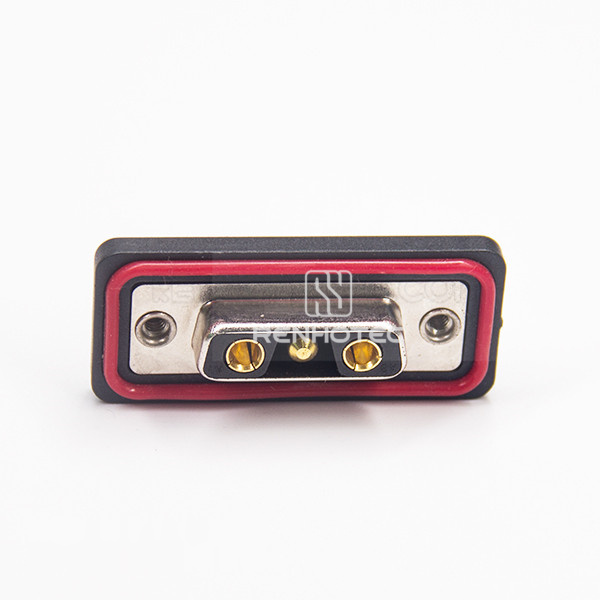

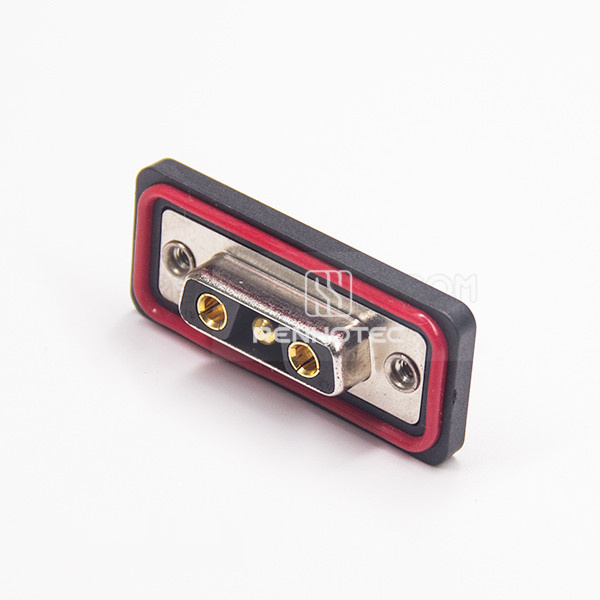

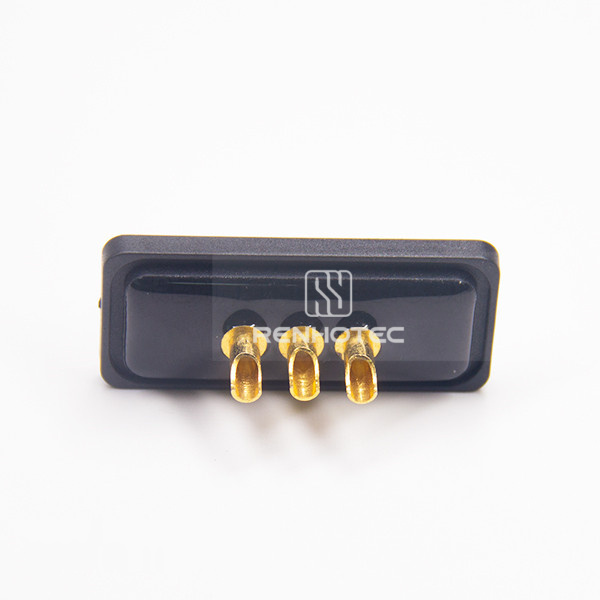

IP67 D-SUB 3V3 Female Contact solder type Connectors

Public Part No. RHT-681-1245

IP67 D-SUB 3V3 Female Contact solder type Connectors
Enlarge image
IP67 D-SUB 3V3 Female Contact solder type ConnectorsIP67 D-SUB 3V3 Female Contact solder type ConnectorsIP67 D-SUB 3V3 Female Contact solder type ConnectorsIP67 D-SUB 3V3 Female Contact solder type Connectors

Key specifications

Gender
Female
Termination Type
Solder Type
Request QuoteFull specifications

Overview

3V3 female D-SUB connector with solder termination. An interfacial seal is included.

Full Specifications

Electrical

Current Rating
7.5A
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V
Working voltage signal
125 V
Working Voltage
1000V

Mechanical

Gender
Female
Termination Type
Solder Type
Contact configuration
IP67 d sub 3V3 Female Contact solder type Connectors
Seal construction
Interfacial seal
Extraction force
30N
Insertion force
30N

Environmental

Operating Temperature
-25 to 125 °C
