D-SUB Connector

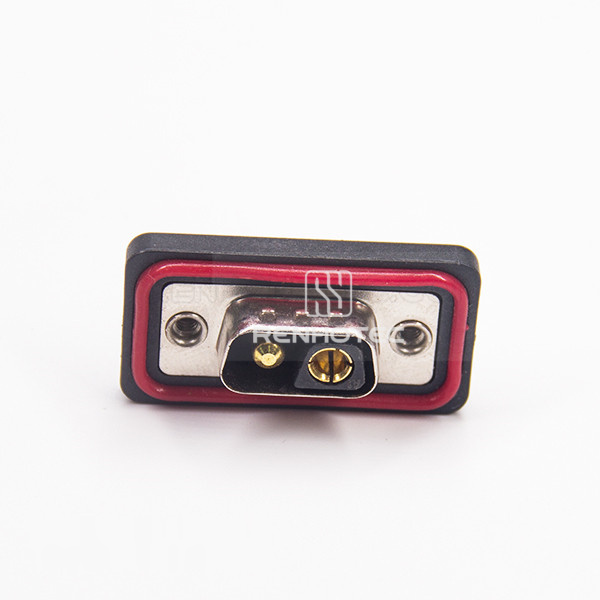

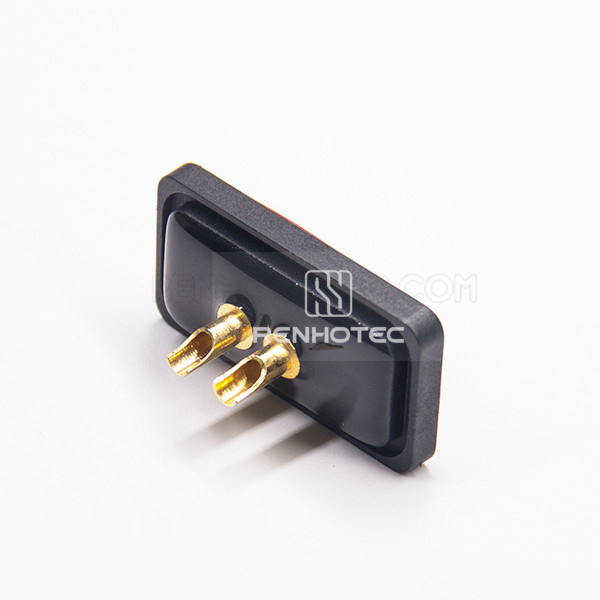

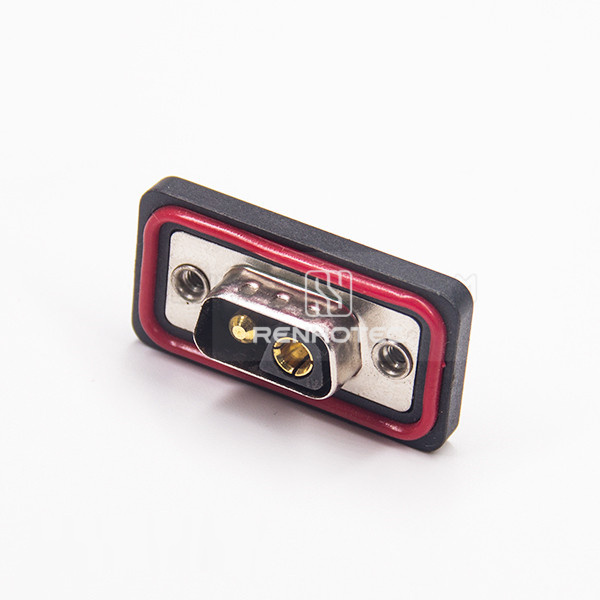

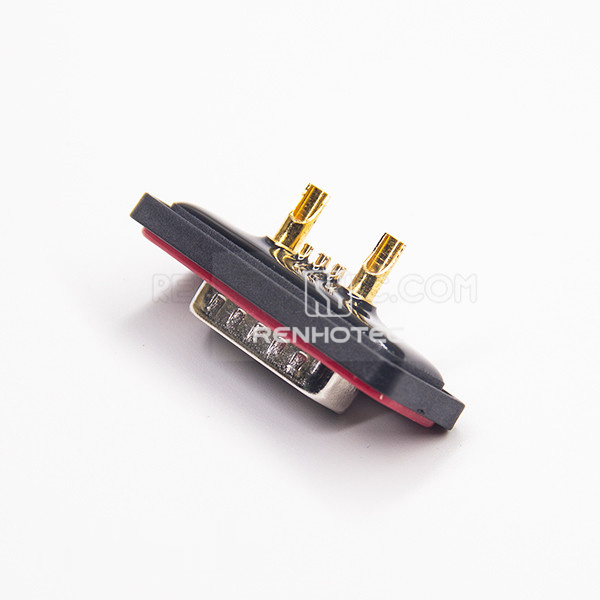

IP67 D-SUB 2V2 Male D-SUB Contact solder type Connectors

IP67 D-SUB 2V2 Male D-SUB Contact solder type Connectors
Enlarge image
IP67 D-SUB 2V2 Male D-SUB Contact solder type ConnectorsIP67 D-SUB 2V2 Male D-SUB Contact solder type ConnectorsIP67 D-SUB 2V2 Male D-SUB Contact solder type ConnectorsIP67 D-SUB 2V2 Male D-SUB Contact solder type Connectors

Key specifications

Gender
Male
Orientation
Straight
Termination Type
Solder Type
Request QuoteFull specifications

Overview

2V2 male D-SUB connector with straight orientation and solder termination. It uses machined contacts. An interfacial seal is included.

Full Specifications

Electrical

Current Rating
7.5A
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V
Working voltage signal
125 V
Working Voltage
1000V

Mechanical

Gender
Male
Orientation
Straight
Termination Type
Solder Type
Contact configuration
2v2 / 2V2
Mounting detail
Cable mount
Contact construction
Machined contacts
Seal construction
Interfacial seal
Extraction force
30N
Insertion force
30N

Environmental

Waterproof Rating
IP67
Operating Temperature
-25 to 125 °C
