D-SUB Connector

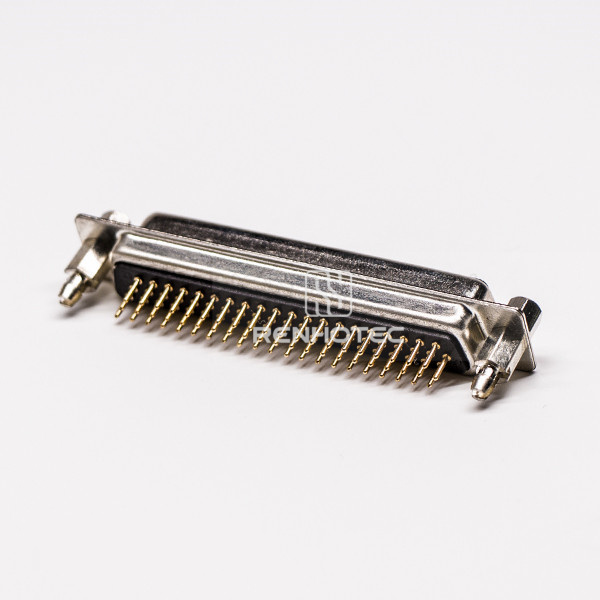

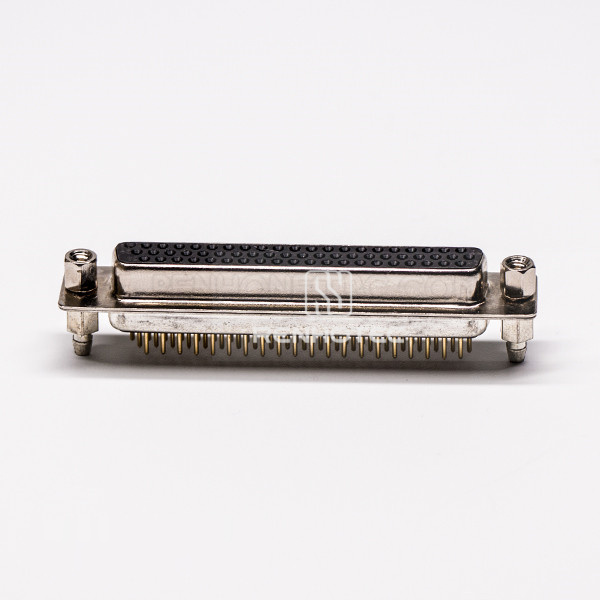

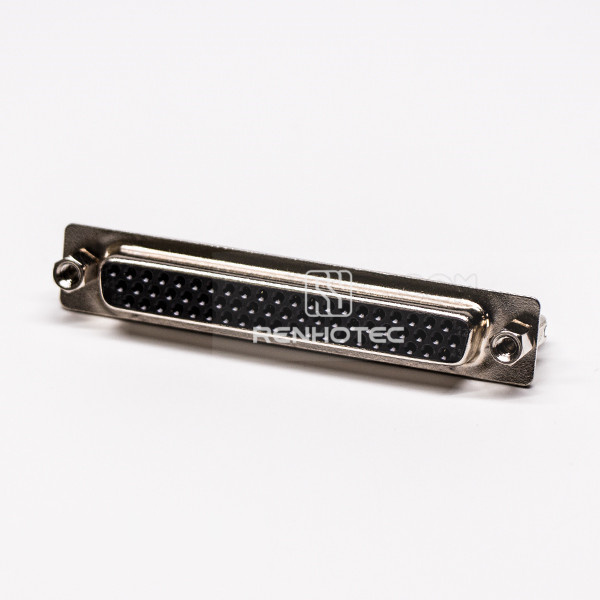

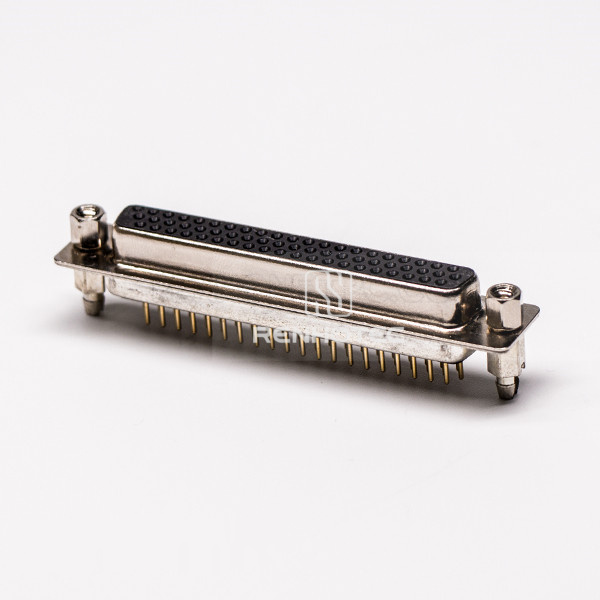

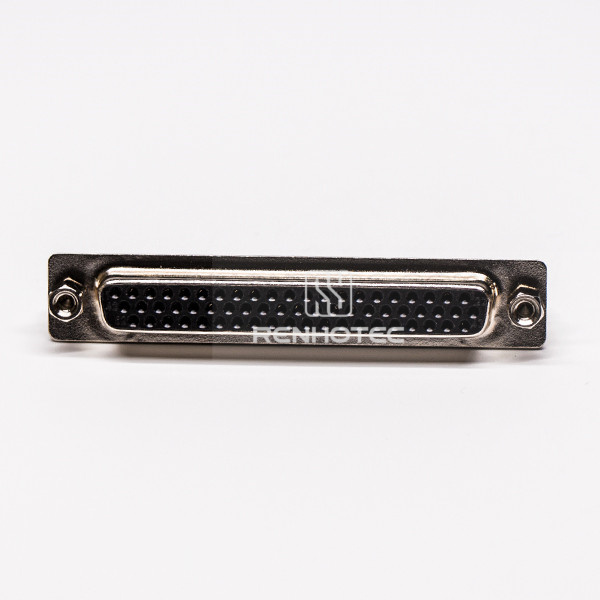

High Density D-SUB 62 Pin Female Straight Staking type Through Hole for PCB Mount connector

Public Part No. RHT-681-1215

High Density D-SUB 62 Pin Female Straight Staking type Through Hole for PCB Mount connector
Enlarge image
High Density D-SUB 62 Pin Female Straight Staking type Through Hole for PCB Mount connectorHigh Density D-SUB 62 Pin Female Straight Staking type Through Hole for PCB Mount connectorHigh Density D-SUB 62 Pin Female Straight Staking type Through Hole for PCB Mount connectorHigh Density D-SUB 62 Pin Female Straight Staking type Through Hole for PCB Mount connectorHigh Density D-SUB 62 Pin Female Straight Staking type Through Hole for PCB Mount connectorHigh Density D-SUB 62 Pin Female Straight Staking type Through Hole for PCB Mount connector

Key specifications

Connector Type
D-SUB
Pin Count
62 Pin
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Request QuoteFull specifications

Overview

62-pin female high-density D-SUB connector with straight orientation and through-hole PCB mounting. Termination: staking type. Colour: black.

Full Specifications

Electrical

Current Rating
3A
Voltage Rating
60V
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V

Mechanical

Connector Type
D-SUB
Pin Count
62 Pin
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Shielding
Shielded
Extraction force
<50 N
Insertion force
<50 N
Mating cycles
50

Material

Color
Black
Shell construction
Metal shell

Environmental

Operating Temperature
-55 to 105 °C
