HDMI to USB Cable Male to Male

Public Part No. HDMI

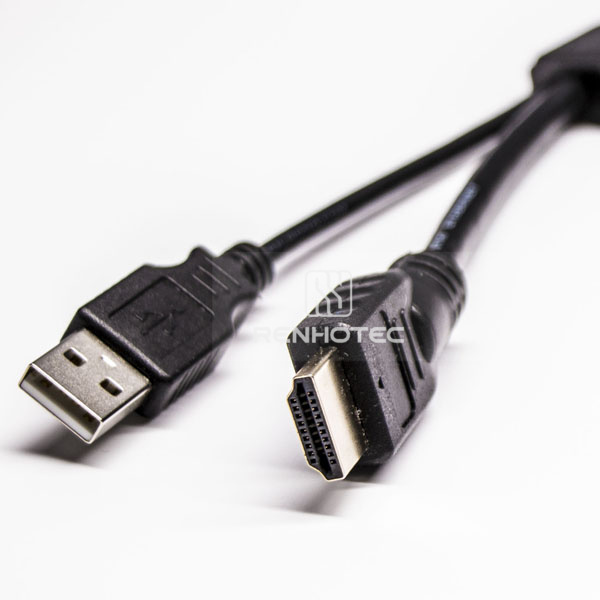

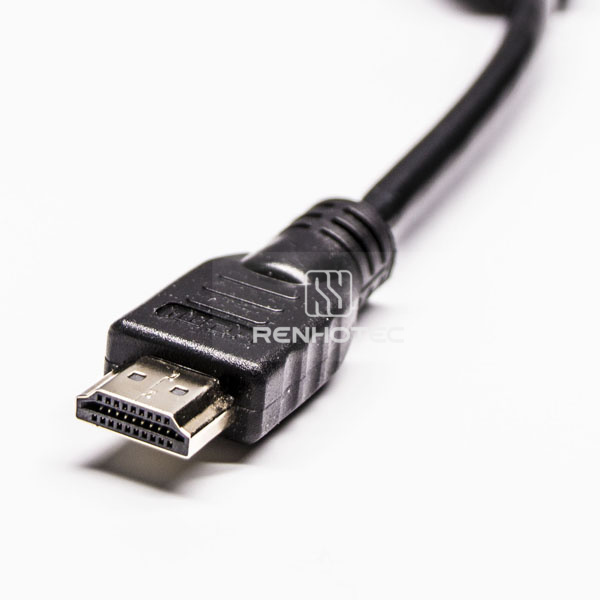

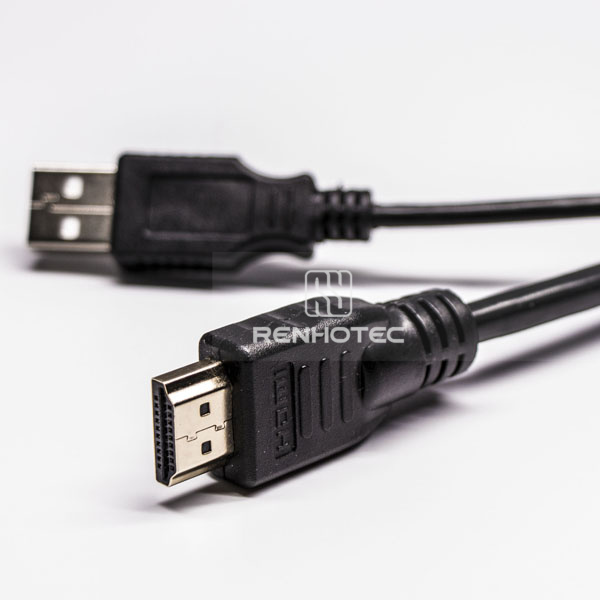

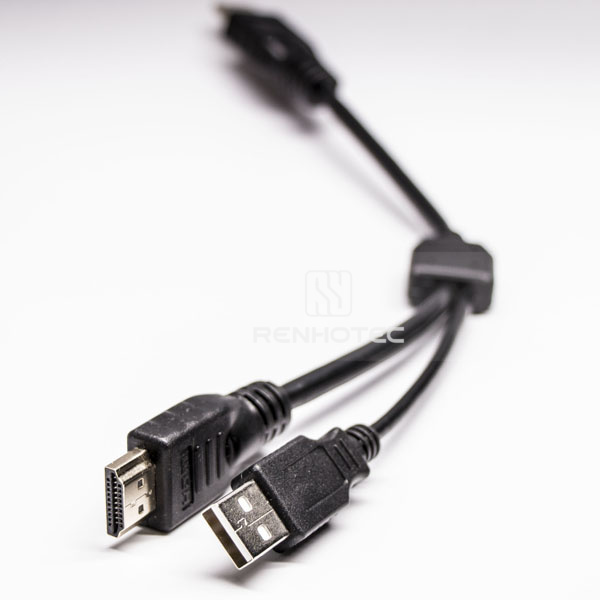

HDMI to USB Cable Male to Male
Enlarge image
HDMI to USB Cable Male to MaleHDMI to USB Cable Male to MaleHDMI to USB Cable Male to MaleHDMI to USB Cable Male to Male

Key specifications

Connector Type
Type A
Gender
Male
Orientation
Straight
Pin Count
4 Pin
Request QuoteFull specifications

Overview

Male-to-male cable with USB and HDMI interfaces. Confirm the wiring and intended signal function before selection; the connector names alone do not establish signal conversion.

Full Specifications

Electrical

Current Rating
1A max.
Voltage Rating
30V AC RMS
Data rate
480 Mbps
Contact Resistance
30 milliohms max
Insulation Resistance
1000 megohms min
Dielectric Withstanding Voltage
500 V DC/1min

Mechanical

Connector Type
Type A
Pin Count
4 Pin
Gender
Male
Orientation
Straight
Mounting detail
for cable
Connector interfaces
USB/HDMI cable
Connection feature
Hot plugging
Mating force
3.57 kgf max
Unmating Force
1.0 kgf min

Environmental

Operating Temperature
-40 to 85 °C
