USB Connector

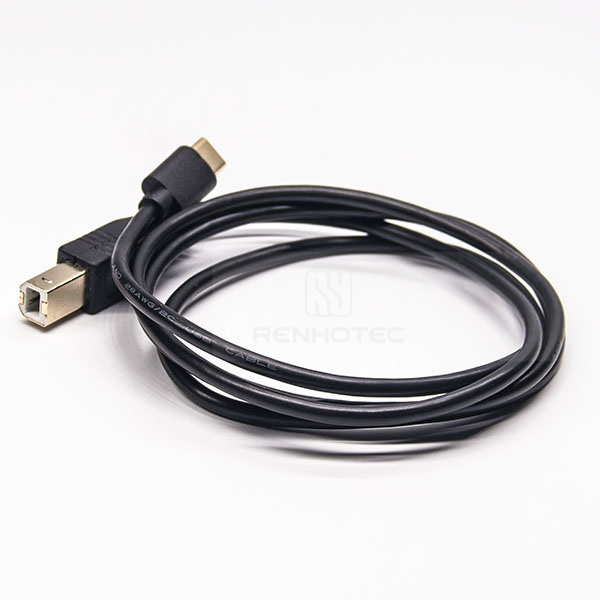

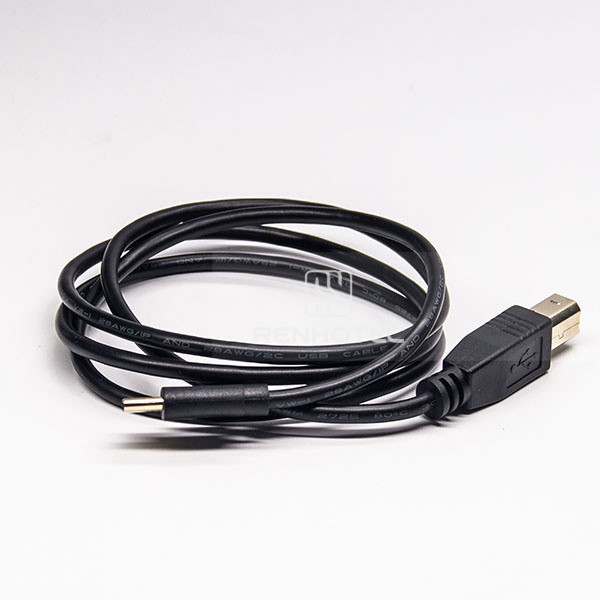

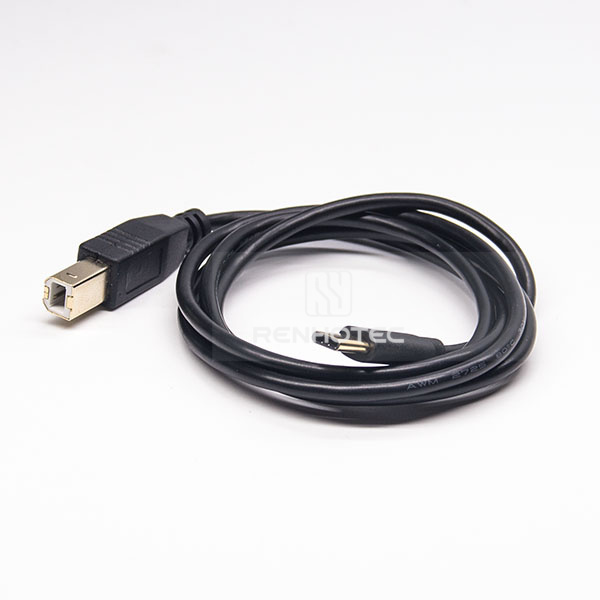

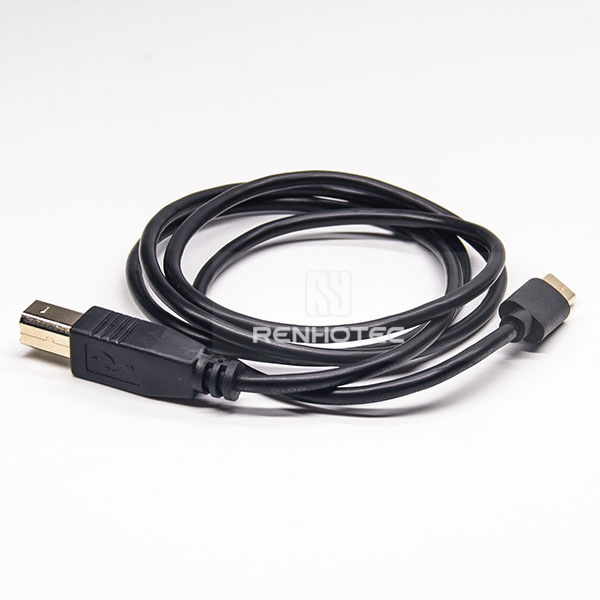

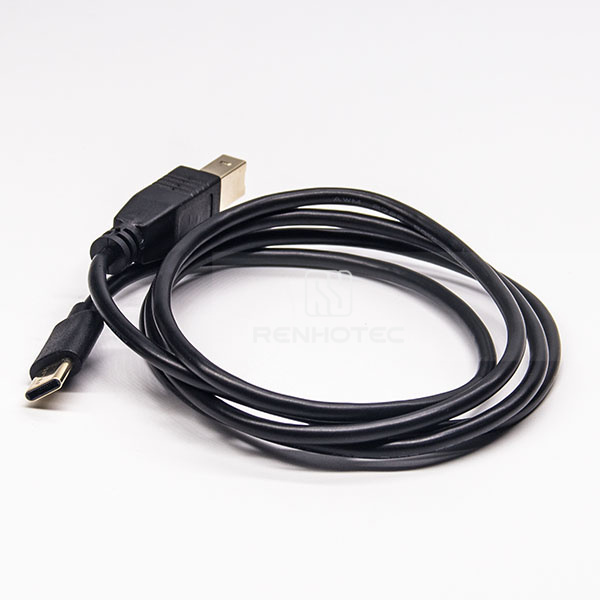

Gold Plated Type C to Type B Cable Printer Cable 1m

Public Part No. RHT-605-1510

Gold Plated Type C to Type B Cable Printer Cable 1m
Enlarge image
Gold Plated Type C to Type B Cable Printer Cable 1mGold Plated Type C to Type B Cable Printer Cable 1mGold Plated Type C to Type B Cable Printer Cable 1mGold Plated Type C to Type B Cable Printer Cable 1mGold Plated Type C to Type B Cable Printer Cable 1m

Key specifications

Connector Type
Type B / Type C
Gender
Female
Orientation
Straight
Pin Count
4 Pin
Request QuoteFull specifications

Overview

1 m cable with USB Type-C and Type-B interfaces. Confirm the gender at each end and the wiring against the intended connection.

Full Specifications

Electrical

Current Rating
1.5A
Data rate
Up to 5 Gb/s
Dielectric Withstanding Voltage
100V R.M.S
Insulation Resistance
1000 Megohms Min

Mechanical

Connector Type
Type B / Type C
Pin Count
4 Pin
Gender
Female
Orientation
Straight
Shielding
Shielded
Mounting detail
for cable
Mating Force
3.57kg Max
Unmating Force
1.02kg Min

Environmental

Operating Temperature
-45 to 85 °C

Connector requirement
