FPC / FFC Connector

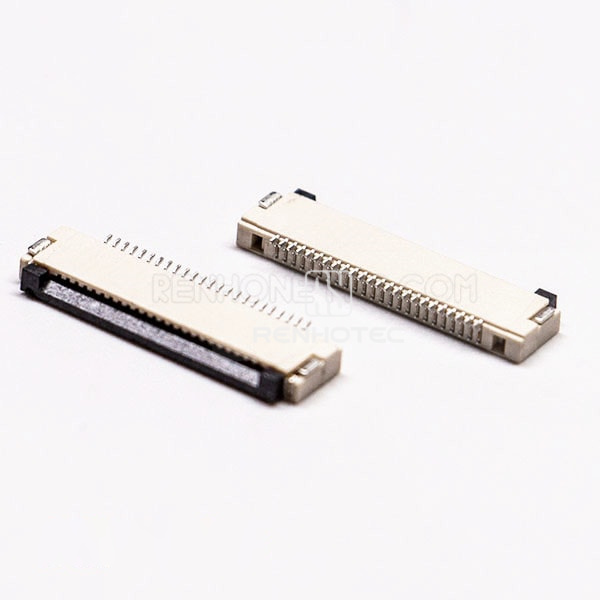

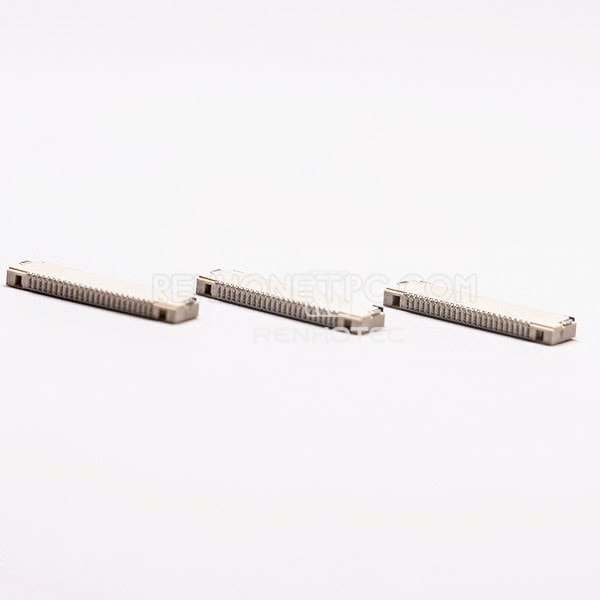

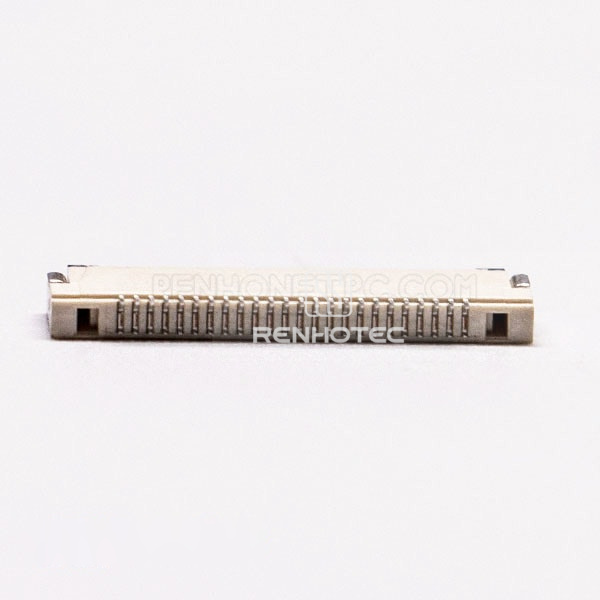

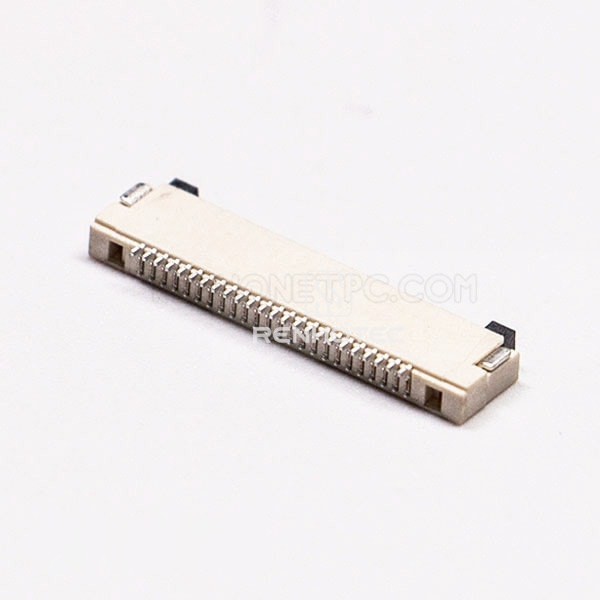

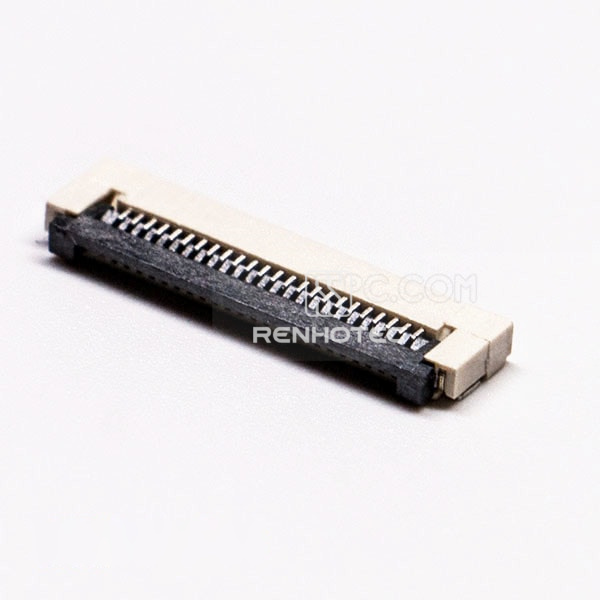

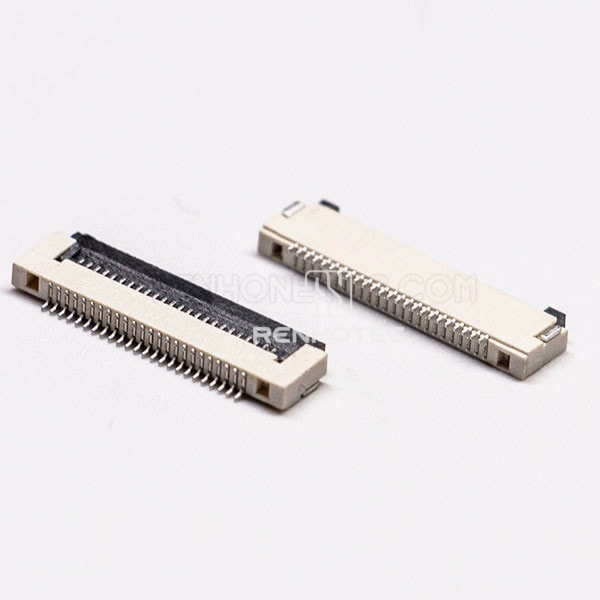

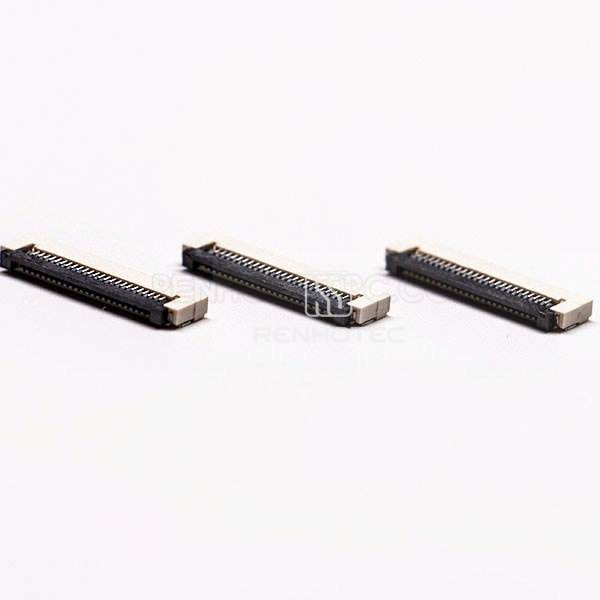

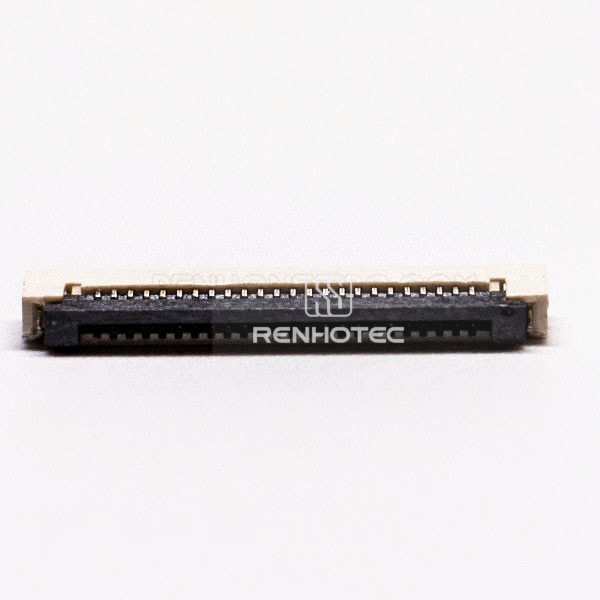

FPC FFC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock

Public Part No. RHT-616-0120

FPC FFC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
Enlarge image
FPC FFC Socket 0.5mm Horizontal Type and Dual Contact Style without LockFPC FFC Socket 0.5mm Horizontal Type and Dual Contact Style without LockFPC FFC Socket 0.5mm Horizontal Type and Dual Contact Style without LockFPC FFC Socket 0.5mm Horizontal Type and Dual Contact Style without LockFPC FFC Socket 0.5mm Horizontal Type and Dual Contact Style without LockFPC FFC Socket 0.5mm Horizontal Type and Dual Contact Style without LockFPC FFC Socket 0.5mm Horizontal Type and Dual Contact Style without LockFPC FFC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock

Key specifications

Connector Type
FFC/FPC Connector
Pin Count
24 Pin
Mounting Type
PCB Mount
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Mechanical

Connector Type
FFC/FPC Connector
Pin Count
24 Pin
Mounting Type
PCB Mount
Pitch notation
0.5 Pitch
Dimension H notation
2.0H
Construction detail
Dual Contact / Horizontal Type
Locking detail
Without lock
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C
