FPC / FFC Connector

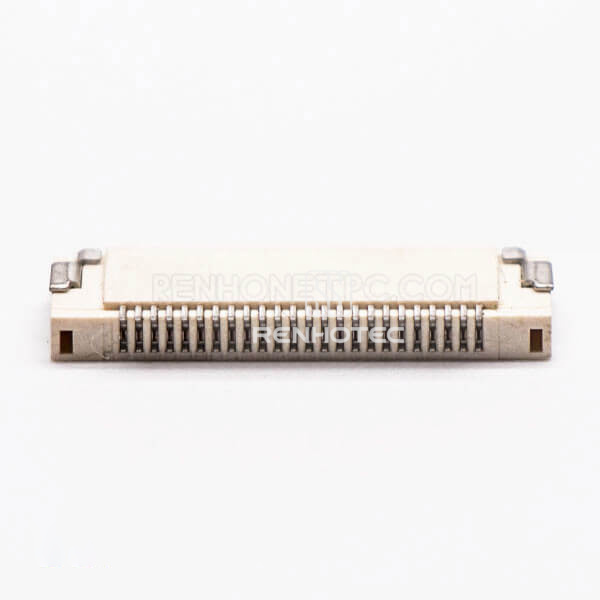

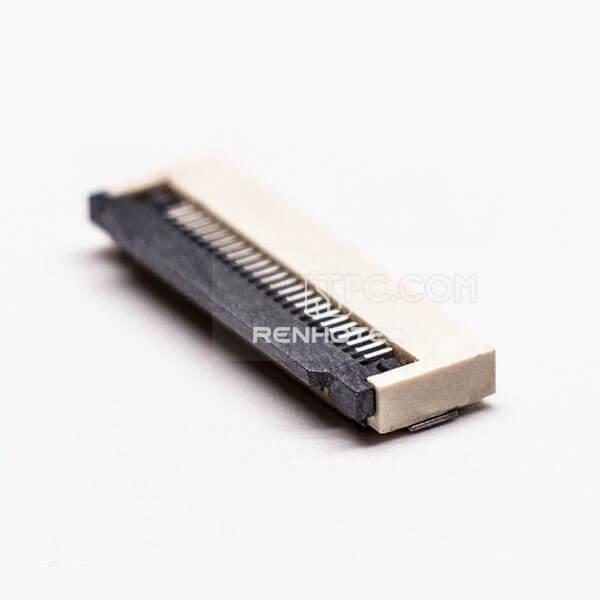

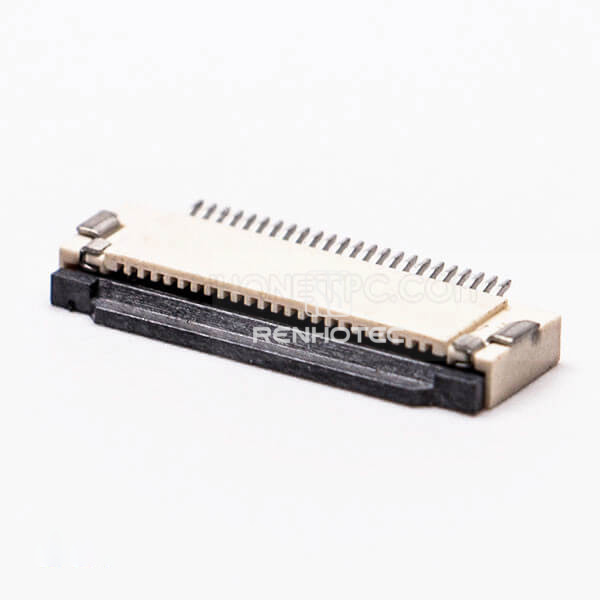

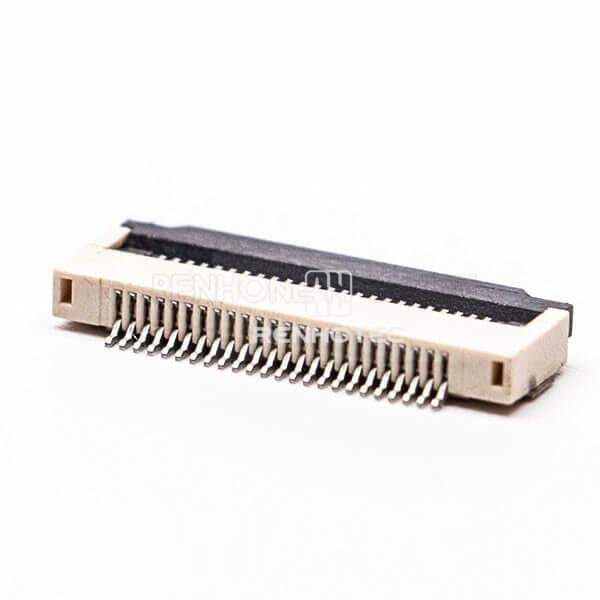

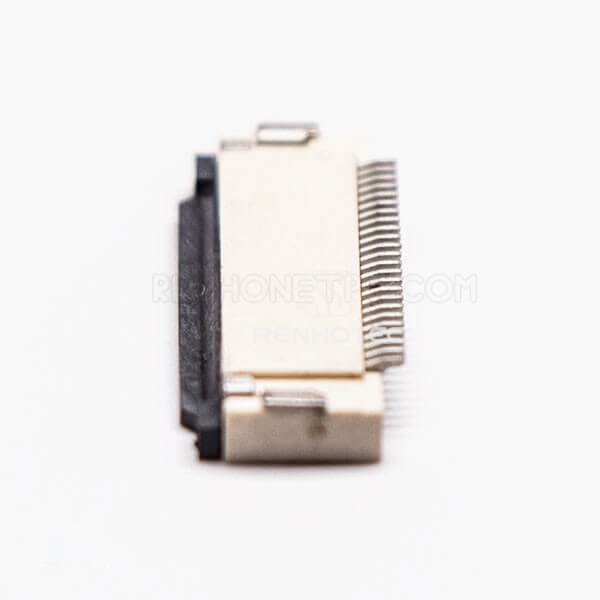

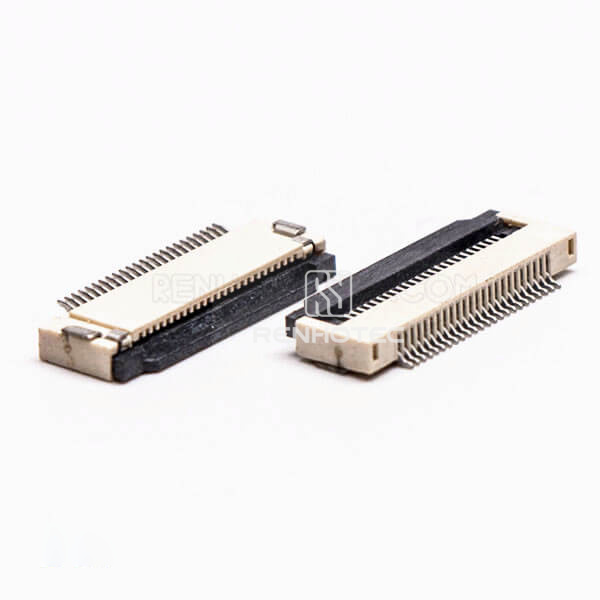

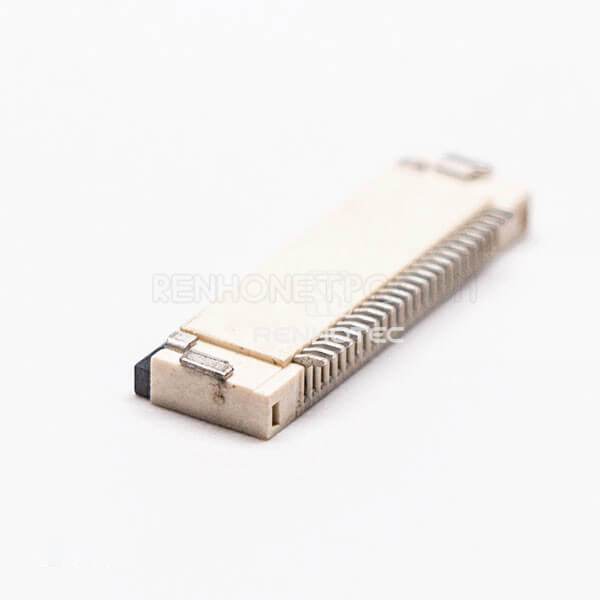

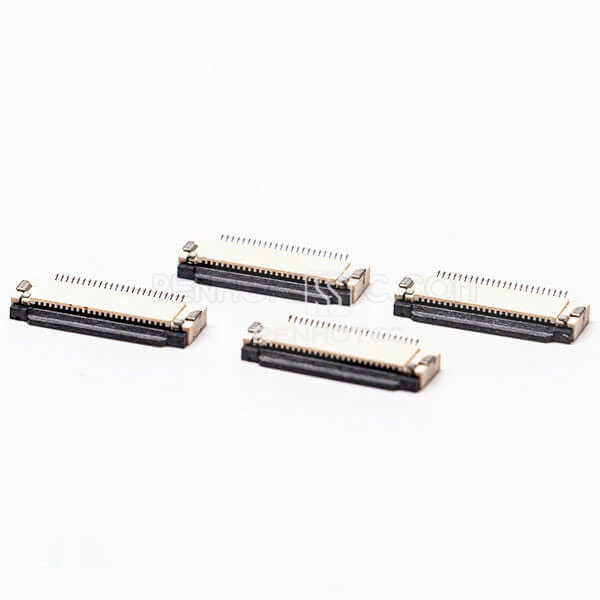

FPC Connectors 0.5MM Pitch 24 Pin Front Flip Bottom Contact Style 2.0H

Public Part No. RHT-616-0111

FPC Connectors 0.5MM Pitch 24 Pin Front Flip Bottom Contact Style 2.0H
Enlarge image
FPC Connectors 0.5MM Pitch 24 Pin Front Flip Bottom Contact Style 2.0HFPC Connectors 0.5MM Pitch 24 Pin Front Flip Bottom Contact Style 2.0HFPC Connectors 0.5MM Pitch 24 Pin Front Flip Bottom Contact Style 2.0HFPC Connectors 0.5MM Pitch 24 Pin Front Flip Bottom Contact Style 2.0HFPC Connectors 0.5MM Pitch 24 Pin Front Flip Bottom Contact Style 2.0HFPC Connectors 0.5MM Pitch 24 Pin Front Flip Bottom Contact Style 2.0HFPC Connectors 0.5MM Pitch 24 Pin Front Flip Bottom Contact Style 2.0HFPC Connectors 0.5MM Pitch 24 Pin Front Flip Bottom Contact Style 2.0H

Key specifications

Connector Type
FFC/FPC Connector / Socket
Pin Count
24 Pin
Orientation
Straight
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Mechanical

Connector Type
FFC/FPC Connector / Socket
Pin Count
24 Pin
Orientation
Straight
Pitch
0.5 mm
Pitch notation
0.5 Pitch
Dimension H notation
2.0H
Construction detail
Bottom Contact / Front Flip
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C
