FPC / FFC Connector

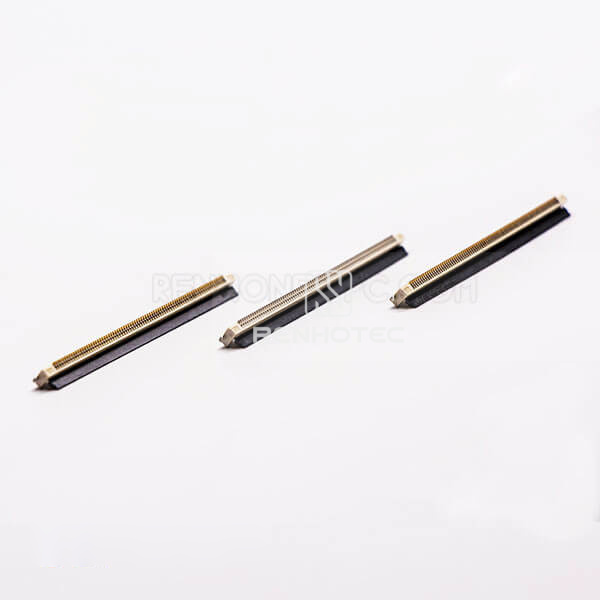

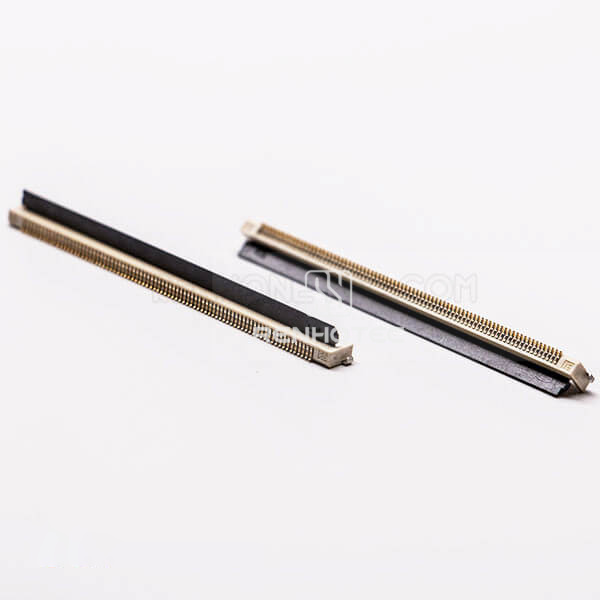

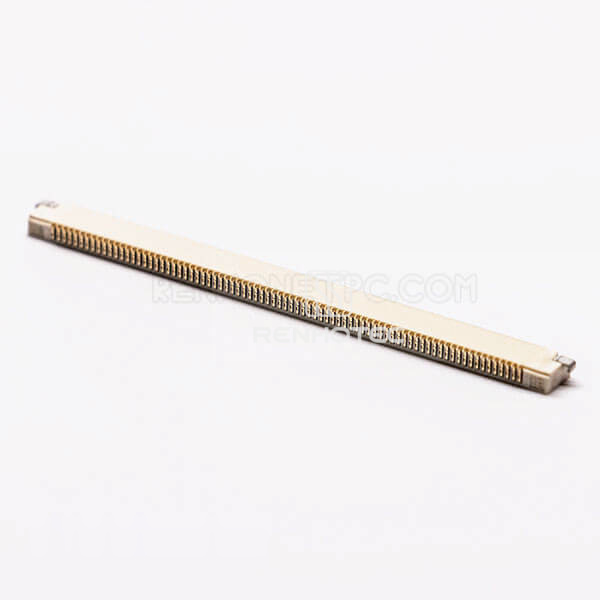

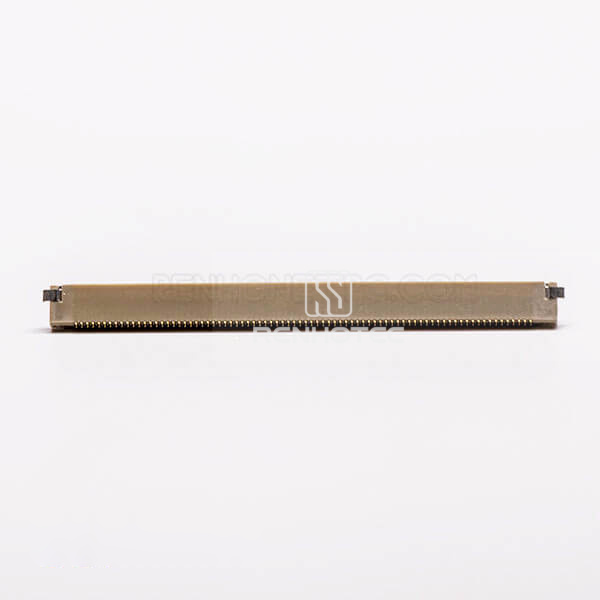

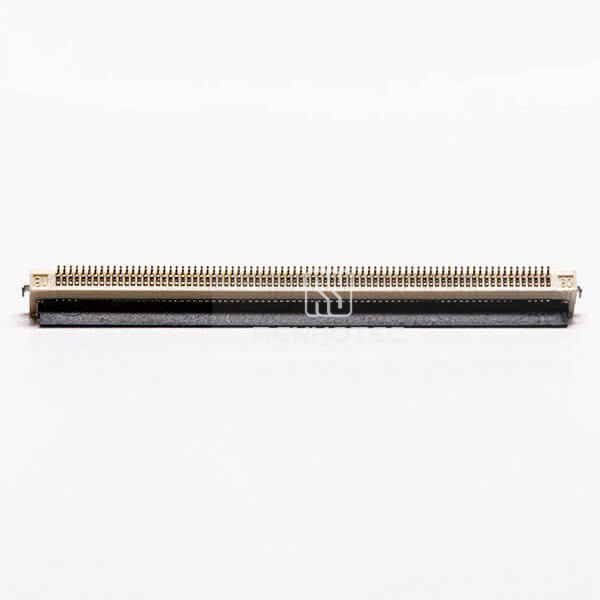

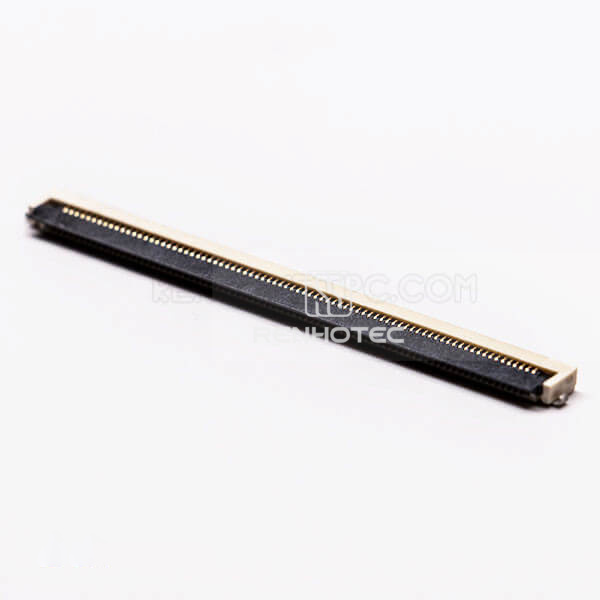

FPC Connector Socket 1.0PH Bottom Contact Style 80pin Slider Type H1.2

Public Part No. RHT-616-0512

FPC Connector Socket 1.0PH Bottom Contact Style 80pin Slider Type H1.2
Enlarge image
FPC Connector Socket 1.0PH Bottom Contact Style 80pin Slider Type H1.2FPC Connector Socket 1.0PH Bottom Contact Style 80pin Slider Type H1.2FPC Connector Socket 1.0PH Bottom Contact Style 80pin Slider Type H1.2FPC Connector Socket 1.0PH Bottom Contact Style 80pin Slider Type H1.2FPC Connector Socket 1.0PH Bottom Contact Style 80pin Slider Type H1.2FPC Connector Socket 1.0PH Bottom Contact Style 80pin Slider Type H1.2

Key specifications

Connector Type
FFC/FPC Connector
Pin Count
80 Pin
Mounting Type
PCB Mount
Termination Type
Solder Type
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Mechanical

Connector Type
FFC/FPC Connector
Pin Count
80 Pin
Mounting Type
PCB Mount
Termination Type
Solder Type
Pitch notation
1.0 Pitch / 1.0PH
Construction detail
Bottom Contact / Slider Type
Dimension H notation
H1.2
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C
