FPC / FFC Connector

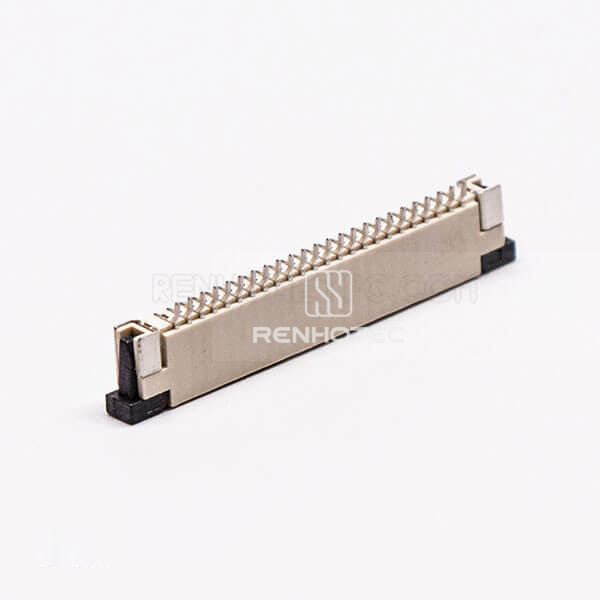

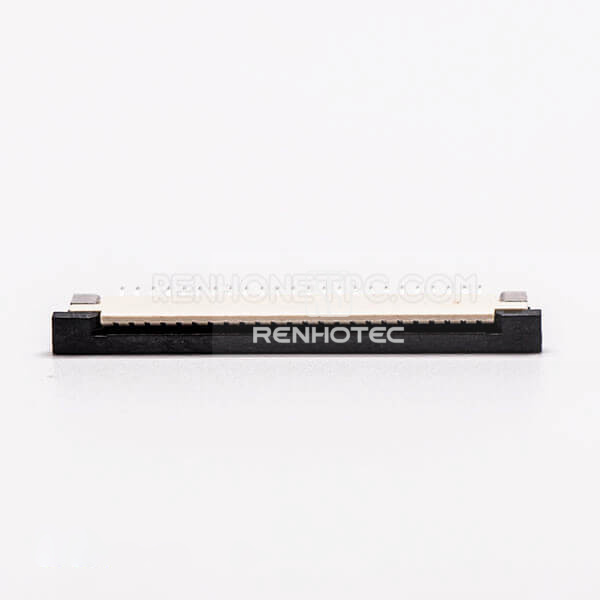

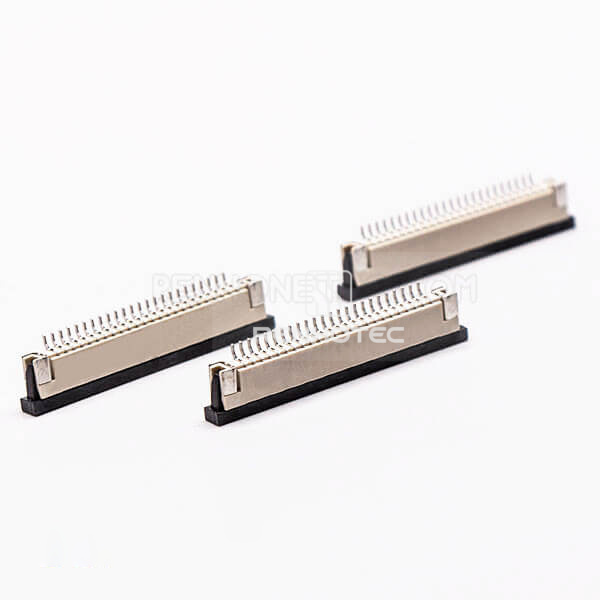

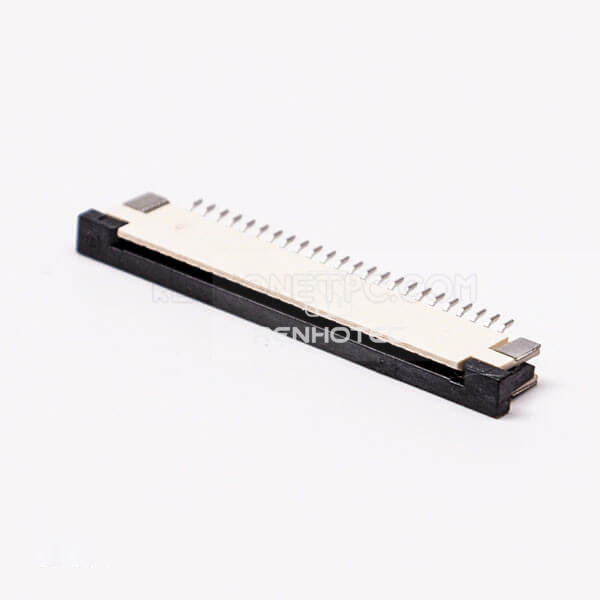

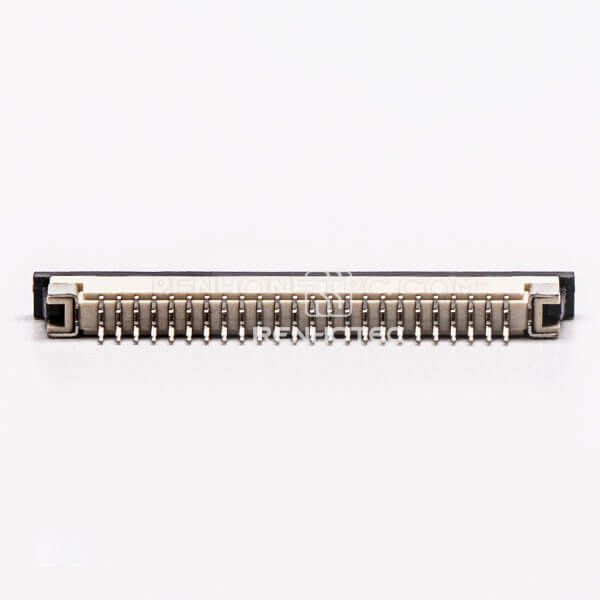

FPC Connector Jack 1.0PH 24 Pin Bottom Contact Style Slider Type for Surface Mount 2.5H

Part No.RHT-616-0510
24-pin FPC socket with bottom contacts and a slider mechanism. Surface-mount design with solder termination.
  • Connector TypeFFC/FPC Connector
  • Pin Count24 Pin
  • GenderFemale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Connection

Connector Type
FFC/FPC Connector

Mechanical

Pin Count
24 Pin
Gender
Female
Mounting Type
PCB Mount
Termination Type
Solder Type
Pitch notation
1.0 Pitch / 1.0PH
Dimension H notation
2.5H
Construction detail
Bottom Contact / Slider Type
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C

Before you specify

Selection guide

24-pin FPC socket with bottom contacts and a slider mechanism. Surface-mount design with solder termination.

RHT-616-0510
