FPC / FFC Connector

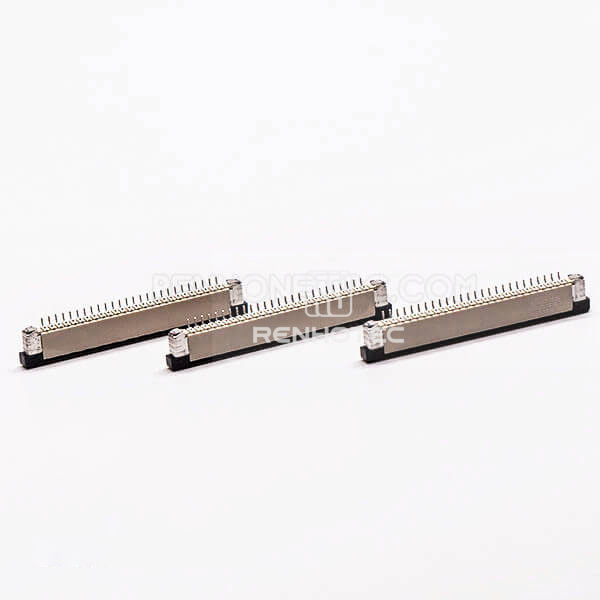

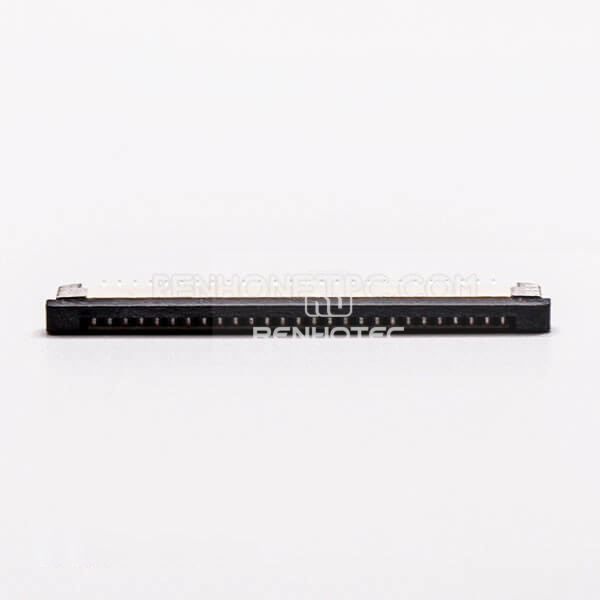

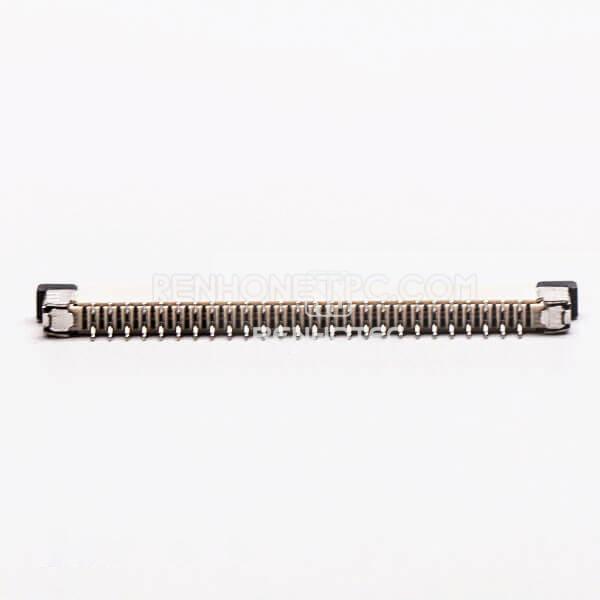

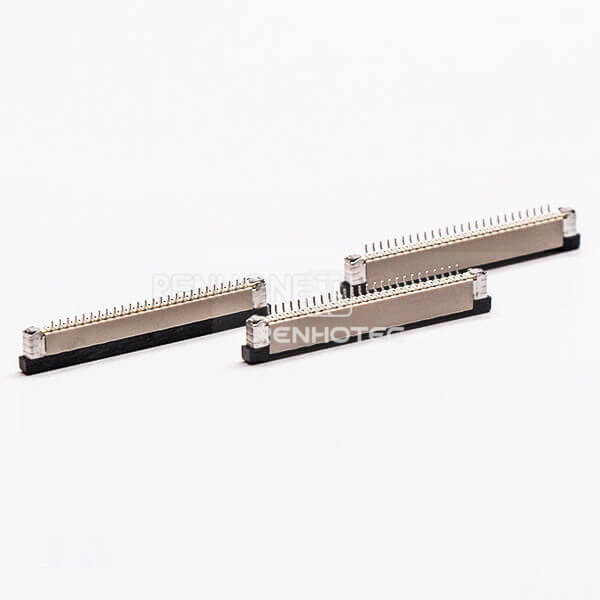

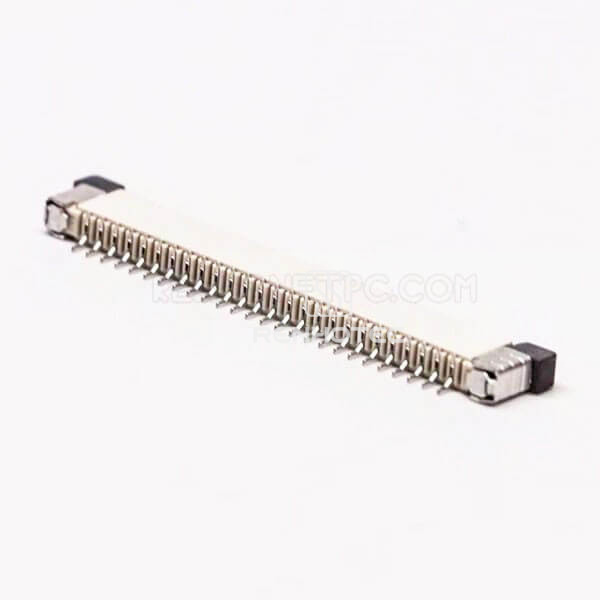

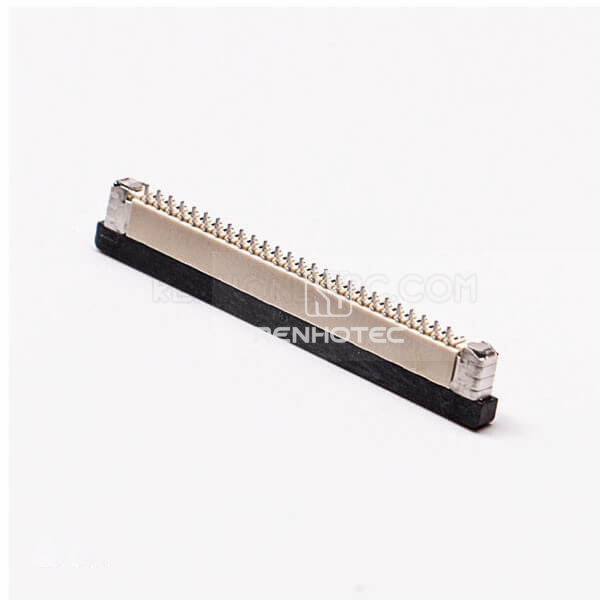

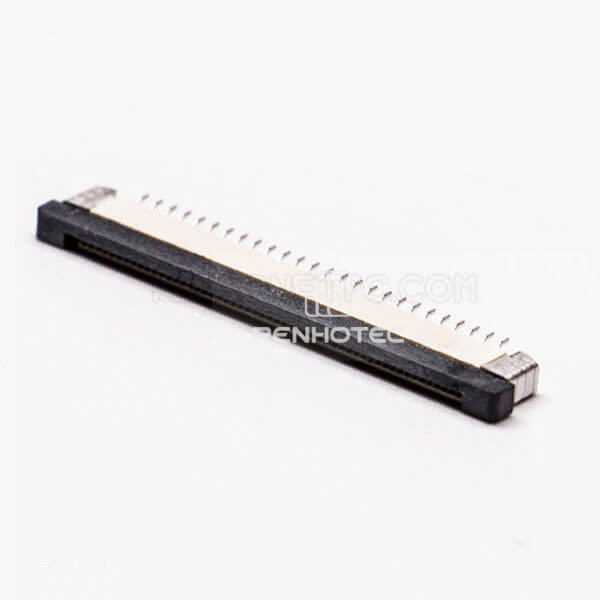

FPC Connector 1.0PH Top Contact Style 2.0H 26pin with Slider Type Socket

Part No.RHT-616-0511
26-pin FPC socket with top contacts and a slider mechanism. PCB mounting with solder termination.
  • Connector TypeFFC/FPC Connector
  • Pin Count26 Pin
  • Mounting TypePCB Mount

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Connection

Connector Type
FFC/FPC Connector

Mechanical

Pin Count
26 Pin
Mounting Type
PCB Mount
Termination Type
Solder Type
Pitch notation
1.0 Pitch / 1.0PH
Dimension H notation
2.0H
Construction detail
Slider Type / Top Contact
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C

Before you specify

Selection guide

26-pin FPC socket with top contacts and a slider mechanism. PCB mounting with solder termination.

RHT-616-0511
