FPC / FFC Connector

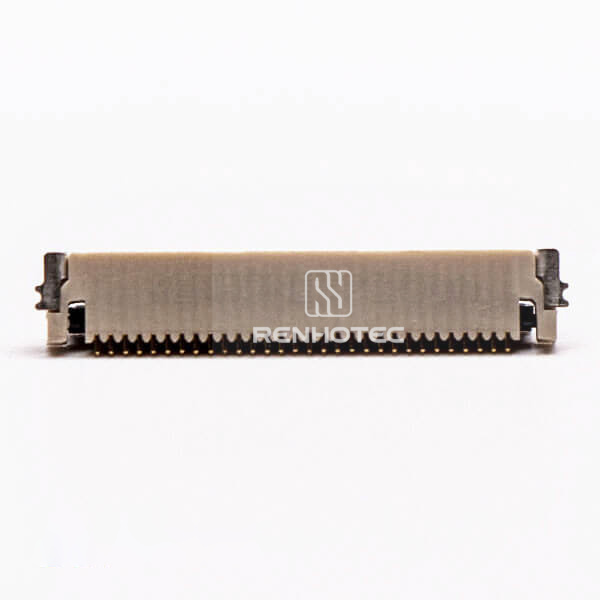

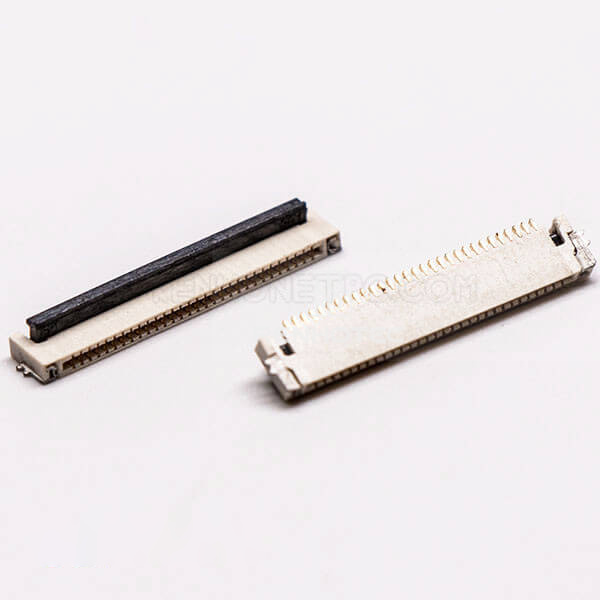

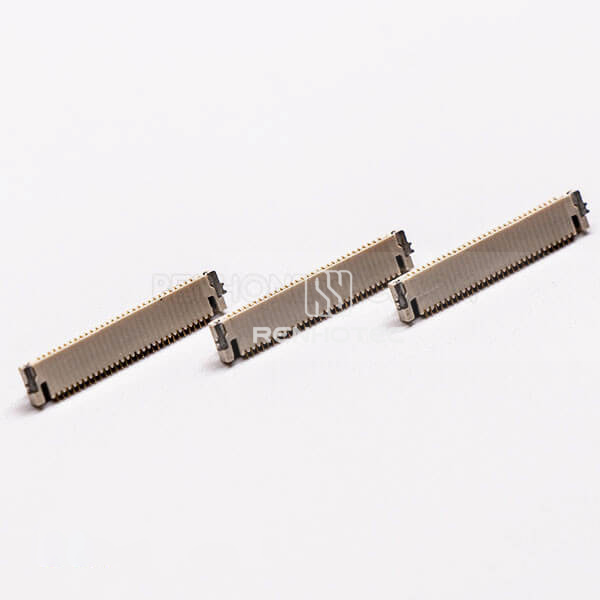

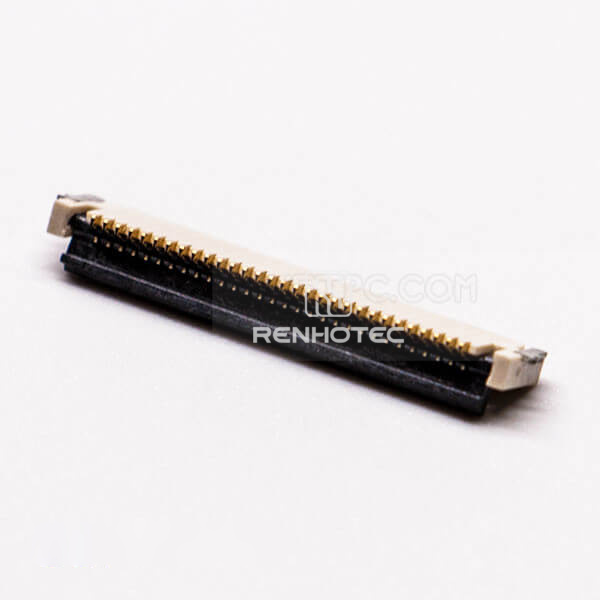

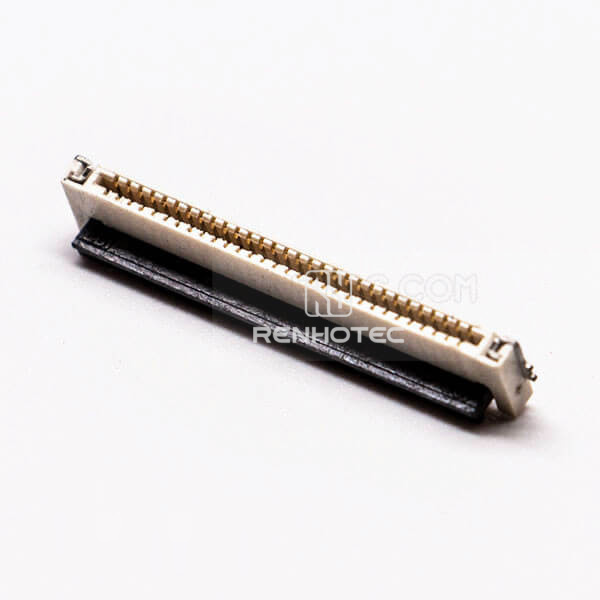

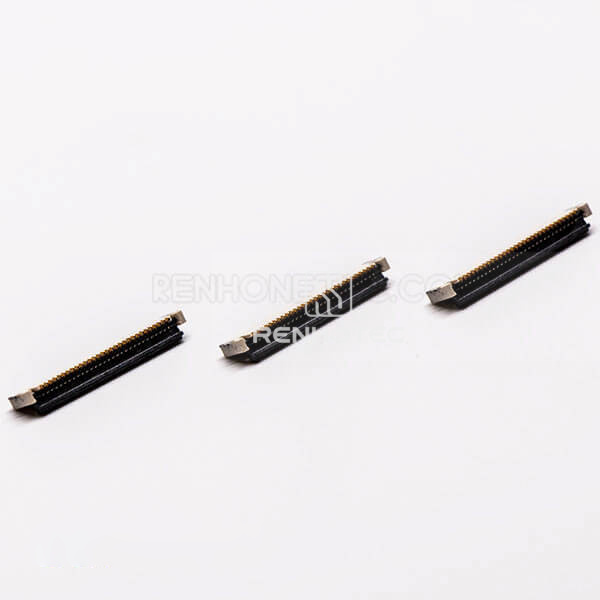

FPC Connector 0.5PH Top Contact Style Slider Type H1.2 For PCB Mount

Public Part No. RHT-616-0115

FPC Connector 0.5PH Top Contact Style Slider Type H1.2 For PCB Mount
Enlarge image
FPC Connector 0.5PH Top Contact Style Slider Type H1.2 For PCB MountFPC Connector 0.5PH Top Contact Style Slider Type H1.2 For PCB MountFPC Connector 0.5PH Top Contact Style Slider Type H1.2 For PCB MountFPC Connector 0.5PH Top Contact Style Slider Type H1.2 For PCB MountFPC Connector 0.5PH Top Contact Style Slider Type H1.2 For PCB MountFPC Connector 0.5PH Top Contact Style Slider Type H1.2 For PCB Mount

Key specifications

Connector Type
FFC/FPC Connector
Pin Count
30 Pin
Mounting Type
PCB Mount
Termination Type
Solder Type
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Mechanical

Connector Type
FFC/FPC Connector
Pin Count
30 Pin
Mounting Type
PCB Mount
Termination Type
Solder Type
Pitch notation
0.5 Pitch / 0.5PH
Dimension H notation
H1.2
Construction detail
Slider Type / Top Contact
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C
