FPC Connector 0.5MM Pitch 10 Pin Bottom Contact Style Slider Socket 1.8H

Public Part No. RHT-616-0114

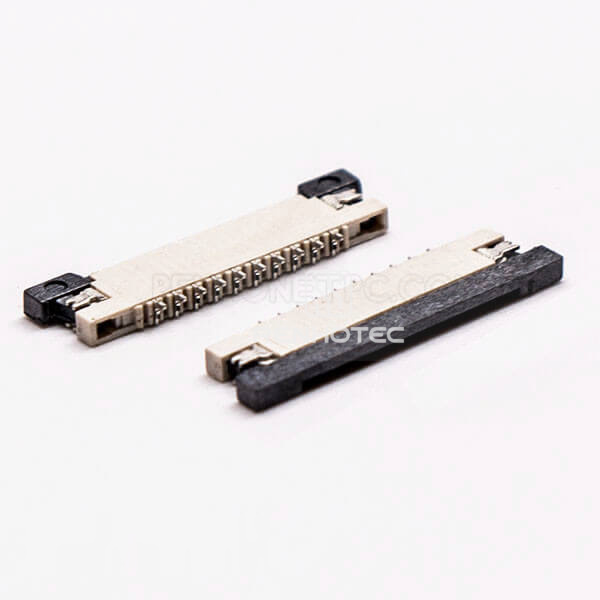

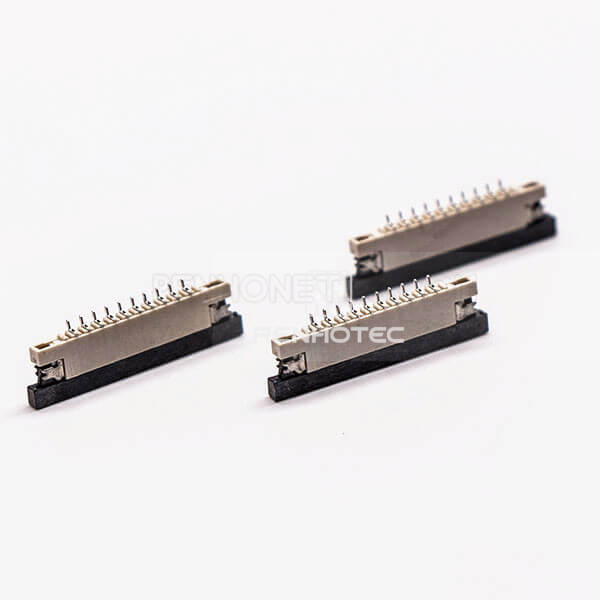

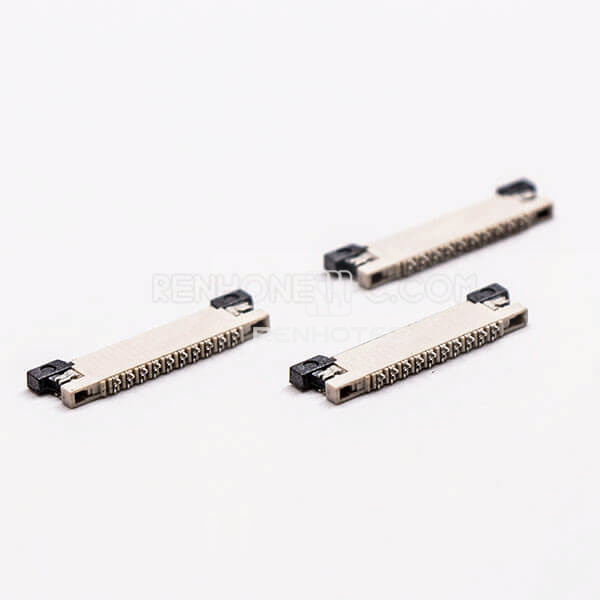

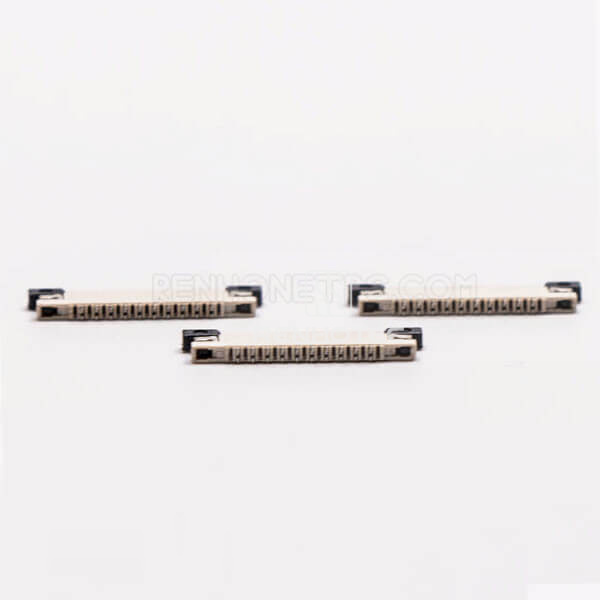

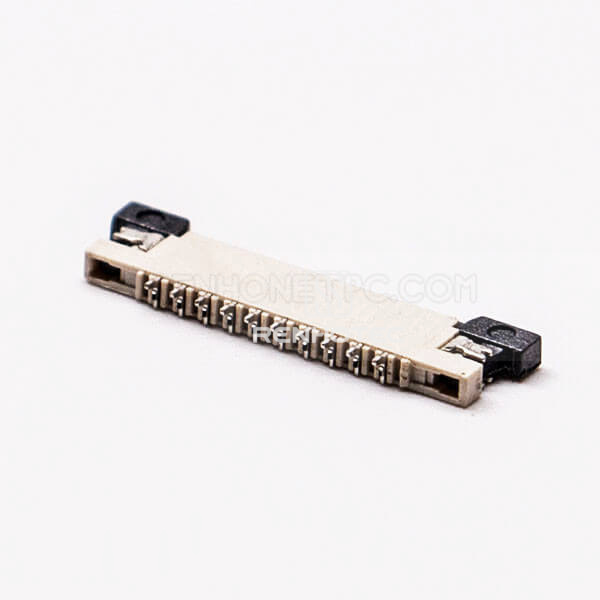

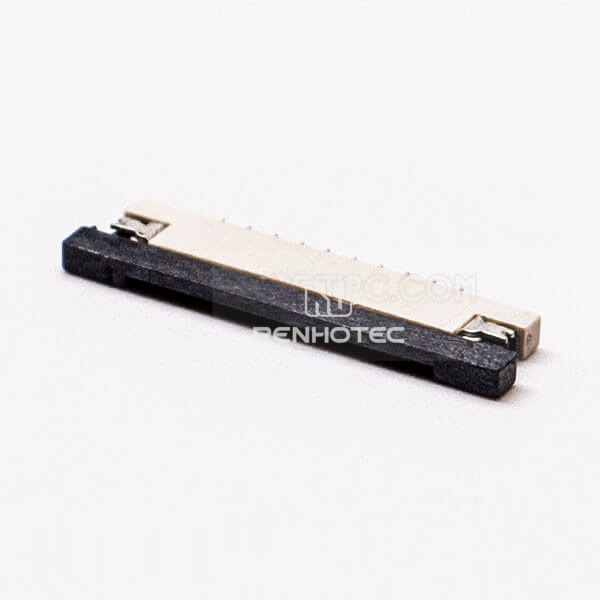

FPC Connector 0.5MM Pitch 10 Pin Bottom Contact Style Slider Socket 1.8H
Enlarge image
FPC Connector 0.5MM Pitch 10 Pin Bottom Contact Style Slider Socket 1.8HFPC Connector 0.5MM Pitch 10 Pin Bottom Contact Style Slider Socket 1.8HFPC Connector 0.5MM Pitch 10 Pin Bottom Contact Style Slider Socket 1.8HFPC Connector 0.5MM Pitch 10 Pin Bottom Contact Style Slider Socket 1.8HFPC Connector 0.5MM Pitch 10 Pin Bottom Contact Style Slider Socket 1.8HFPC Connector 0.5MM Pitch 10 Pin Bottom Contact Style Slider Socket 1.8H

Key specifications

Connector Type
FFC/FPC Connector
Pin Count
10 Pin
Mounting Type
PCB Mount
Termination Type
Solder Type
Request QuoteFull specifications

Overview

FPC / FFC connector with 10 pins, 0.5 mm pitch, bottom contacts and a slider lock. For PCB mounting.

Termination Type: Solder Type. Pitch: 0.5 mm.

Full Specifications

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Mechanical

Connector Type
FFC/FPC Connector
Pin Count
10 Pin
Mounting Type
PCB Mount
Termination Type
Solder Type
Pitch
0.5 mm
Pitch notation
0.5 Pitch
Dimension H notation
1.8H
Construction detail
Bottom Contact / Slider Type
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C
