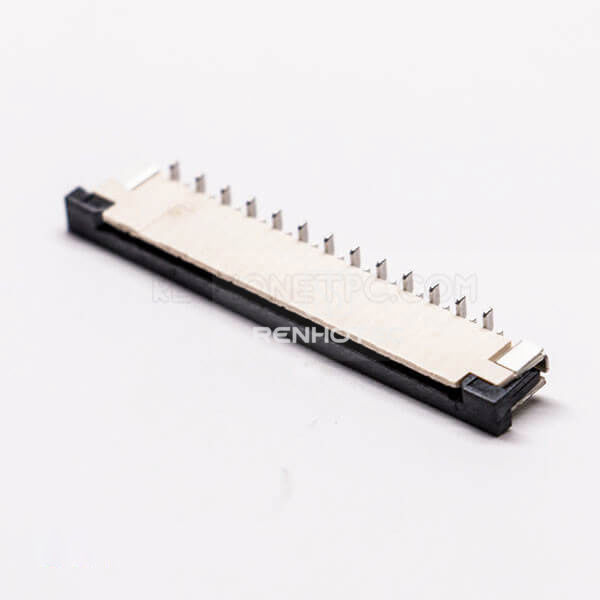

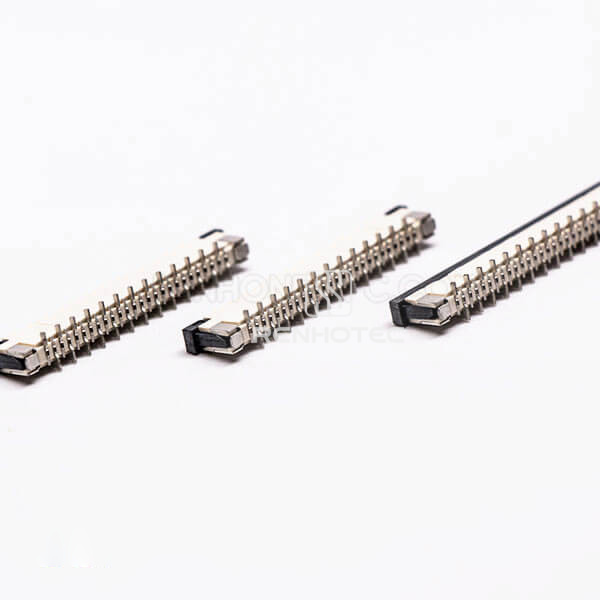

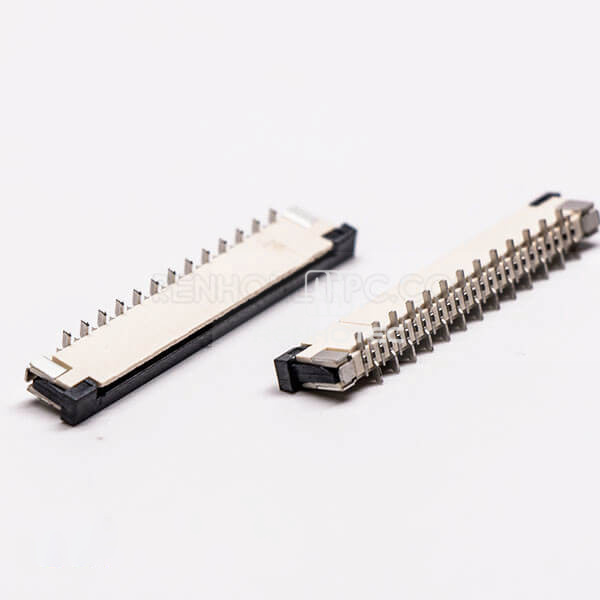

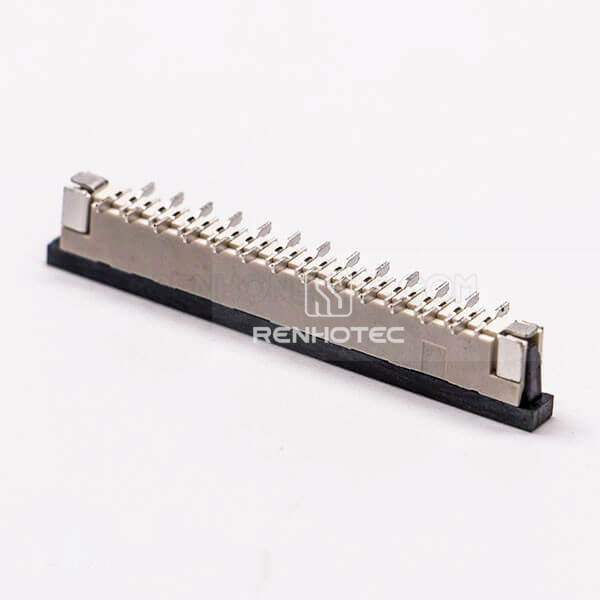

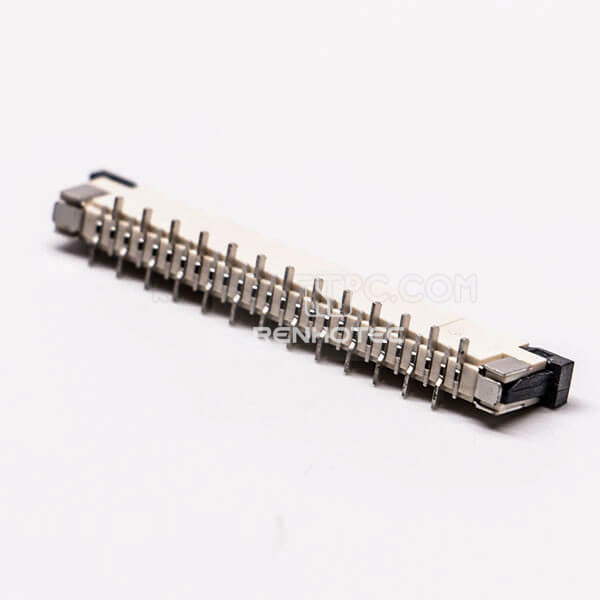

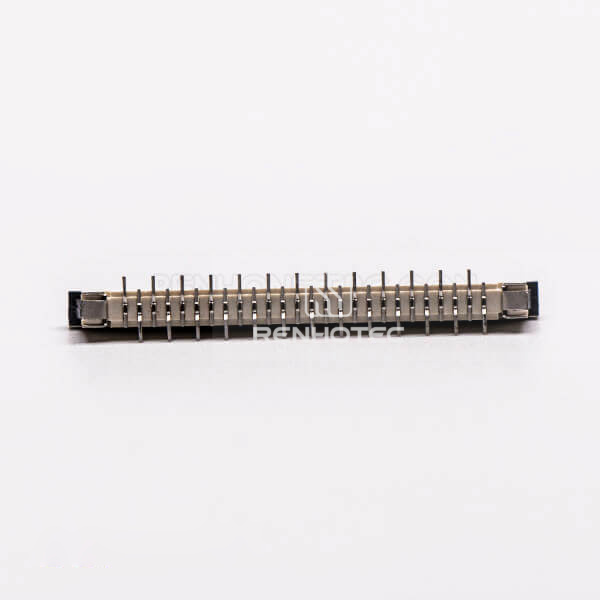

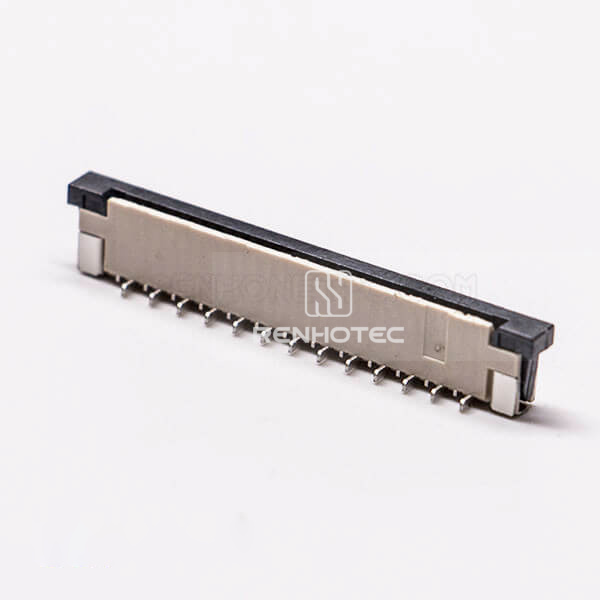

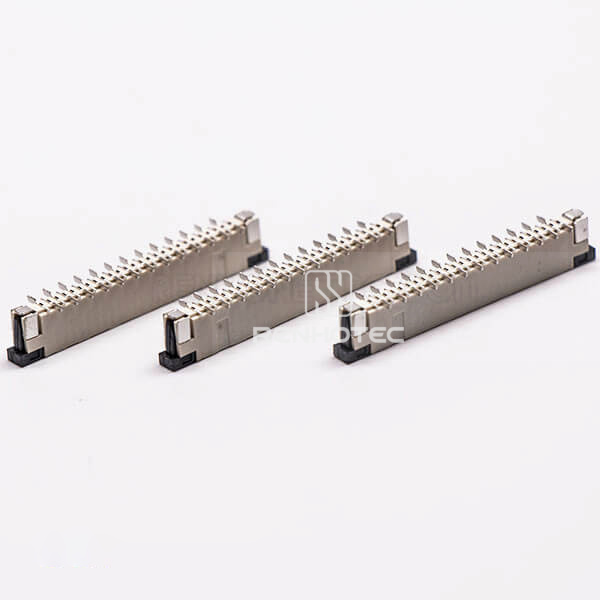

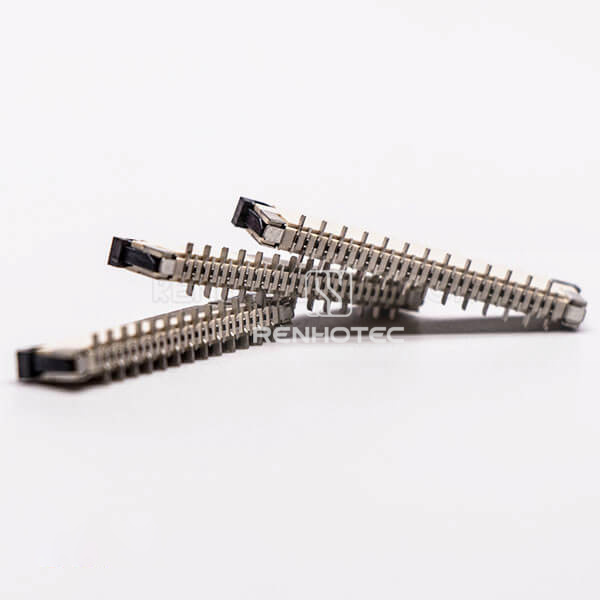

FFC/FPC Connector 13pin 0.5mm Slider Type Top Contact Style for PCB

Public Part No. RHT-616-0118

FFC/FPC Connector 13pin 0.5mm Slider Type Top Contact Style for PCB
Enlarge image
FFC/FPC Connector 13pin 0.5mm Slider Type Top Contact Style for PCBFFC/FPC Connector 13pin 0.5mm Slider Type Top Contact Style for PCBFFC/FPC Connector 13pin 0.5mm Slider Type Top Contact Style for PCBFFC/FPC Connector 13pin 0.5mm Slider Type Top Contact Style for PCBFFC/FPC Connector 13pin 0.5mm Slider Type Top Contact Style for PCBFFC/FPC Connector 13pin 0.5mm Slider Type Top Contact Style for PCBFFC/FPC Connector 13pin 0.5mm Slider Type Top Contact Style for PCBFFC/FPC Connector 13pin 0.5mm Slider Type Top Contact Style for PCBFFC/FPC Connector 13pin 0.5mm Slider Type Top Contact Style for PCB

Key specifications

Connector Type
FFC/FPC Connector
Pin Count
13 Pin
Mounting Type
PCB Mount
Termination Type
Solder Type
Request QuoteFull specifications

Overview

FPC / FFC connector with 13 pins, 0.5 mm pitch, top contacts and a slider lock. For PCB mounting.

Termination Type: Solder Type.

Full Specifications

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Mechanical

Connector Type
FFC/FPC Connector
Pin Count
13 Pin
Mounting Type
PCB Mount
Termination Type
Solder Type
Pitch
0.5 mm
Pitch notation
0.5 mm
Dimension H notation
H2.0
Construction detail
Slider Type / Top Contact
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C
