FFC FPC Connector 1.0mm Pitch 30 Pin Bottom Contact Style Front Flip Straight Socket 2.0H

Public Part No. RHT-616-0112

FFC FPC Connector 1.0mm Pitch 30 Pin Bottom Contact Style Front Flip Straight Socket 2.0H
Enlarge image
FFC FPC Connector 1.0mm Pitch 30 Pin Bottom Contact Style Front Flip Straight Socket 2.0HFFC FPC Connector 1.0mm Pitch 30 Pin Bottom Contact Style Front Flip Straight Socket 2.0HFFC FPC Connector 1.0mm Pitch 30 Pin Bottom Contact Style Front Flip Straight Socket 2.0HFFC FPC Connector 1.0mm Pitch 30 Pin Bottom Contact Style Front Flip Straight Socket 2.0HFFC FPC Connector 1.0mm Pitch 30 Pin Bottom Contact Style Front Flip Straight Socket 2.0HFFC FPC Connector 1.0mm Pitch 30 Pin Bottom Contact Style Front Flip Straight Socket 2.0H

Key specifications

Connector Type
FFC/FPC Connector / Socket
Pin Count
30 Pin
Orientation
Straight
Request QuoteFull specifications

Overview

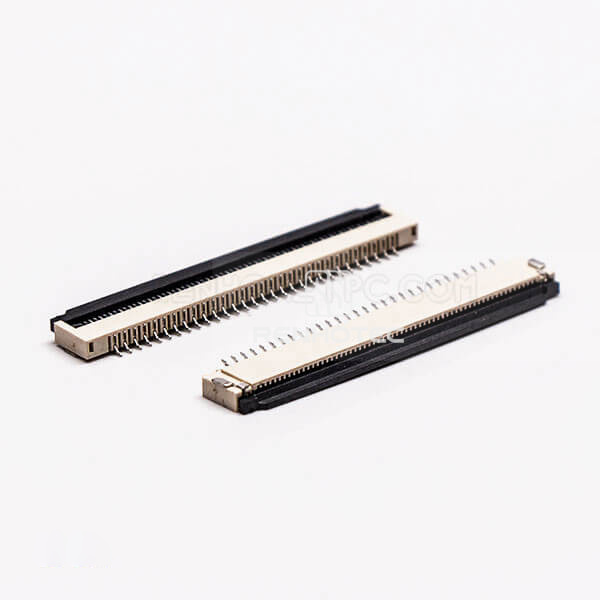

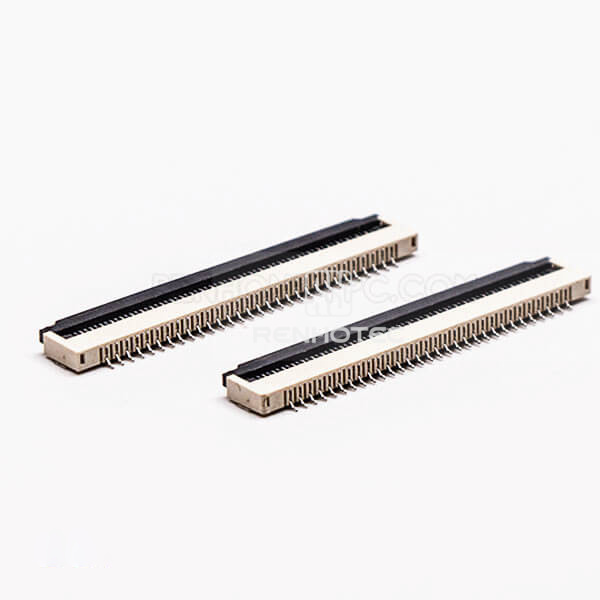

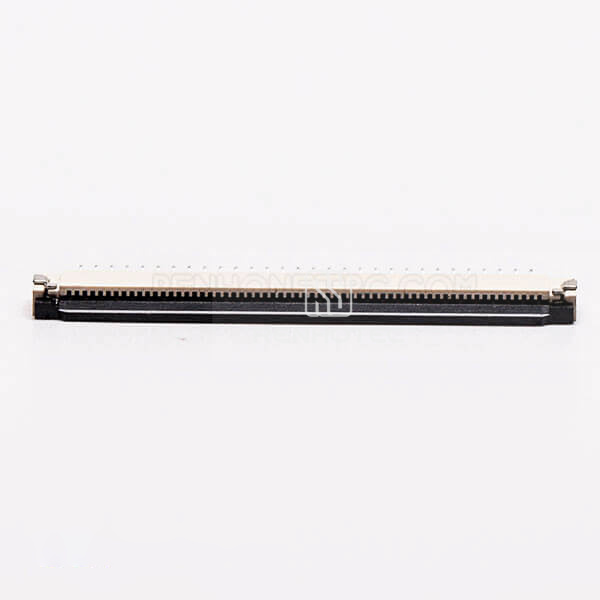

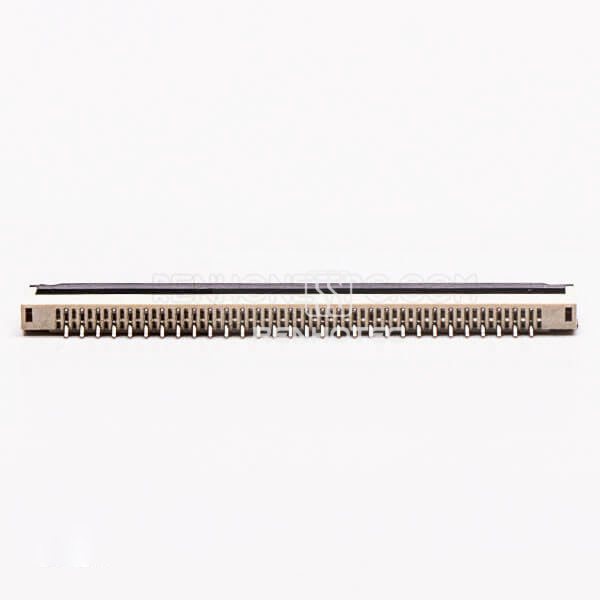

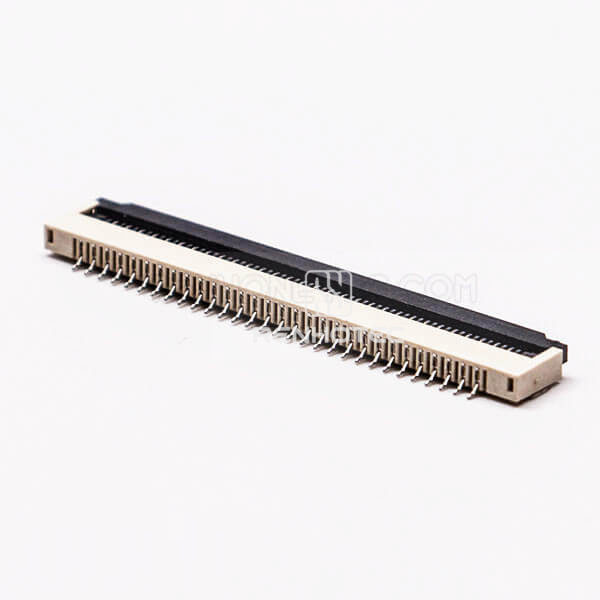

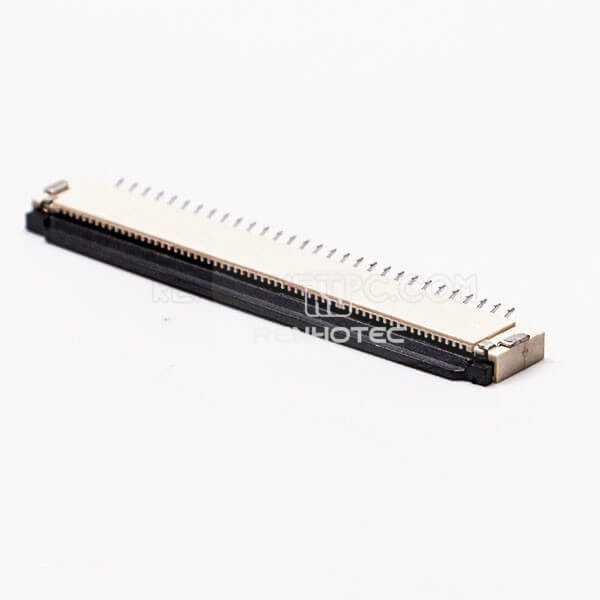

FPC / FFC connector with 30 pins and 1.0 mm pitch. Straight socket with bottom contacts and a front flip lock.

Pitch: 1 mm.

Full Specifications

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Mechanical

Connector Type
FFC/FPC Connector / Socket
Pin Count
30 Pin
Orientation
Straight
Pitch
1 mm
Pitch notation
1.0 mm
Dimension H notation
2.0H
Construction detail
Bottom Contact / Front Flip
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C
