Modular Connectors

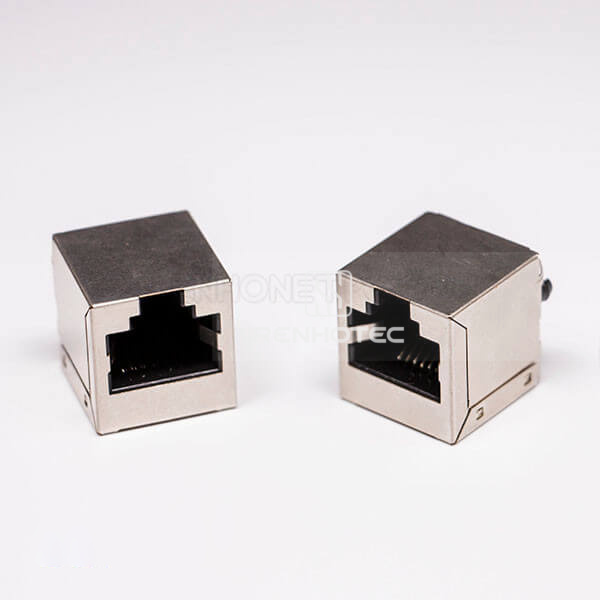

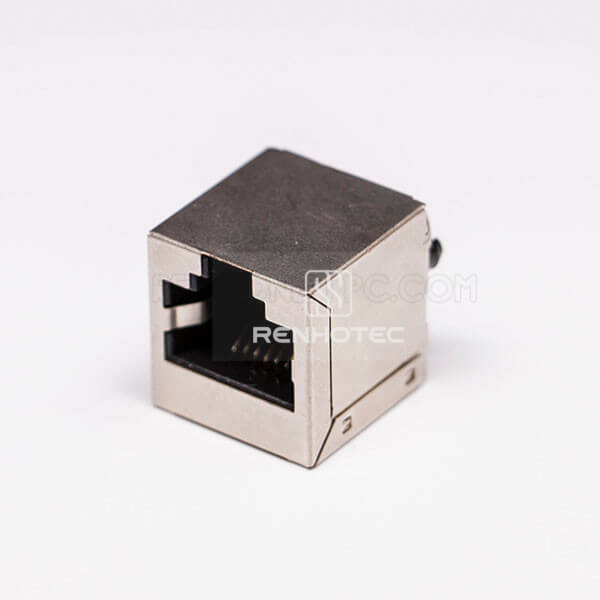

Female RJ45 Connectors 180 Degree 1 Port with Shield and Without LED

Part No.RHT-620-0725
1-port shielded female RJ45 modular connector with a straight orientation and PCB mounting. Without LEDs.
  • GenderFemale
  • OrientationStraight
  • Mounting TypePCB Mount

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

LED Option
Without LED
Current Rating
3A continuous
Voltage Rating
1000V RMS
Insulation resistance
500MΩ min.
Dielectric withstanding voltage
1500V min.

Mechanical

Gender
Female
Orientation
Straight
Mounting Type
PCB Mount
Number of Ports
1 Port
Shielding
Shielded
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles

Environmental

Operating Temperature
-40 to 120 °C

Before you specify

Selection guide

1-port shielded female RJ45 modular connector with a straight orientation and PCB mounting. Without LEDs.

RHT-620-0725
