D-SUB Connector

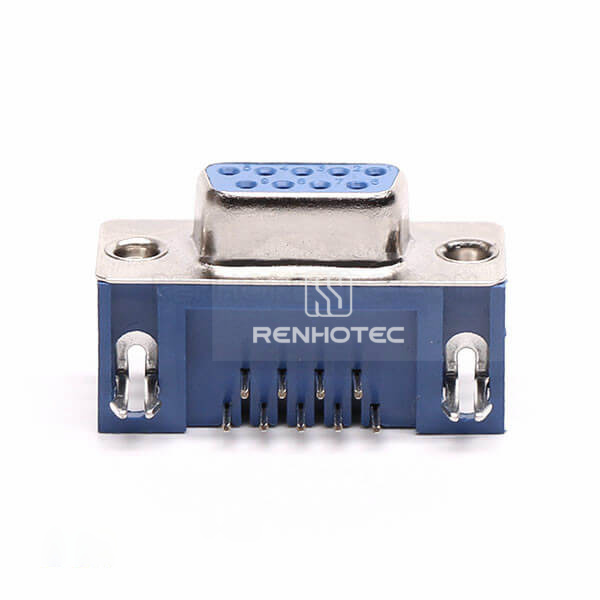

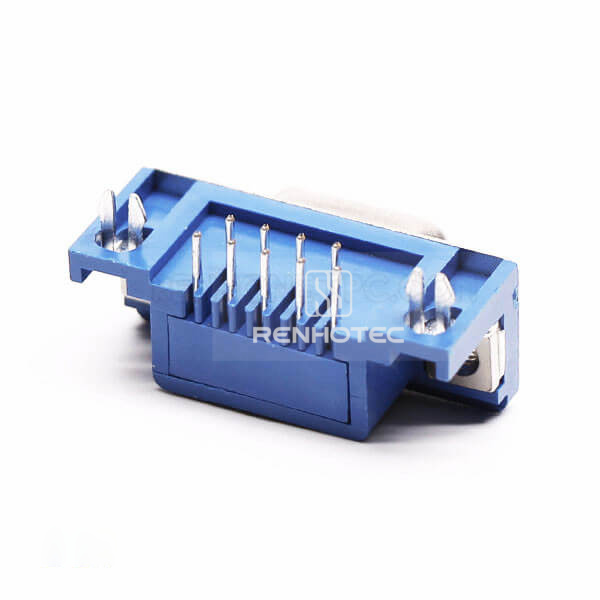

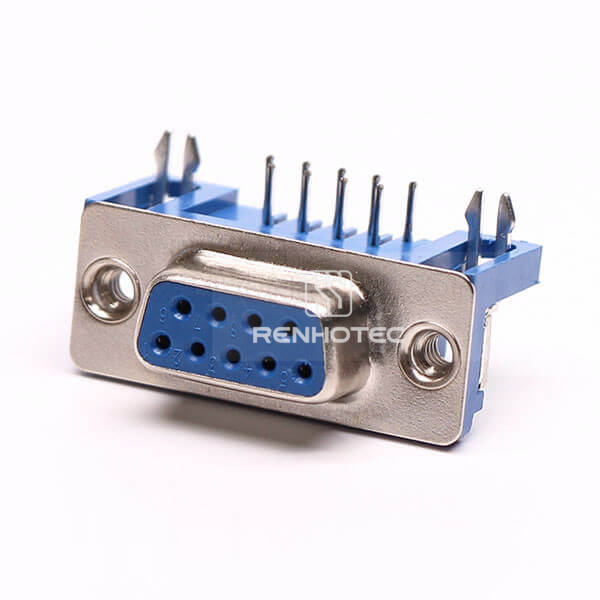

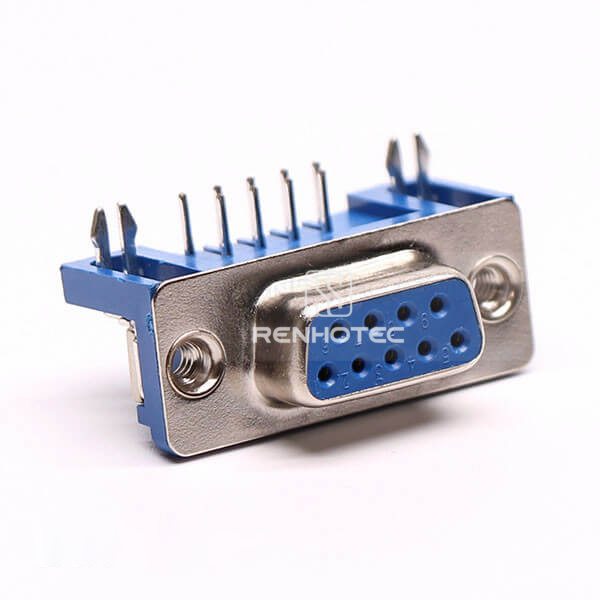

D-SUB 9 Pin Solder Female Right Angle for PCB with Stamped Pin Connector

Public Part No. RHT-681-1148

D-SUB 9 Pin Solder Female Right Angle for PCB with Stamped Pin Connector
Enlarge image
D-SUB 9 Pin Solder Female Right Angle for PCB with Stamped Pin ConnectorD-SUB 9 Pin Solder Female Right Angle for PCB with Stamped Pin ConnectorD-SUB 9 Pin Solder Female Right Angle for PCB with Stamped Pin ConnectorD-SUB 9 Pin Solder Female Right Angle for PCB with Stamped Pin Connector

Key specifications

Connector Type
D-SUB
Pin Count
9 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Stamped Pin
Request QuoteFull specifications

Overview

9-pin female D-SUB connector with right-angle orientation and through-hole PCB mounting. It uses stamped contacts. Colour: blue.

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Connector Type
D-SUB
Pin Count
9 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Stamped Pin
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.

Material

Color
Blue
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C
