Cable Assembly

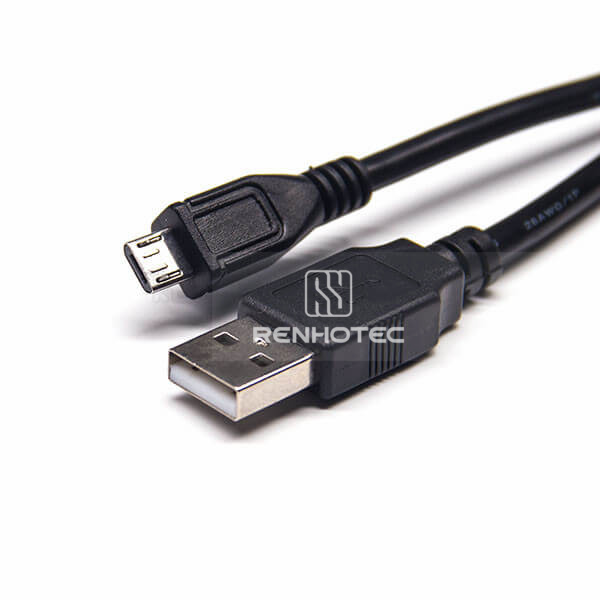

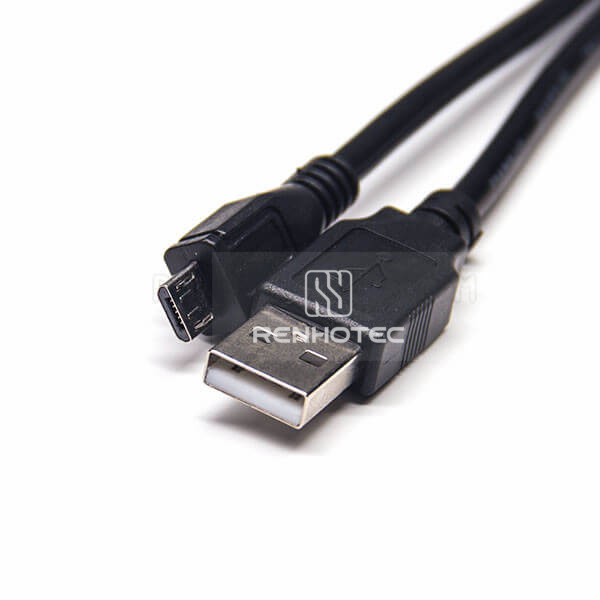

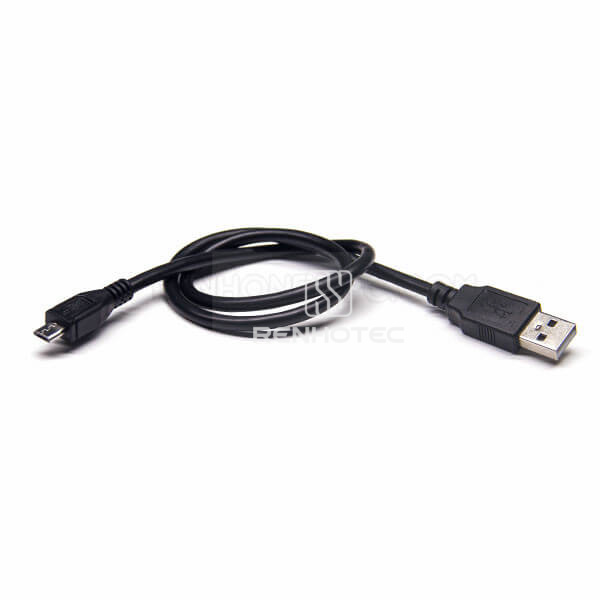

USB-A Male to Micro USB Male Cable

Public Part No. RHT-606-0115

USB-A Male to Micro USB Male Cable
Enlarge image
USB-A Male to Micro USB Male CableUSB-A Male to Micro USB Male CableUSB-A Male to Micro USB Male CableUSB-A Male to Micro USB Male Cable

Key specifications

Connector Type
Micro USB / Type A / USB2.0
Gender
Male
Orientation
Straight
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
3A continuous
Insulation resistance
500MΩ min.
Dielectric withstanding voltage
1500V min.

Mechanical

Connector Type
Micro USB / Type A / USB2.0
Gender
Male
Orientation
Straight
Cable length
1 m
Cable outside diameter
3.5 mm
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles

Material

Conductor material
Copper
Cable jacket material
PVC

Environmental

Operating Temperature
-40 to 120 °C
