Extension for USB Cable Type A Female to Micro USB Male Data Cable

Public Part No. RHT-605-2501

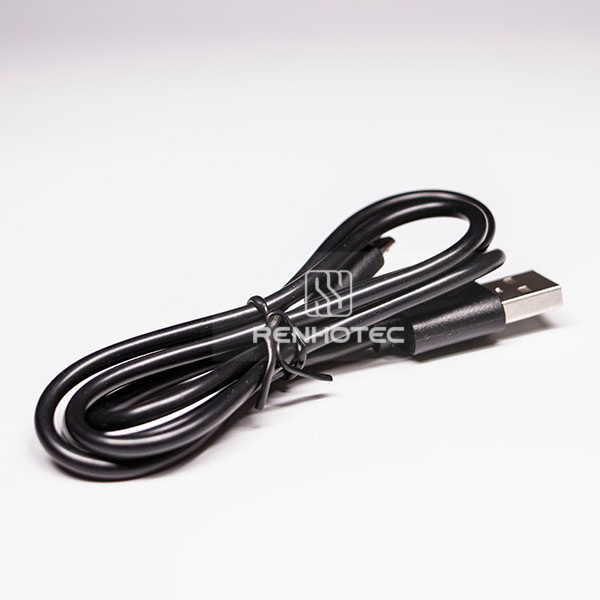

Extension for USB Cable Type A Female to Micro USB Male Data Cable
Enlarge image

Key specifications

Connector Type
Micro USB Type B / Type A
Orientation
Straight
Request QuoteFull specifications

Overview

USB cable with a Type-A female end and a Micro USB Type-B male end. Check the cable length and pin-to-pin wiring against the connection you need.

Full Specifications

Electrical

Current Rating
1A max.
Voltage Rating
30V AC RMS
Data rate
480 Mbps
Contact Resistance
30 milliohms max
Insulation Resistance
1000 megohms min
Dielectric Withstanding Voltage
500 V DC/1min

Mechanical

Connector Type
Micro USB Type B / Type A
Orientation
Straight
Mounting detail
for cable
Connection feature
Hot plugging
Mating force
3.57 kgf max
Unmating Force
1.0 kgf min
Gender at connector ends
USB-A: Female / Micro USB: Male

Environmental

Operating Temperature
-40 to 85 °C
