DVI Connector

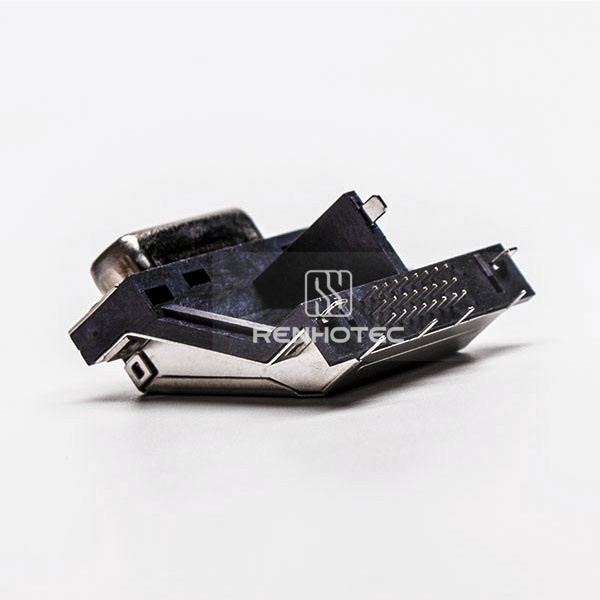

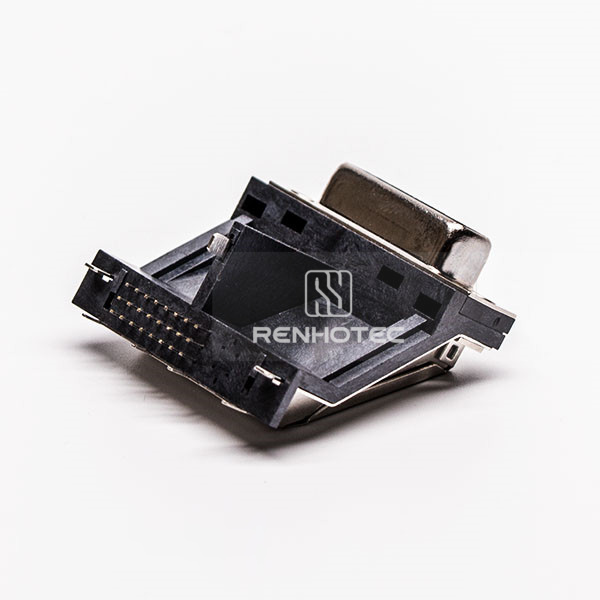

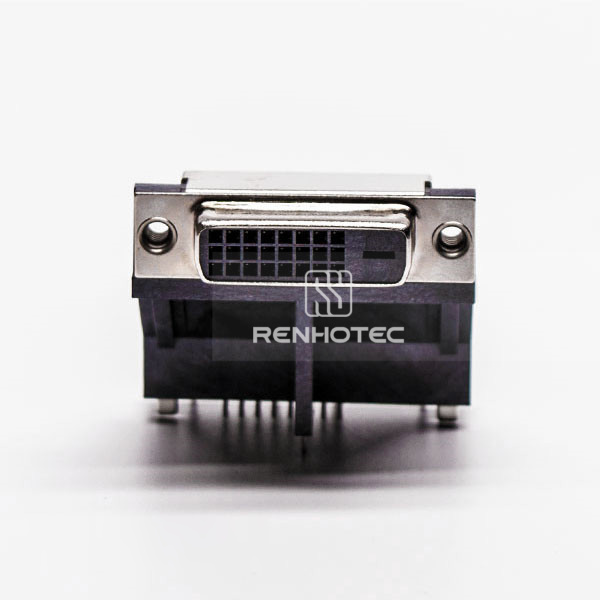

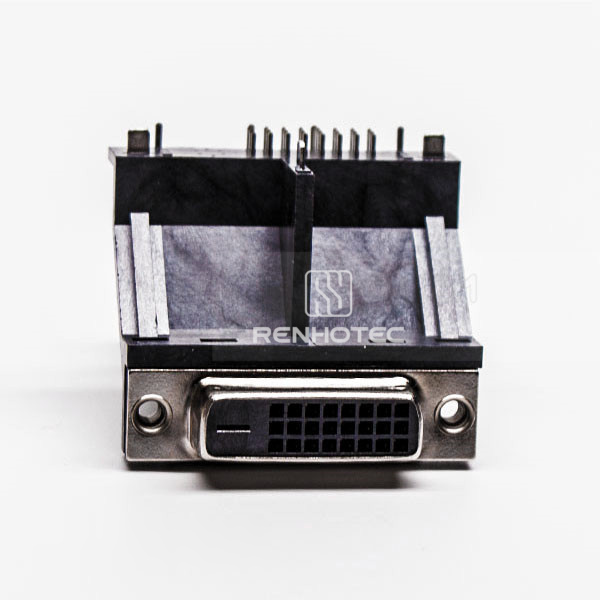

Elevated DVI Female connector for PCB Mount

Public Part No. RHT-621-2117

Elevated DVI Female connector for PCB Mount
Enlarge image
Elevated DVI Female connector for PCB MountElevated DVI Female connector for PCB MountElevated DVI Female connector for PCB MountElevated DVI Female connector for PCB Mount

Key specifications

Connector Type
DVI-D
Gender
Female
Mounting Type
PCB Mount / Through Hole
Request QuoteFull specifications

Overview

Elevated DVI-D female connector for through-hole PCB mounting, with harpoon construction.

The mating-face height and board footprint must be checked together when positioning this elevated connector in an enclosure.

Full Specifications

Electrical

Current Rating
1.5A min.
Contact Resistance
20 Millohms Max
Insulation Resistance
1000Megohms Min
Dielectric Withstanding
1000V DC
Dielectric Withstanding Voltage
500V DC RMS ±50V 60HZ

Mechanical

Connector Type
DVI-D
Gender
Female
Mounting Type
PCB Mount / Through Hole
Construction detail
Elevated / Harpoon / elevated
Extraction force
1KGf Min. 4KGf Max
Insertion force
4.5KGf Max

Environmental

Operating Temperature
-20 to 85 °C

Connector requirement
