D-SUB Connector

DVI To High Density Adapter 24+5Pin Straight Male To HDB 15Pin Female

Public Part No. RHT-681-1310

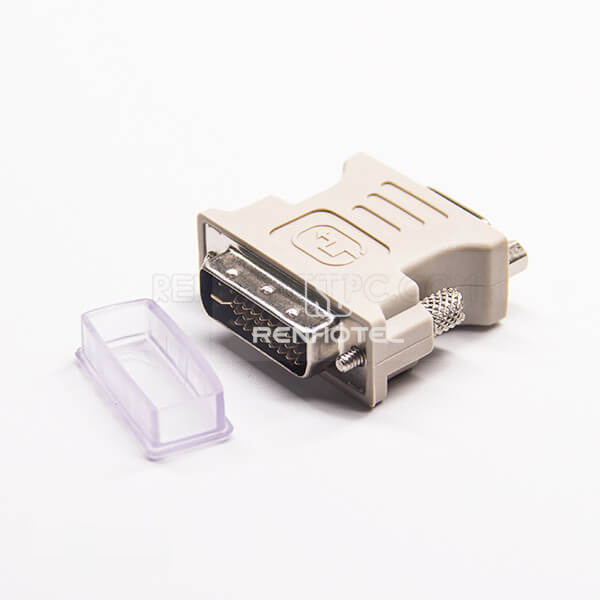

DVI To High Density Adapter 24+5Pin Straight Male To HDB 15Pin Female
Enlarge image
DVI To High Density Adapter 24+5Pin Straight Male To HDB 15Pin FemaleDVI To High Density Adapter 24+5Pin Straight Male To HDB 15Pin FemaleDVI To High Density Adapter 24+5Pin Straight Male To HDB 15Pin FemaleDVI To High Density Adapter 24+5Pin Straight Male To HDB 15Pin Female

Key specifications

Connector Type
D-SUB / D-SUB Adapter&Gender Changers
Orientation
Straight
Request QuoteFull specifications

Overview

24+5 DVI male to 15-pin high-density D-SUB female adapter with a straight configuration. Colour: black.

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Connector Type
D-SUB / D-SUB Adapter&Gender Changers
Orientation
Straight
Contact configuration
24+5pin / 24+5Pin
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.
Gender at connector ends
Male / Female

Material

Color
Black
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C
