DVI Connector

DVI Connector RHT-621-2099

Public Part No. RHT-621-2099

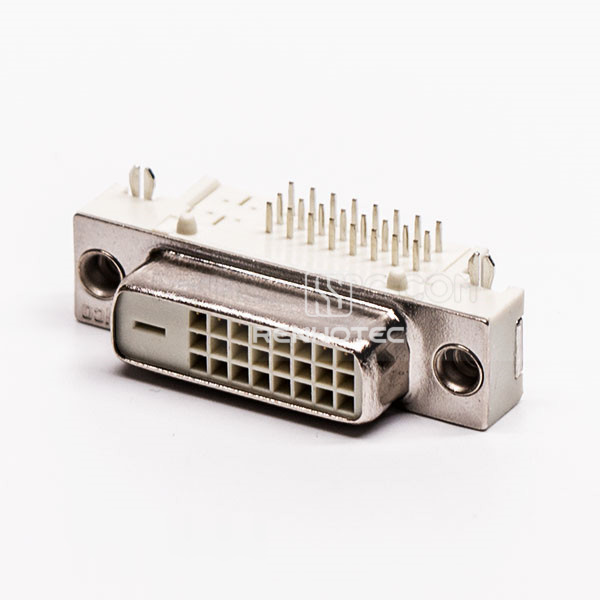

DVI Connector RHT-621-2099
Enlarge image

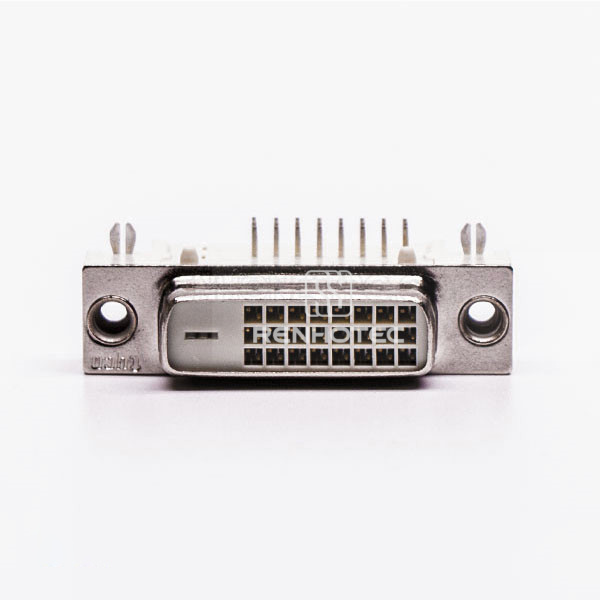

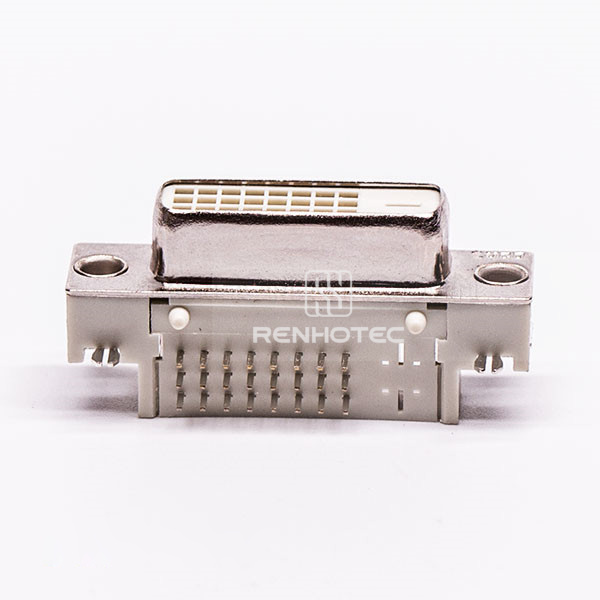

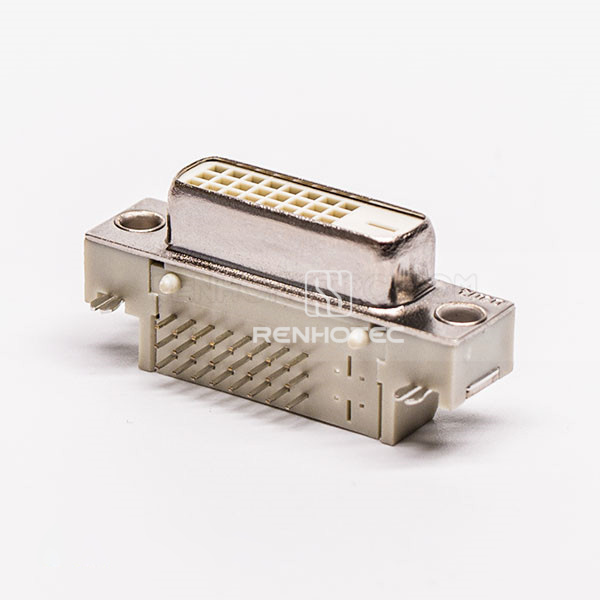

DVI Connector RHT-621-2099DVI Connector RHT-621-2099DVI Connector RHT-621-2099DVI Connector RHT-621-2099

Key specifications

Connector Type
DVI-D
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
1.5A min.
Contact Resistance
20 Millohms Max
Insulation Resistance
1000Megohms Min
Dielectric Withstanding
1000V DC
Dielectric Withstanding Voltage
500V DC RMS ±50V 60HZ

Mechanical

Connector Type
DVI-D
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Contact configuration
24+1
Construction detail
Nut
Extraction force
1KGf Min. 4KGf Max
Insertion force
4.5KGf Max

Environmental

Operating Temperature
-20 to 85 °C
