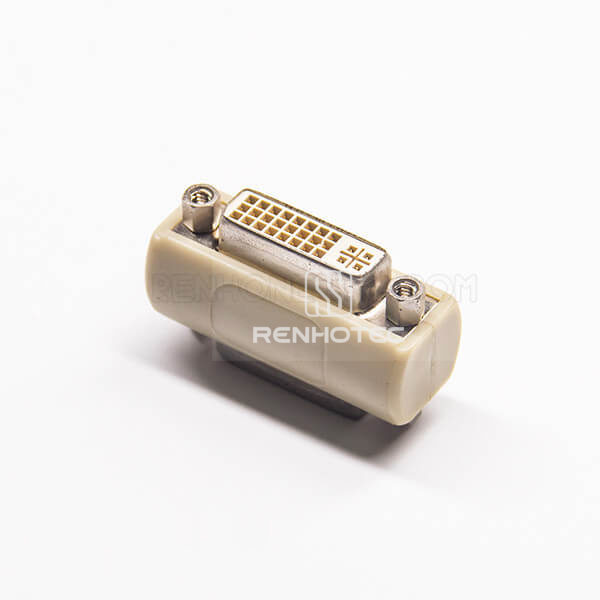

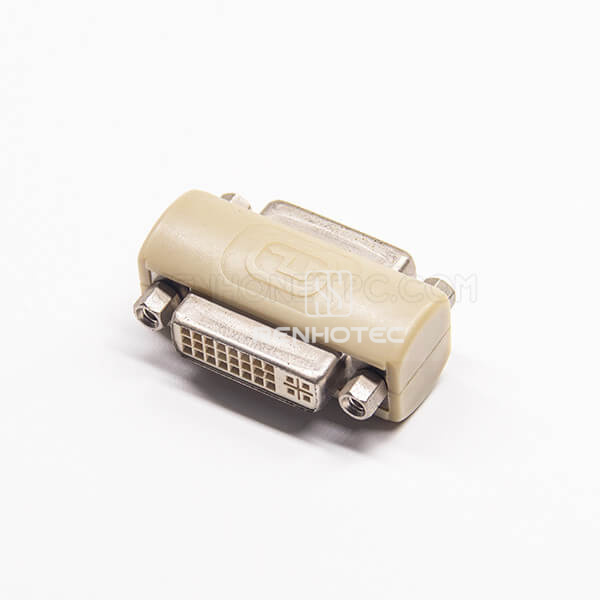

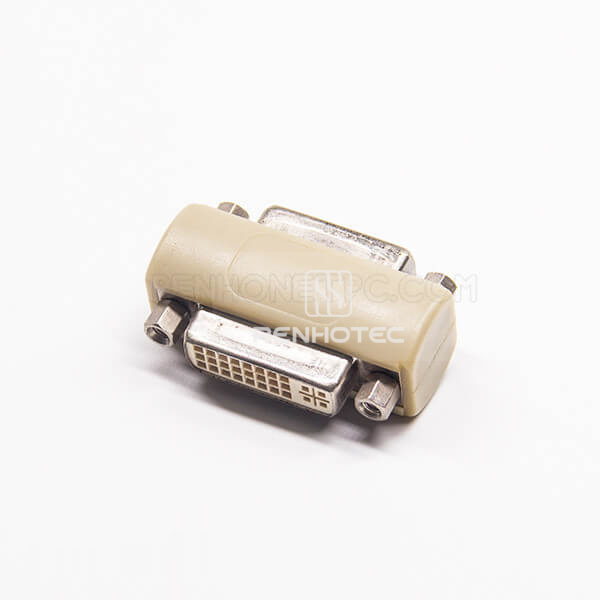

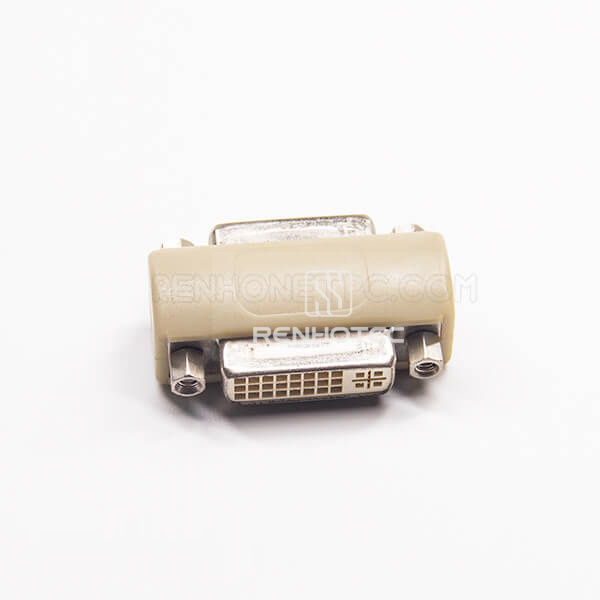

DVI Connector Female 24+5Pin To DVI 24+5Pin Straight Female Super Short Adapter

Public Part No. RHT-681-1315

DVI Connector Female 24+5Pin To DVI 24+5Pin Straight Female Super Short Adapter
Enlarge image
DVI Connector Female 24+5Pin To DVI 24+5Pin Straight Female Super Short AdapterDVI Connector Female 24+5Pin To DVI 24+5Pin Straight Female Super Short AdapterDVI Connector Female 24+5Pin To DVI 24+5Pin Straight Female Super Short AdapterDVI Connector Female 24+5Pin To DVI 24+5Pin Straight Female Super Short Adapter

Key specifications

Gender
Female
Orientation
Straight
Request QuoteFull specifications

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Gender
Female
Orientation
Straight
Contact configuration
24+5pin / 24+5Pin
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.

Material

Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C
