DVI Connector

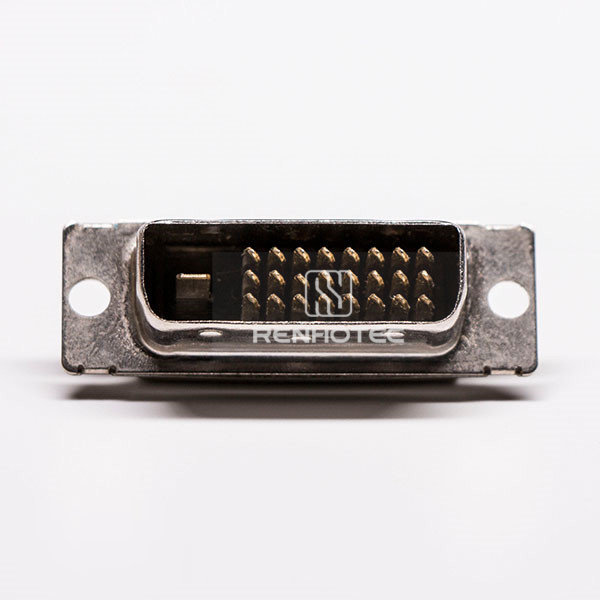

DVI 24+1 Straight Connector Male Through Hole for PCB Mount

Public Part No. RHT-621-2091

DVI 24+1 Straight Connector Male Through Hole for PCB Mount
Enlarge image

Key specifications

Gender
Male
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
Request QuoteFull specifications

Overview

RHT-621-2091 is a DVI 24+1 male connector with a straight through-hole PCB connection. Compare the 24+1 contact arrangement with the intended mating connector before checking the PCB footprint.

Include the board hole pattern, enclosure opening and fixing-point dimensions in your inquiry. State the required signal functions so compatibility can be checked for the complete design.

Full Specifications

Mechanical

Gender
Male
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
