DVI Connector

DVI Connector RHT-621-2124

Public Part No. RHT-621-2124

DVI Connector RHT-621-2124
Enlarge image
DVI Connector RHT-621-2124DVI Connector RHT-621-2124DVI Connector RHT-621-2124DVI Connector RHT-621-2124DVI Connector RHT-621-2124DVI Connector RHT-621-2124

Key specifications

Connector Type
DVI-D
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Request QuoteFull specifications

Overview

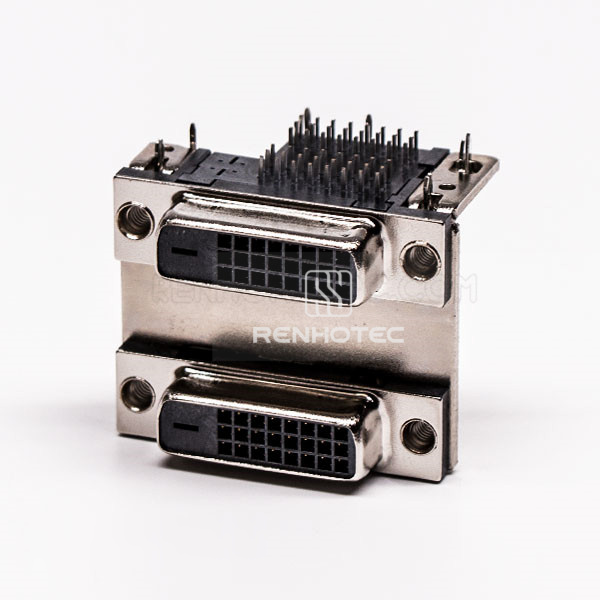

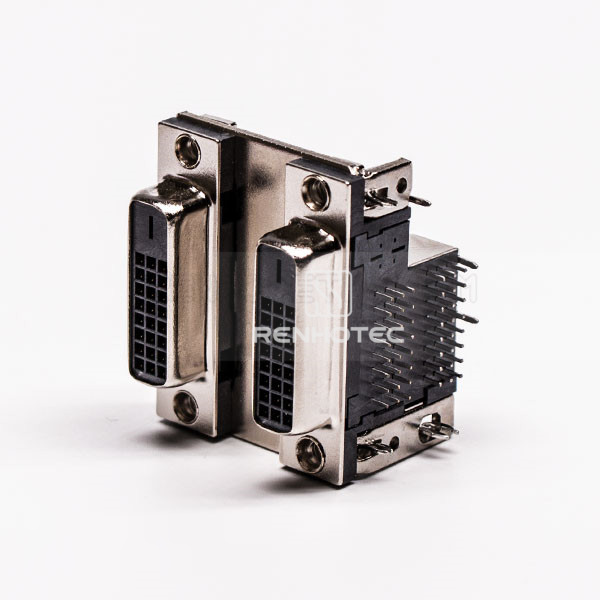

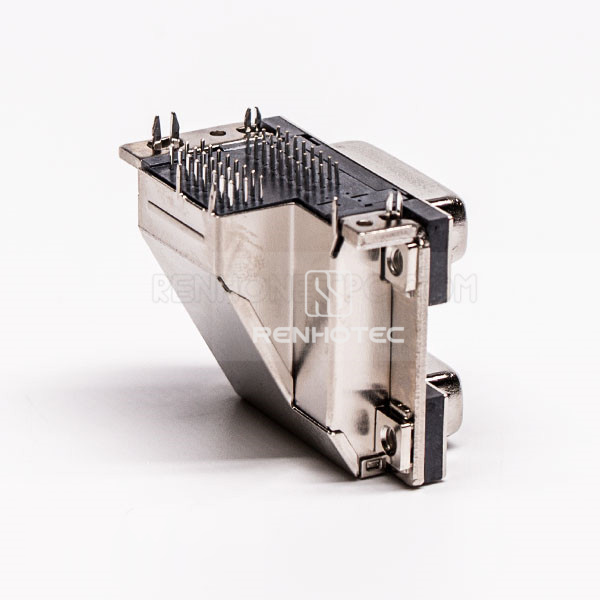

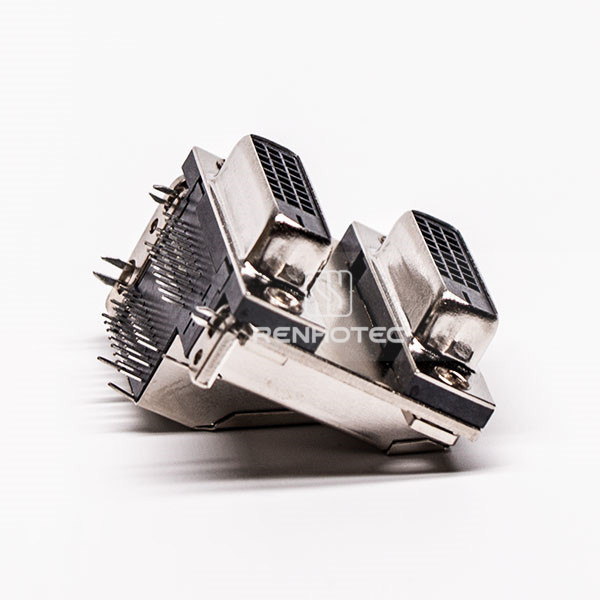

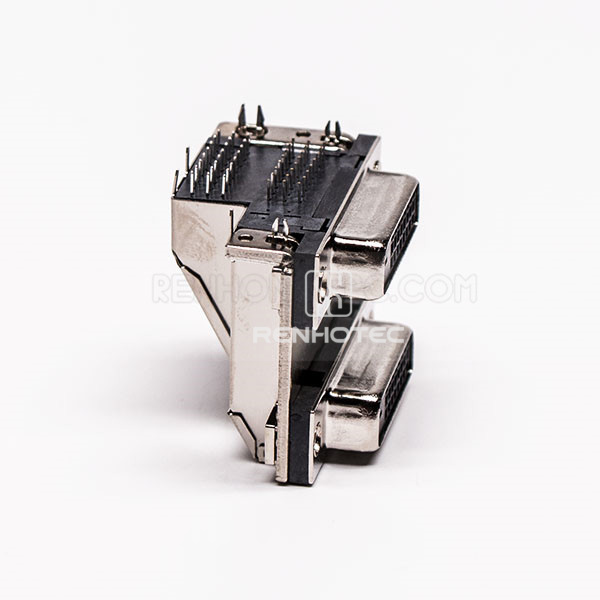

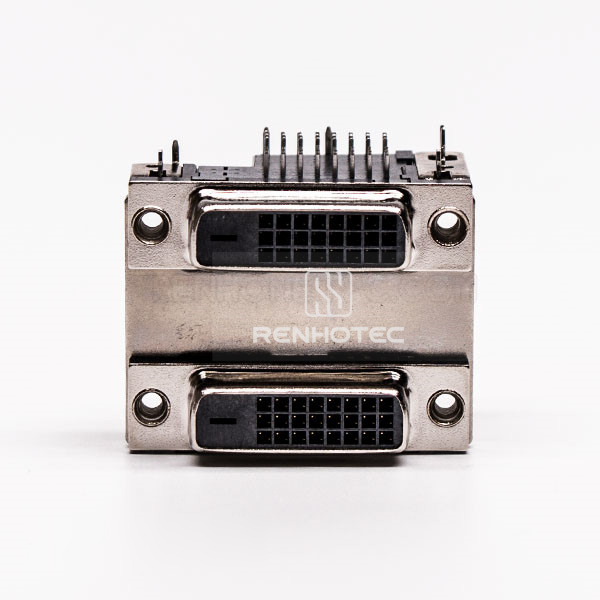

Black two-port stacked DVI-D female connector with a 24+1 contact configuration, right-angle orientation and through-hole PCB mounting.

Harpoon construction. Compare the stacked port spacing and mounting footprint with the enclosure and PCB drawings.

Full Specifications

Electrical

Current Rating
1.5A min.
Contact Resistance
20 Millohms Max
Insulation Resistance
1000Megohms Min
Dielectric Withstanding
1000V DC
Dielectric Withstanding Voltage
500V DC RMS ±50V 60HZ

Mechanical

Connector Type
DVI-D
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Number of Ports
2 Port
Construction detail
Harpoon / Stacked
Contact configuration
24+1
Extraction force
1KGf Min. 4KGf Max
Insertion force
4.5KGf Max

Material

Color
Black

Environmental

Operating Temperature
-20 to 85 °C
