DisplayPort Connector

DP 20p Cable Male with Metal Case for Cable Wire

Public Part No. RHT-605-2507

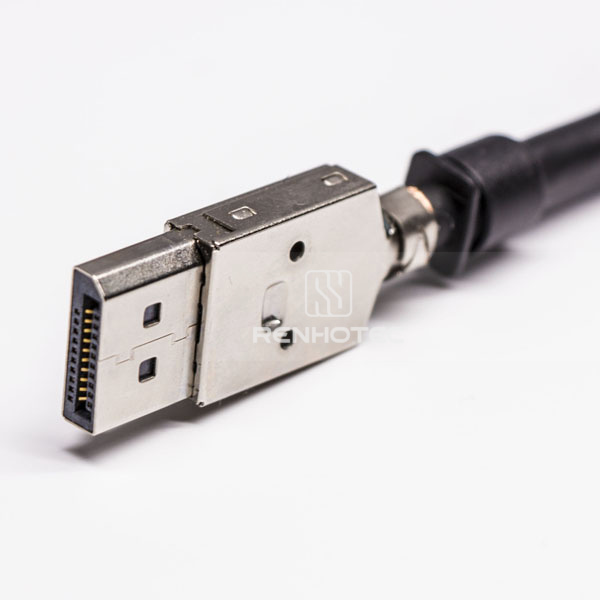

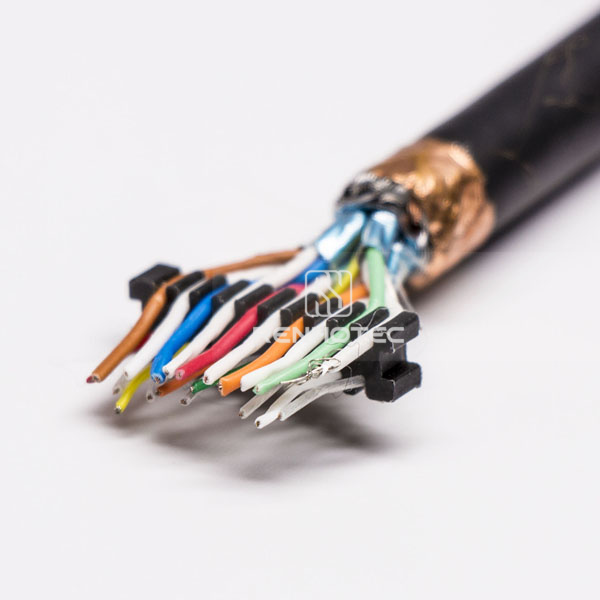

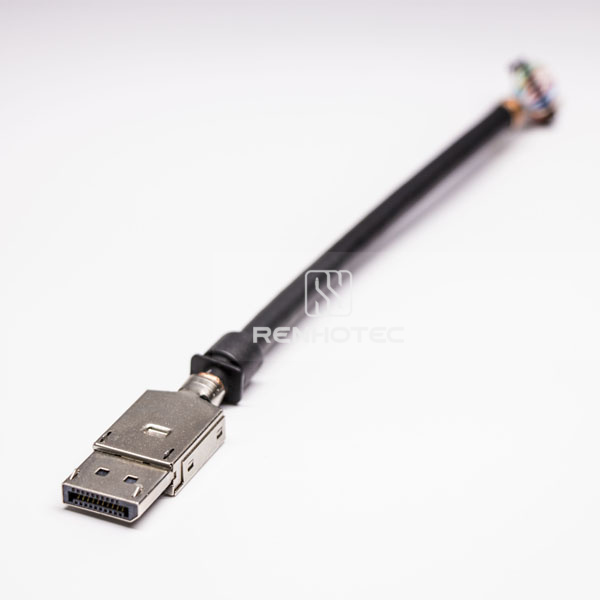

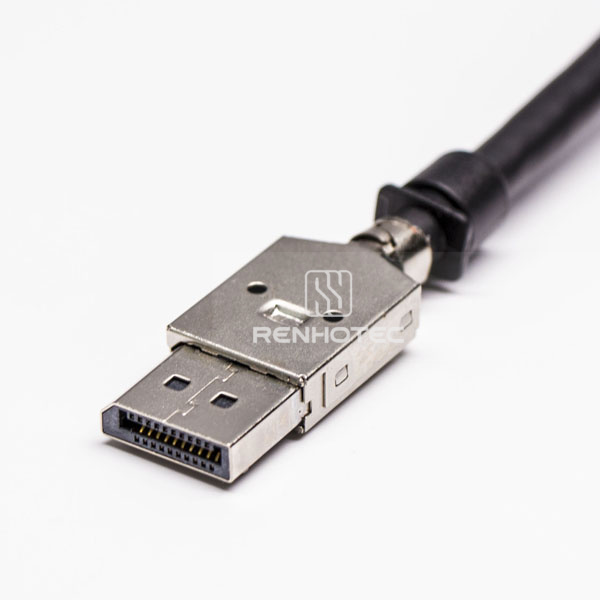

DP 20p Cable Male with Metal Case for Cable Wire
Enlarge image
DP 20p Cable Male with Metal Case for Cable WireDP 20p Cable Male with Metal Case for Cable WireDP 20p Cable Male with Metal Case for Cable WireDP 20p Cable Male with Metal Case for Cable Wire

Key specifications

Pin Count
20 Pin
Gender
Male
Orientation
Straight
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
1.5A min.
Contact Resistance
20 Millohms Max
Insulation Resistance
1000Megohms Min
Dielectric Withstanding
1000V DC
Dielectric Withstanding Voltage
500V DC RMS ±50V 60HZ

Mechanical

Pin Count
20 Pin
Gender
Male
Orientation
Straight
Mounting detail
for cable
Extraction force
1KGf Min. 4KGf Max
Insertion force
4.5KGf Max

Environmental

Operating Temperature
-20 to 85 °C
