USB Connector

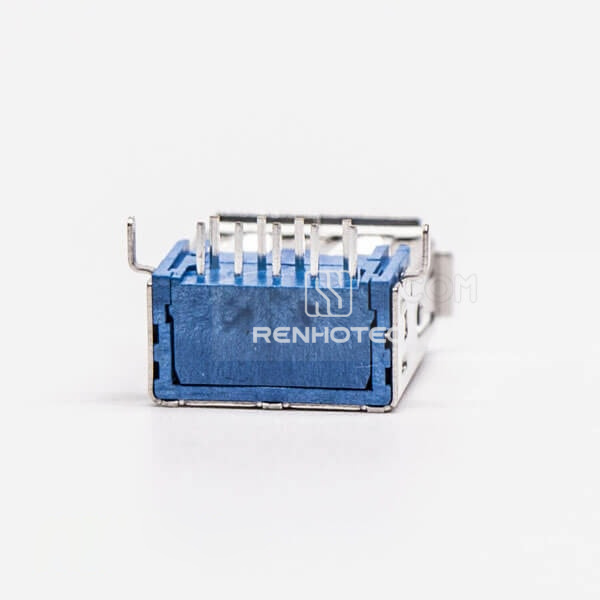

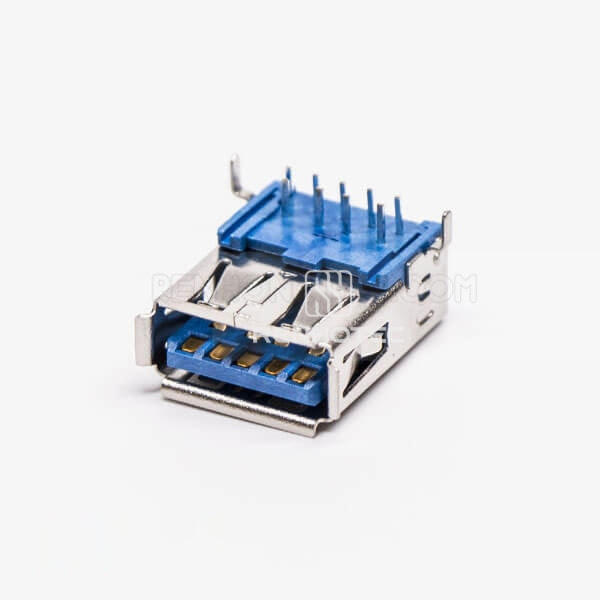

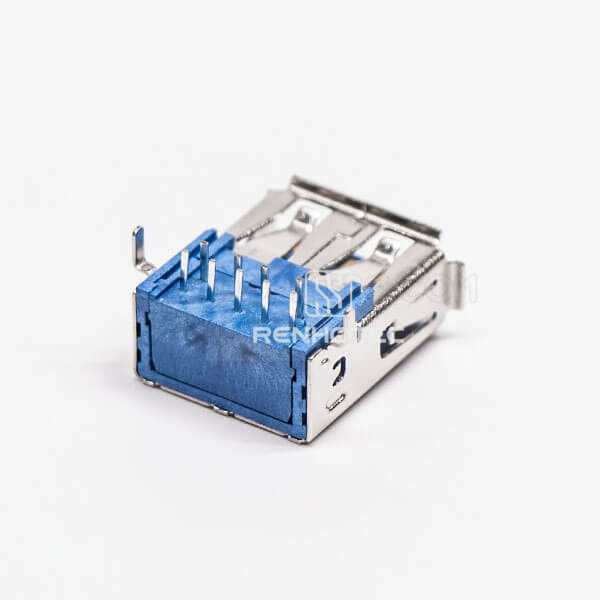

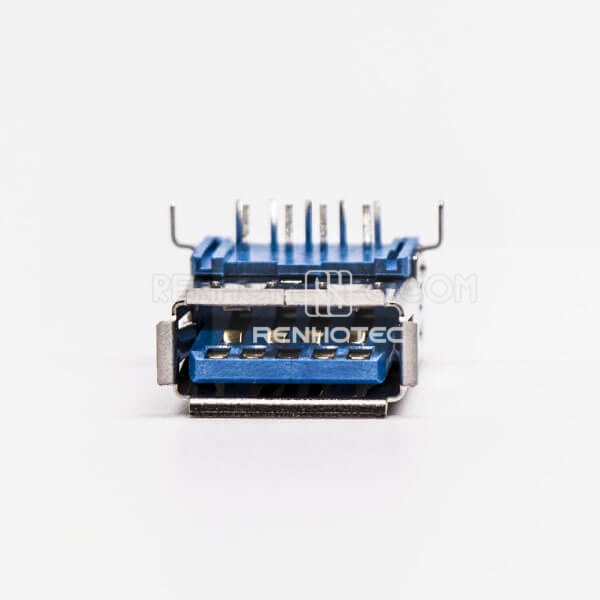

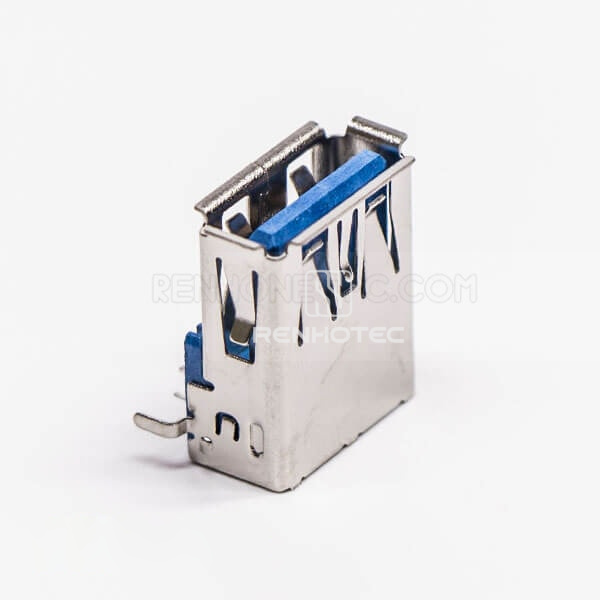

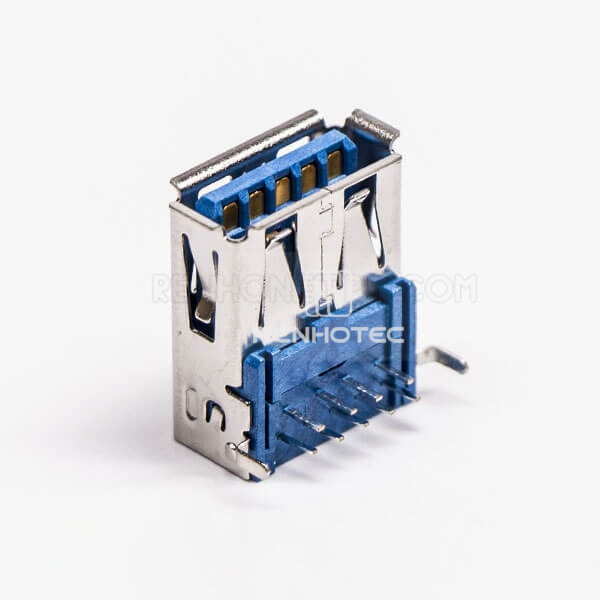

DIP Through Hole USB 3.0 Type A Port Right Angle Female

Public Part No. RHT-692-1359

DIP Through Hole USB 3.0 Type A Port Right Angle Female
Enlarge image
DIP Through Hole USB 3.0 Type A Port Right Angle FemaleDIP Through Hole USB 3.0 Type A Port Right Angle FemaleDIP Through Hole USB 3.0 Type A Port Right Angle FemaleDIP Through Hole USB 3.0 Type A Port Right Angle FemaleDIP Through Hole USB 3.0 Type A Port Right Angle FemaleDIP Through Hole USB 3.0 Type A Port Right Angle Female

Key specifications

Connector Type
USB3.0 / Type A
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount / Through Hole
Request QuoteFull specifications

Overview

USB Connector with Female, Right Angle, Type A / USB3.0. Mounting: DIP, PCB Mount, Through Hole.

Shielding: Shielded.

Full Specifications

Electrical

Current Rating
1.5A
Data rate
Up to 5 Gb/s
Dielectric Withstanding Voltage
100V R.M.S
Insulation Resistance
1000 Megohms Min

Mechanical

Connector Type
USB3.0 / Type A
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount / Through Hole
Shielding
Shielded
Mating Force
3.57kg Max
Unmating Force
1.02kg Min

Material

Color
Blue

Environmental

Operating Temperature
-45 to 85 °C
