D-SUB Connector

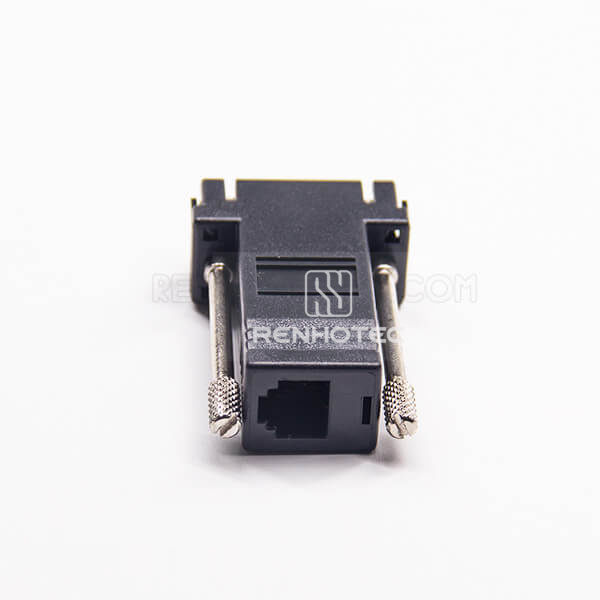

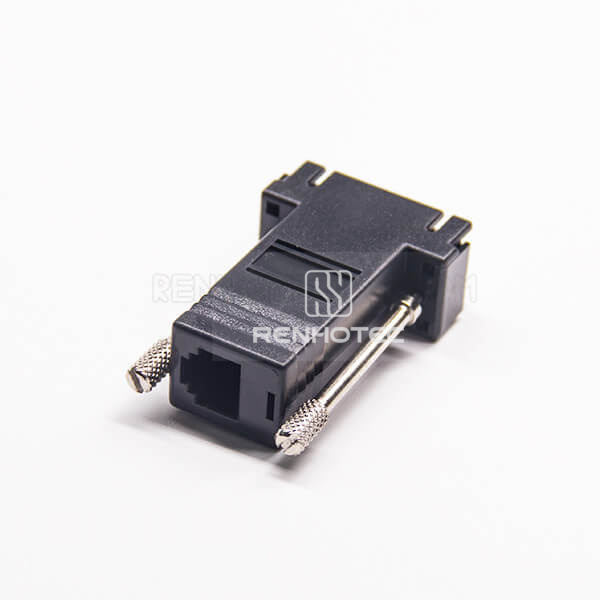

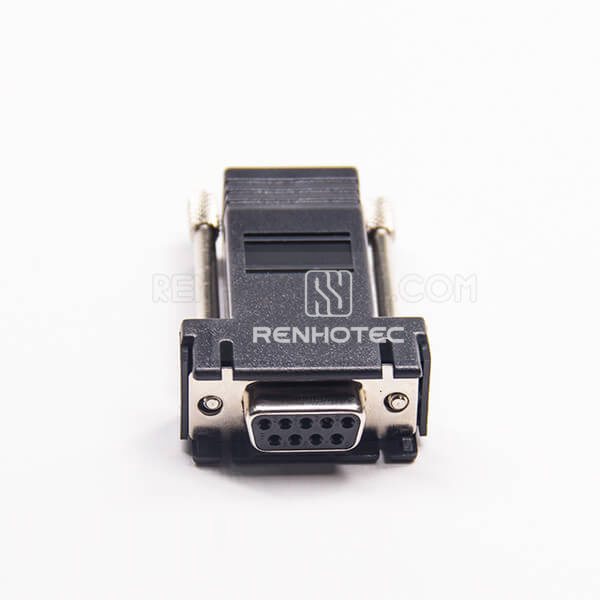

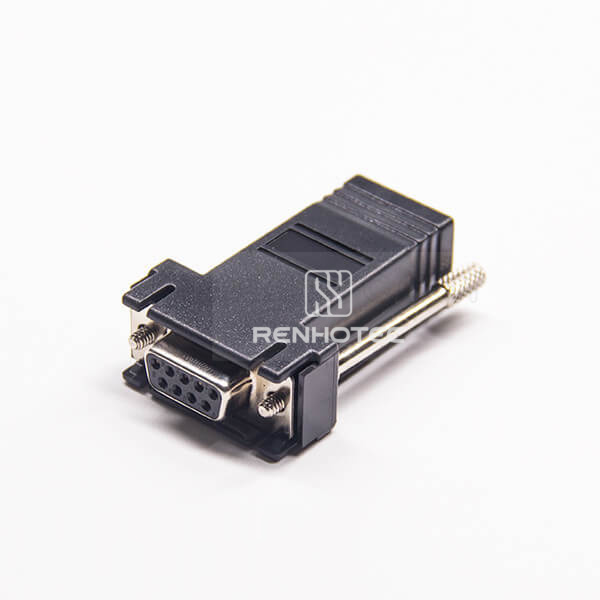

DB9 To RJ12 Adapter Female To Female Straight Plastic Shell Assembly Standard D-SUB

Public Part No. RHT-681-1263

DB9 To RJ12 Adapter Female To Female Straight Plastic Shell Assembly Standard D-SUB
Enlarge image
DB9 To RJ12 Adapter Female To Female Straight Plastic Shell Assembly Standard D-SUBDB9 To RJ12 Adapter Female To Female Straight Plastic Shell Assembly Standard D-SUBDB9 To RJ12 Adapter Female To Female Straight Plastic Shell Assembly Standard D-SUBDB9 To RJ12 Adapter Female To Female Straight Plastic Shell Assembly Standard D-SUB

Key specifications

Connector Type
D-SUB Adapter&Gender Changers
Pin Count
9 Pin
Gender
Female
Orientation
Straight
Request QuoteFull specifications

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Connector Type
D-SUB Adapter&Gender Changers
Pin Count
9 Pin
Gender
Female
Orientation
Straight
Construction detail
Plastic shell assembly
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.

Material

Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C
