D-SUB Connector

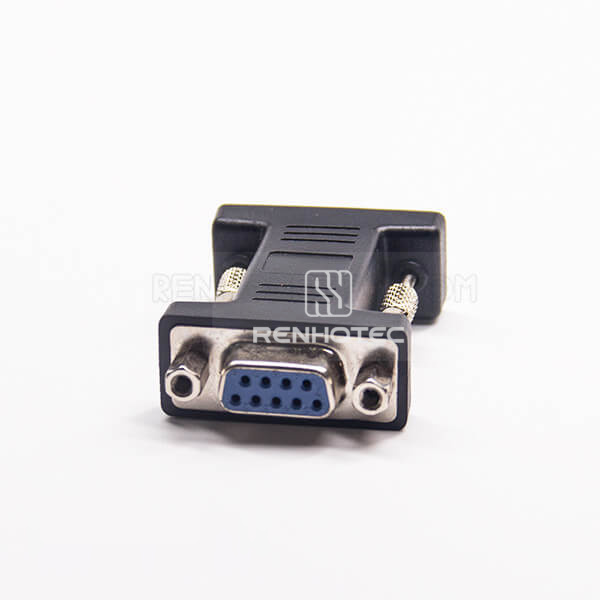

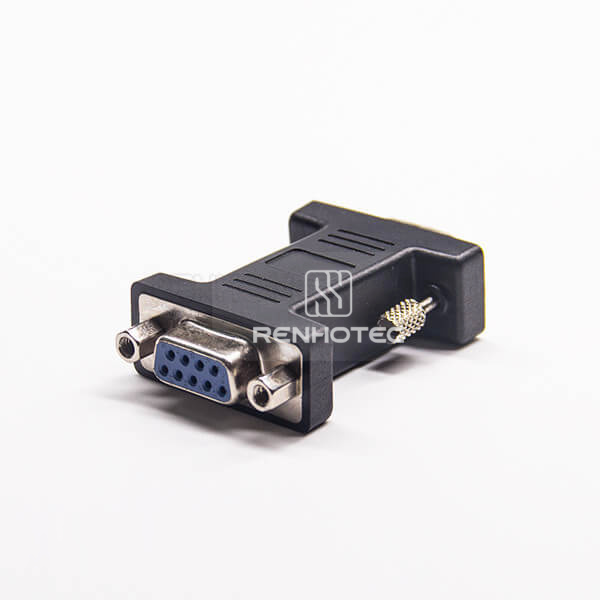

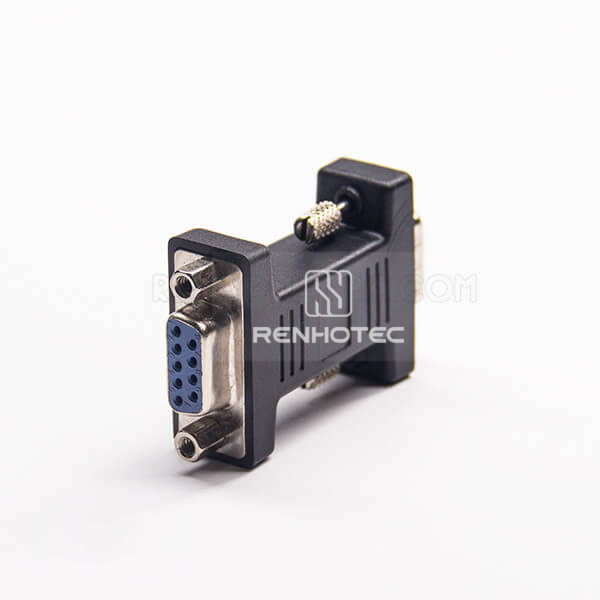

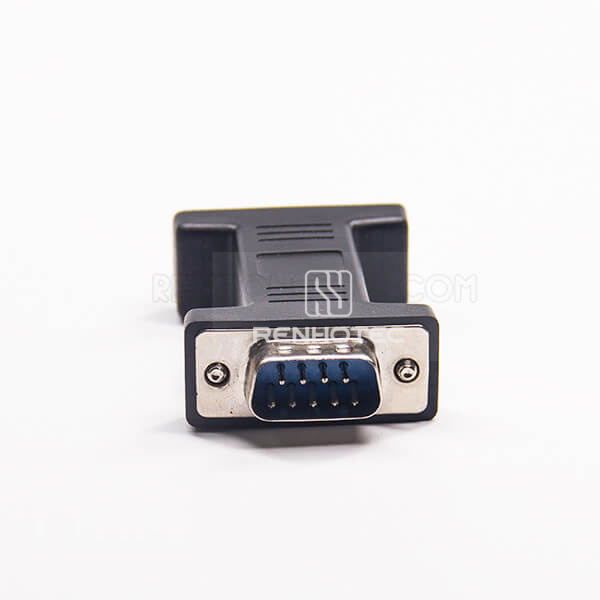

DB9 Male Pin To Female Straight Standard D-SUB Injection Adapter

Part No.RHT-681-1262
9-pin male-to-female D-SUB adapter with a straight configuration.
  • Connector TypeD-SUB Adapter&Gender Changers
  • Pin Count9 Pin
  • OrientationStraight

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Connection

Connector Type
D-SUB Adapter&Gender Changers

Mechanical

Pin Count
9 Pin
Orientation
Straight
Construction detail
Injection Adapter
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.
Gender at connector ends
Female / Male

Material

Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C

Before you specify

Selection guide

9-pin male-to-female D-SUB adapter with a straight configuration.

RHT-681-1262
