D-SUB Connector

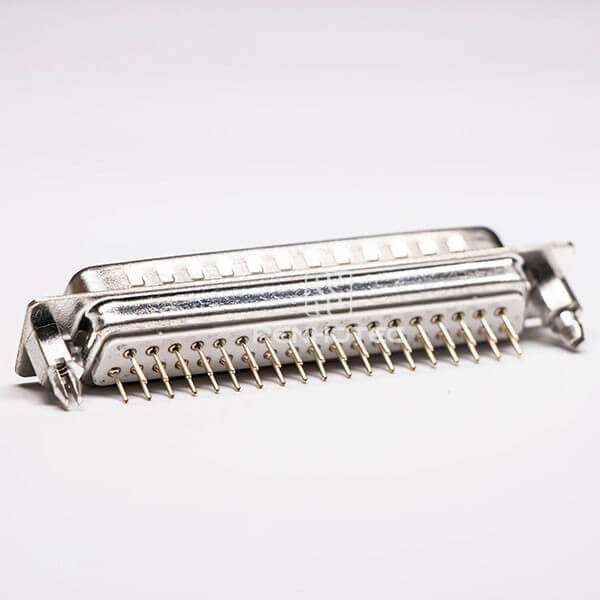

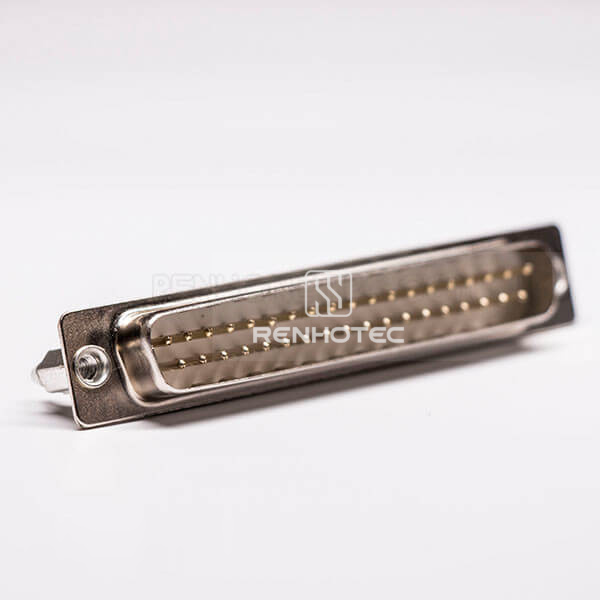

DB37 Male Solder Machined Pin Cable Connector

Part No.RHT-681-1159
37-pin male D-SUB connector with straight orientation.
  • Connector TypeCable Connector / D-SUB
  • Pin Count37 Pin
  • GenderMale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Voltage Rating
300V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
5000MΩ
Contact Resistance
8.5mΩ max. DF: 5mΩ max

Connection

Connector Type
Cable Connector / D-SUB

Mechanical

Pin Count
37 Pin
Gender
Male
Orientation
Straight
Contact construction
Machined contacts / Precision turned contacts

Environmental

Operating Temperature options
D: -67°F (-55°C) to +185°F (85°C), DF: -67°F (-55°C) to + 257°F (125°C)

Before you specify

Selection guide

37-pin male D-SUB connector with straight orientation. It uses machined contacts.

RHT-681-1159
