D-SUB Connector

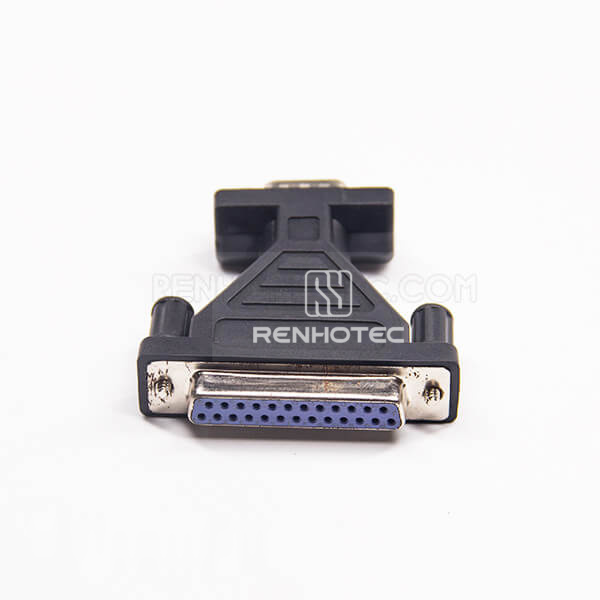

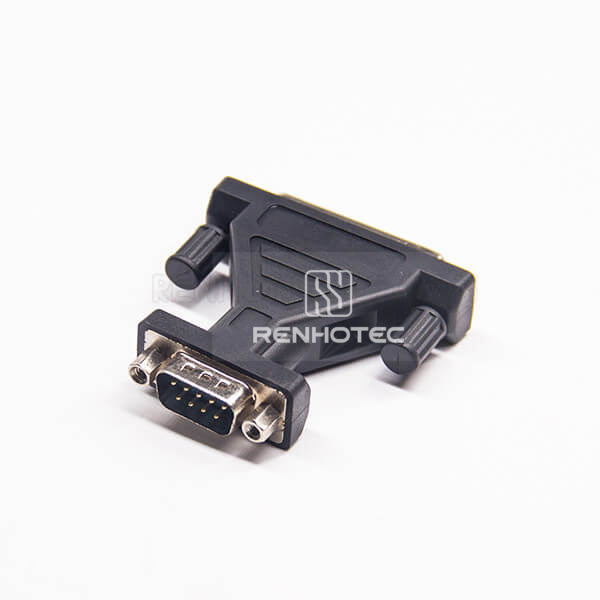

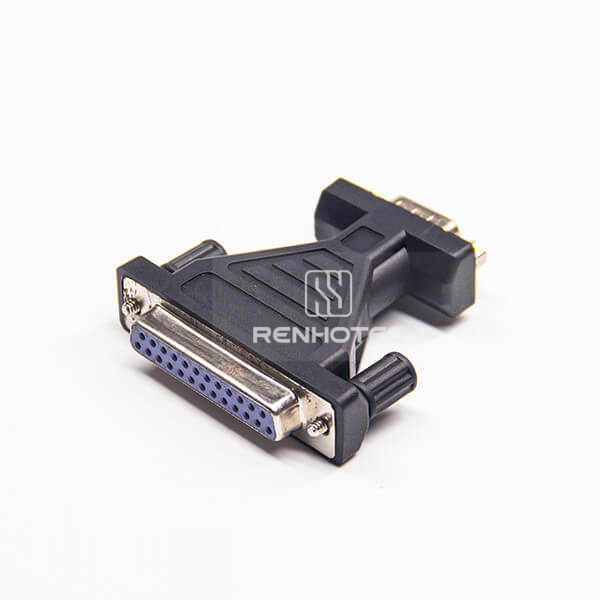

DB Adapter 9 Pin Male To 25 Pin Female Standard D-SUB Straight Injection Adapter

DB Adapter 9 Pin Male To 25 Pin Female Standard D-SUB Straight Injection Adapter
Enlarge image
DB Adapter 9 Pin Male To 25 Pin Female Standard D-SUB Straight Injection AdapterDB Adapter 9 Pin Male To 25 Pin Female Standard D-SUB Straight Injection AdapterDB Adapter 9 Pin Male To 25 Pin Female Standard D-SUB Straight Injection Adapter

Key specifications

Connector Type
D-SUB Adapter&Gender Changers
Orientation
Straight
Request QuoteFull specifications

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Connector Type
D-SUB Adapter&Gender Changers
Orientation
Straight
Construction detail
Injection Adapter / Injection adapter
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.
Pin Count at connector ends
25 Pin / 9 Pin
Gender at connector ends
Female / Male

Material

Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C
