D-SUB Connector

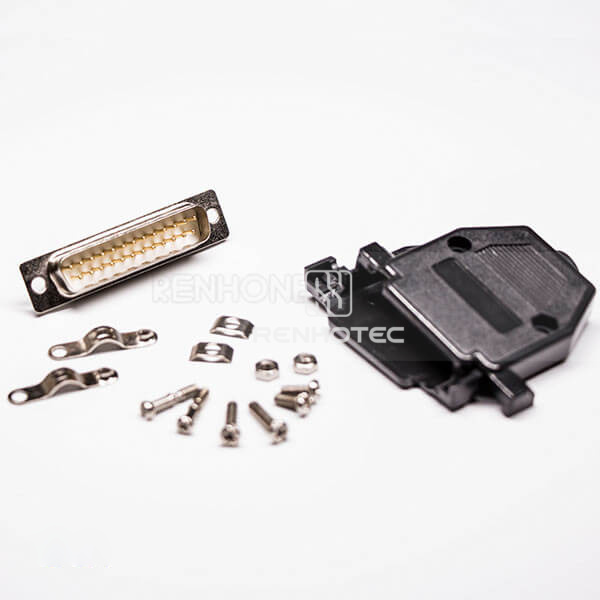

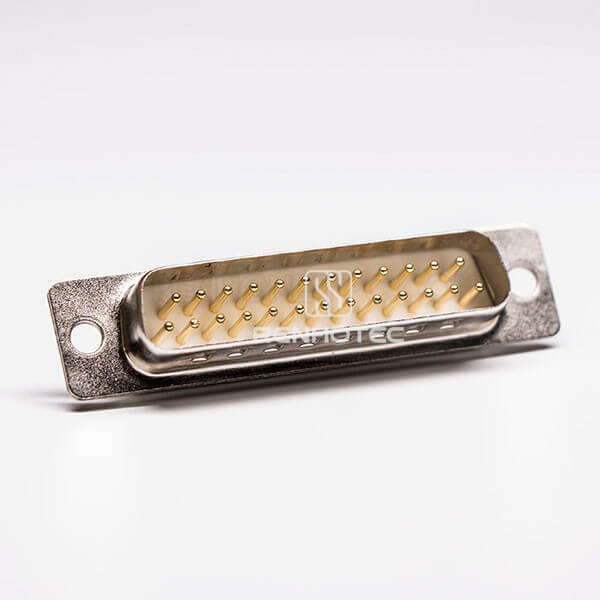

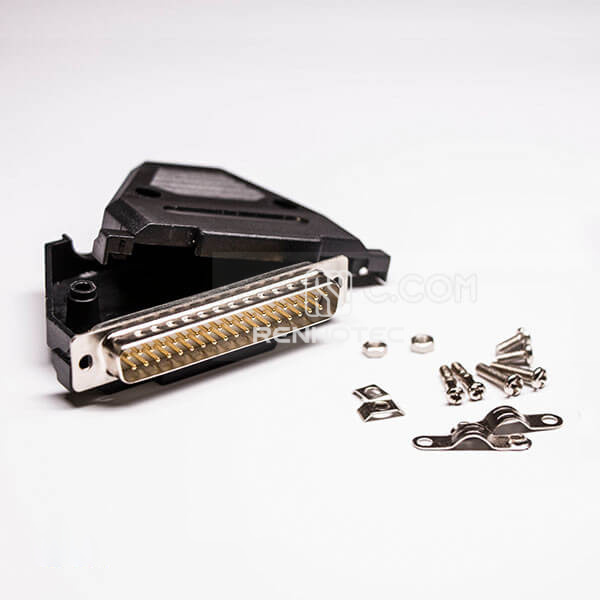

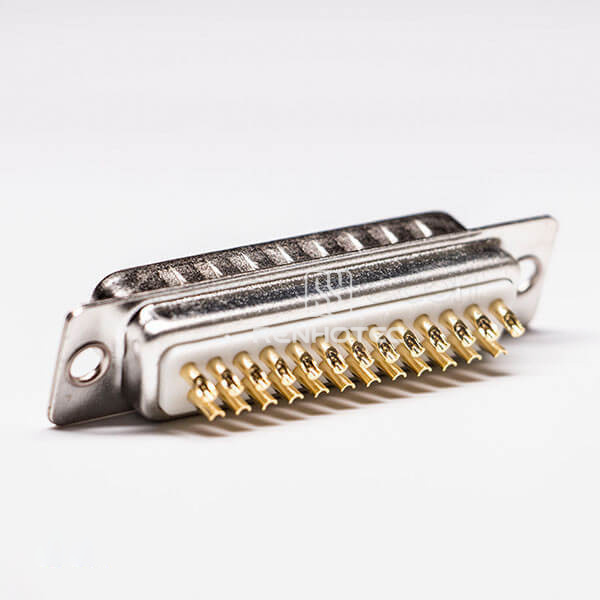

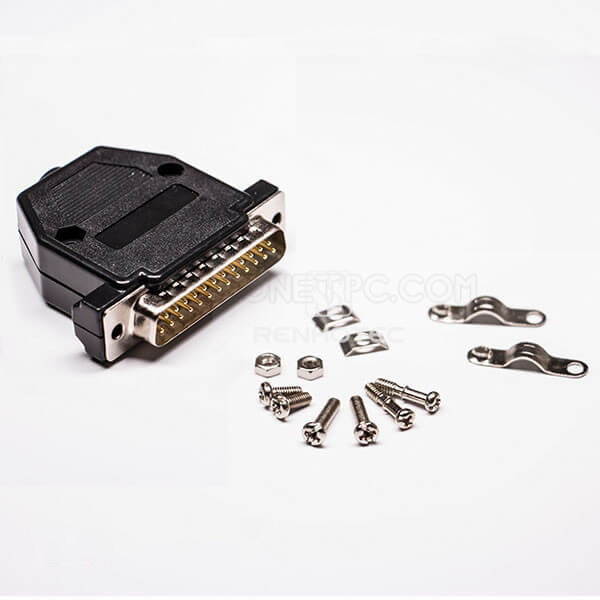

DB 25 Male used with Coaxial Cable Straight Solder Type Connector

Public Part No. RHT-681-1160

DB 25 Male used with Coaxial Cable Straight Solder Type Connector
Enlarge image
DB 25 Male used with Coaxial Cable Straight Solder Type ConnectorDB 25 Male used with Coaxial Cable Straight Solder Type ConnectorDB 25 Male used with Coaxial Cable Straight Solder Type ConnectorDB 25 Male used with Coaxial Cable Straight Solder Type ConnectorDB 25 Male used with Coaxial Cable Straight Solder Type Connector

Key specifications

Connector Type
Cable Connector / D-SUB
Pin Count
25 Pin
Gender
Male
Orientation
Straight
Termination Type
Solder Type
Request QuoteFull specifications

Overview

25-pin male D-SUB connector with straight orientation and solder termination. It uses machined contacts.

Full Specifications

Electrical

Voltage Rating
300V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
5000MΩ
Contact Resistance
8.5mΩ max. DF: 5mΩ max

Mechanical

Connector Type
Cable Connector / D-SUB
Pin Count
25 Pin
Gender
Male
Orientation
Straight
Termination Type
Solder Type
Contact construction
Machined contacts / Precision turned contacts

Environmental

Operating Temperature options
D: -67°F (-55°C) to +185°F (85°C), DF: -67°F (-55°C) to + 257°F (125°C)
