D-SUB Connector

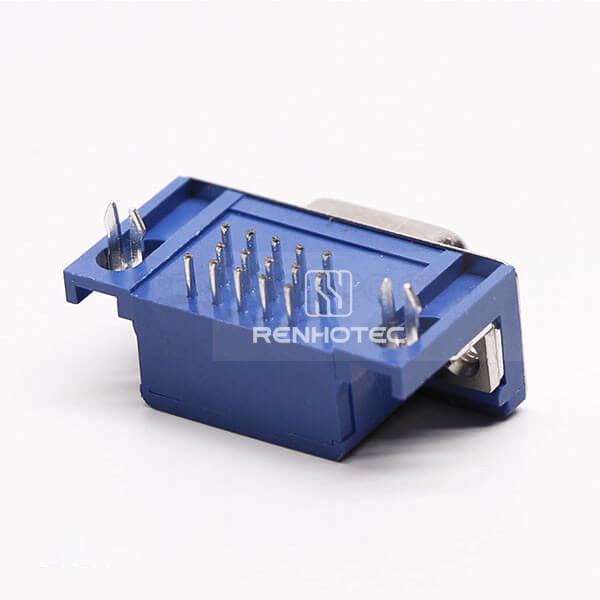

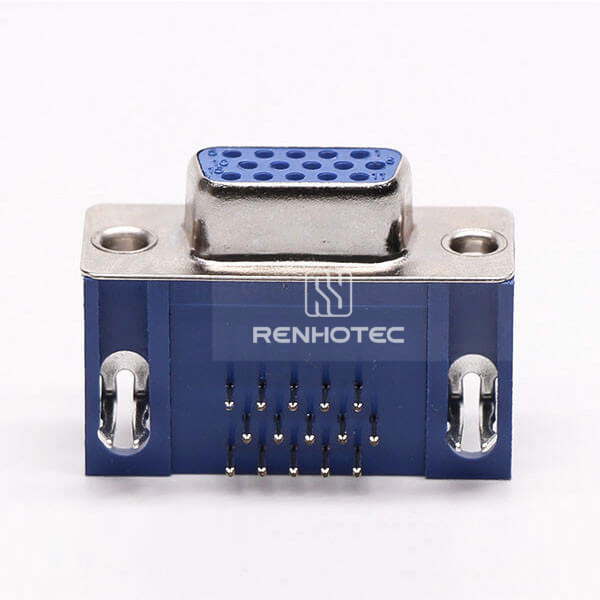

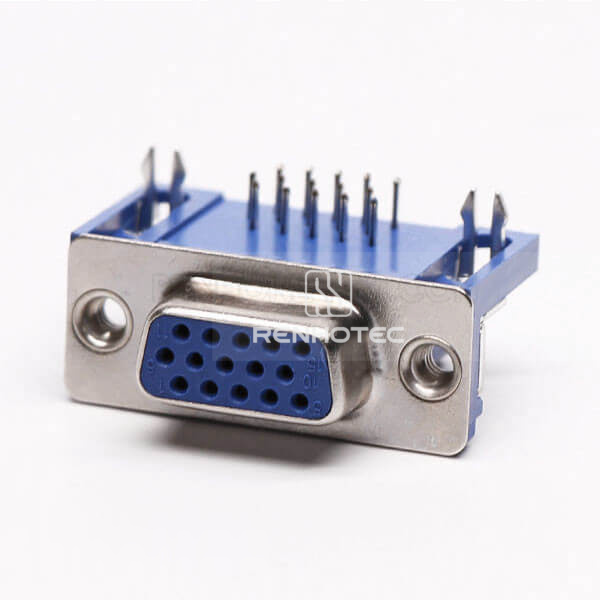

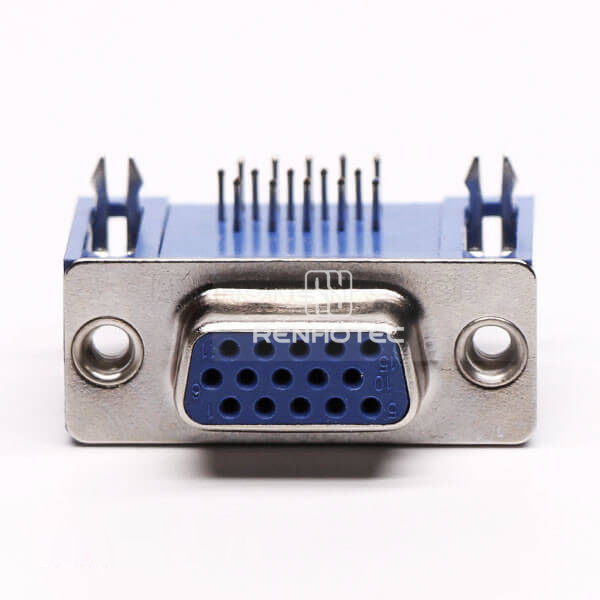

DB 15 Jack Right Angle High Density Through Hole Harpoon for PCB Mount

Public Part No. RHT-681-1196

DB 15 Jack Right Angle High Density Through Hole Harpoon for PCB Mount
Enlarge image
DB 15 Jack Right Angle High Density Through Hole Harpoon for PCB MountDB 15 Jack Right Angle High Density Through Hole Harpoon for PCB MountDB 15 Jack Right Angle High Density Through Hole Harpoon for PCB MountDB 15 Jack Right Angle High Density Through Hole Harpoon for PCB Mount

Key specifications

Connector Type
D-SUB Connector
Pin Count
15 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Request QuoteFull specifications

Overview

15-pin female high-density D-SUB connector with right-angle orientation and through-hole PCB mounting. Termination: staking type.

Full Specifications

Electrical

Current Rating
3A
Voltage Rating
60V
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V

Mechanical

Connector Type
D-SUB Connector
Pin Count
15 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Shielding
Shielded
Extraction force
<50 N
Insertion force
<50 N
Mating cycles
50

Material

Shell construction
Metal shell

Environmental

Operating Temperature
-55 to 105 °C

Connector requirement

Request a quote

Share your connector requirements and the specifications you need.

    Inquiry details

    Attach one PDF, JPEG or PNG, up to 5 MB.

    Include the details needed to help with your connector inquiry. You can check them before sending.

    Complete verification before sending.
