D-SUB Connector

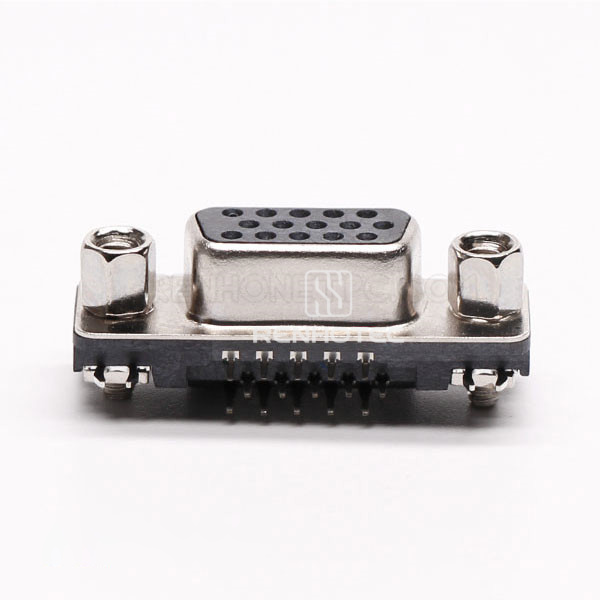

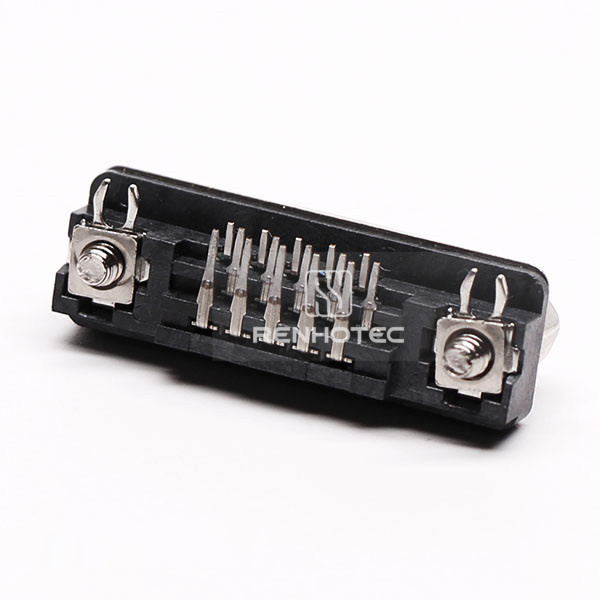

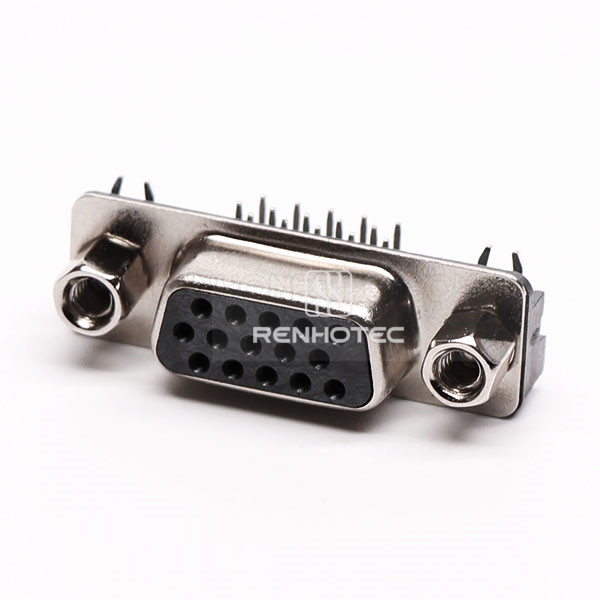

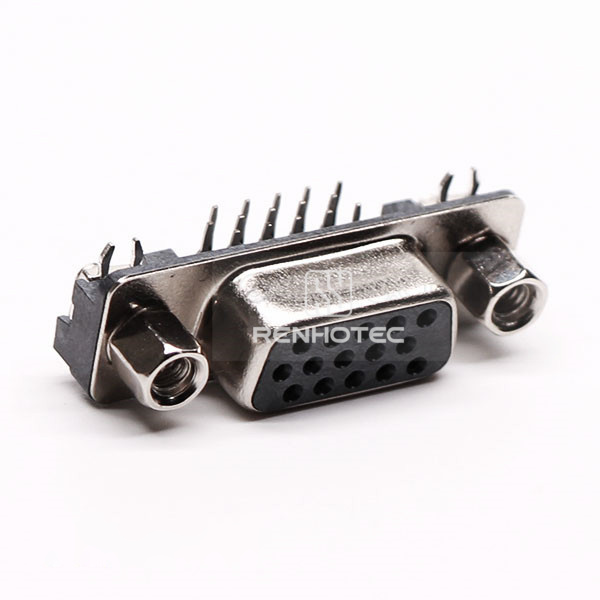

DB 15 90° Female High Density Staking Type Through Hole for PCB Mount

Public Part No. RHT-681-1198

DB 15 90° Female High Density Staking Type Through Hole for PCB Mount
Enlarge image
DB 15 90° Female High Density Staking Type Through Hole for PCB MountDB 15 90° Female High Density Staking Type Through Hole for PCB MountDB 15 90° Female High Density Staking Type Through Hole for PCB MountDB 15 90° Female High Density Staking Type Through Hole for PCB MountDB 15 90° Female High Density Staking Type Through Hole for PCB Mount

Key specifications

Connector Type
D-SUB Connector
Pin Count
15 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Request QuoteFull specifications

Overview

15-pin female high-density D-SUB connector with right-angle orientation and through-hole PCB mounting. Termination: staking type.

Full Specifications

Electrical

Current Rating
3A
Voltage Rating
60V
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V

Mechanical

Connector Type
D-SUB Connector
Pin Count
15 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Shielding
Shielded
Extraction force
<50 N
Insertion force
<50 N
Mating cycles
50

Material

Shell construction
Metal shell

Environmental

Operating Temperature
-55 to 105 °C
