D-SUB Connector

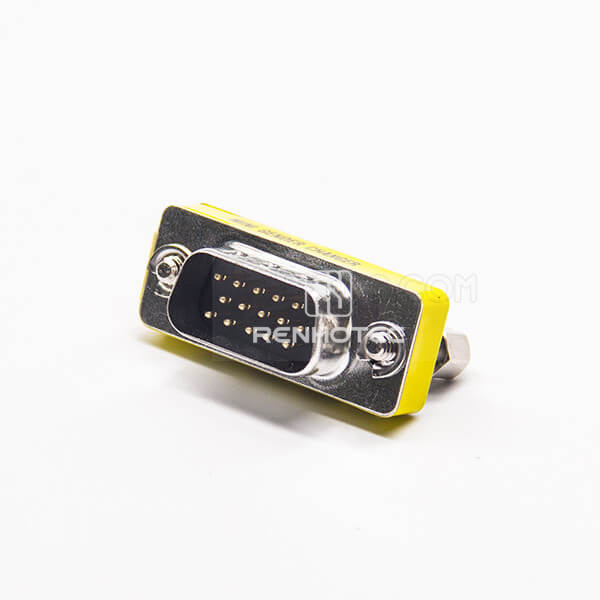

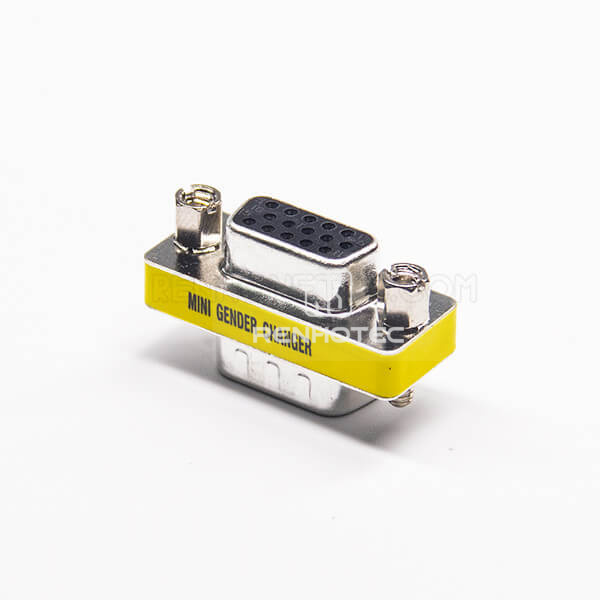

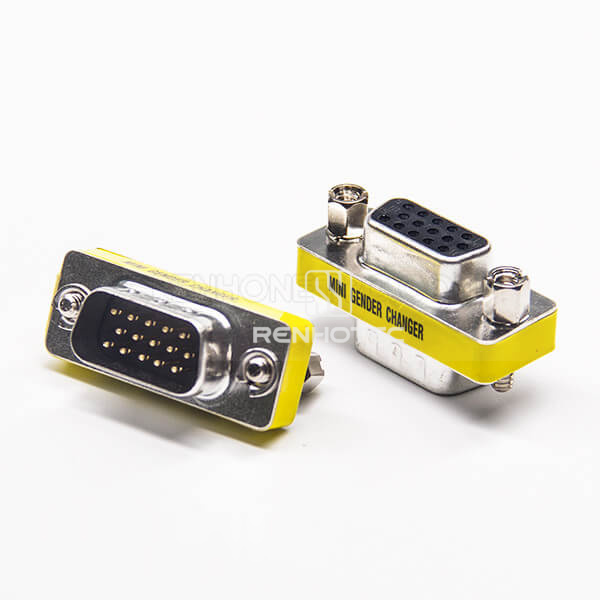

D-SUB To VGA Adapter 180 Degree High Density D-SUB Male to Female 15 Pin Metal

Part No.RHT-681-1283
15-pin male-to-female high-density D-SUB adapter with a straight configuration.
  • Connector TypeD-SUB Adapter&Gender Changers
  • Pin Count15 Pin
  • OrientationStraight

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Connection

Connector Type
D-SUB Adapter&Gender Changers

Mechanical

Pin Count
15 Pin
Orientation
Straight
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.
Gender at connector ends
Female / Male

Material

Material
Metal / metal
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C

Before you specify

Selection guide

15-pin male-to-female high-density D-SUB adapter with a straight configuration.

RHT-681-1283
