D-SUB Connector

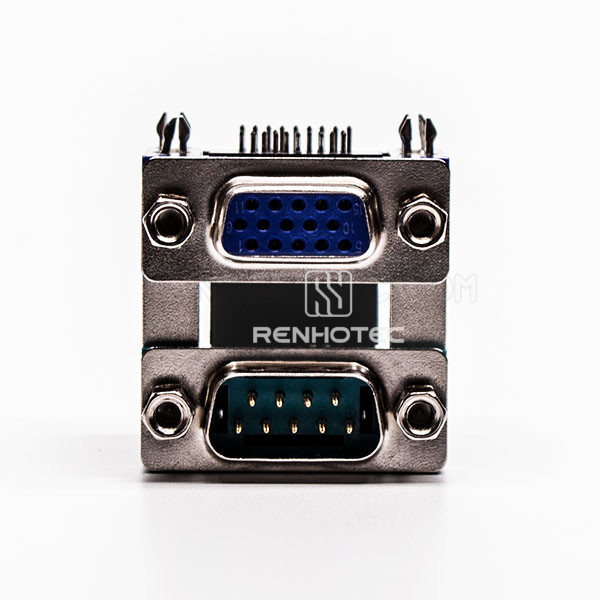

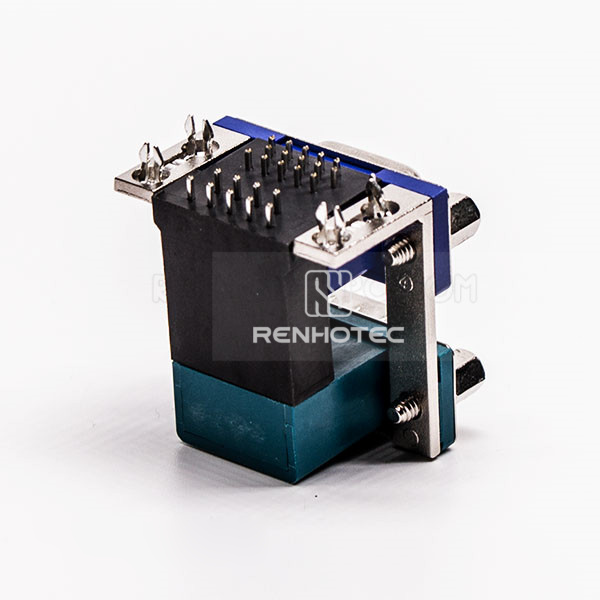

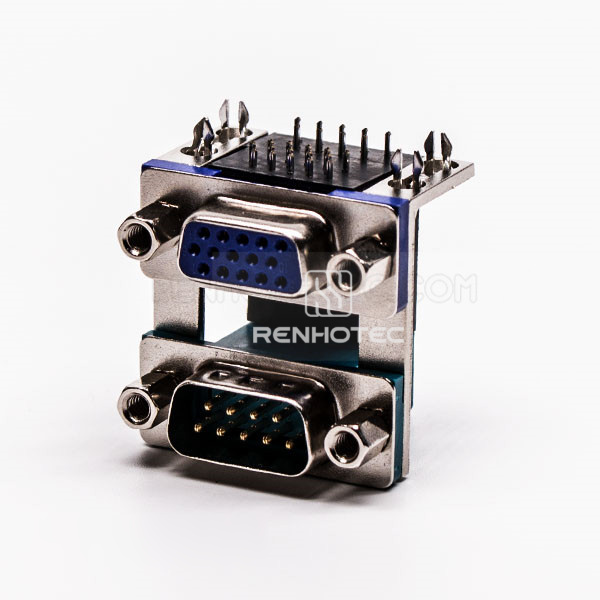

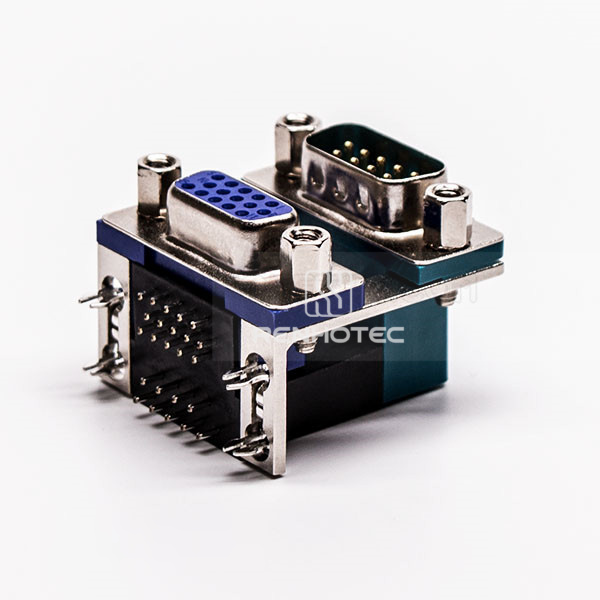

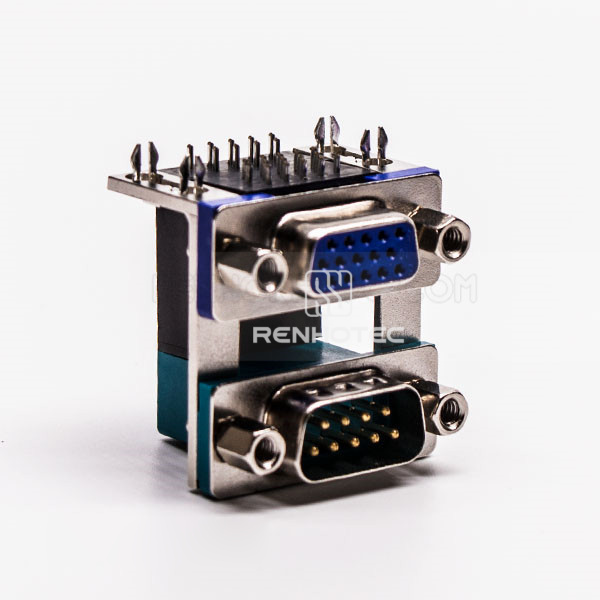

D-SUB Stacked Connector Staking Type Through Hole for PCB Mount

Public Part No. RHT-681-1207

D-SUB Stacked Connector Staking Type Through Hole for PCB Mount
Enlarge image
D-SUB Stacked Connector Staking Type Through Hole for PCB MountD-SUB Stacked Connector Staking Type Through Hole for PCB MountD-SUB Stacked Connector Staking Type Through Hole for PCB MountD-SUB Stacked Connector Staking Type Through Hole for PCB MountD-SUB Stacked Connector Staking Type Through Hole for PCB Mount

Key specifications

Connector Type
D-SUB Connector
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Request QuoteFull specifications

Overview

Stacked D-SUB connector in a right-angle configuration. Termination: staking type.

Full Specifications

Electrical

Current Rating
3A
Voltage Rating
60V
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V

Mechanical

Connector Type
D-SUB Connector
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Shielding
Shielded
Construction detail
Stacked / stacked
Extraction force
<50 N
Insertion force
<50 N
Mating cycles
50

Material

Shell construction
Metal shell

Environmental

Operating Temperature
-55 to 105 °C
