D-SUB Connector

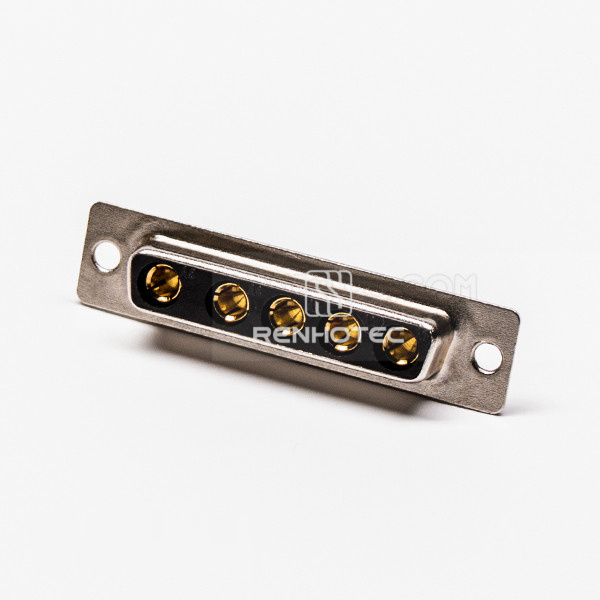

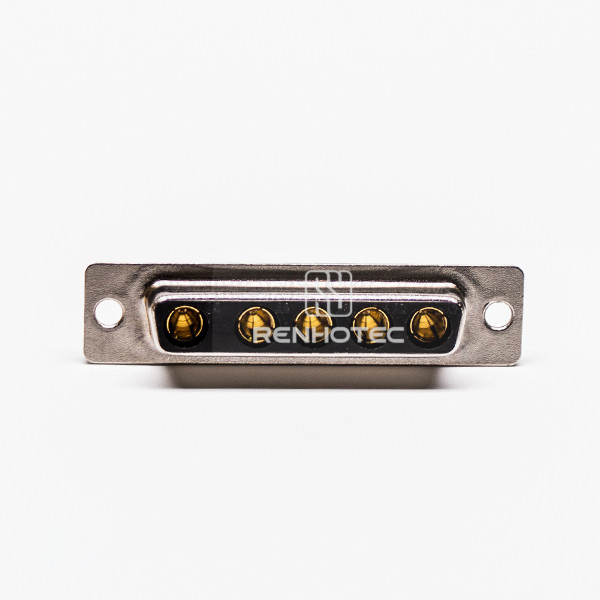

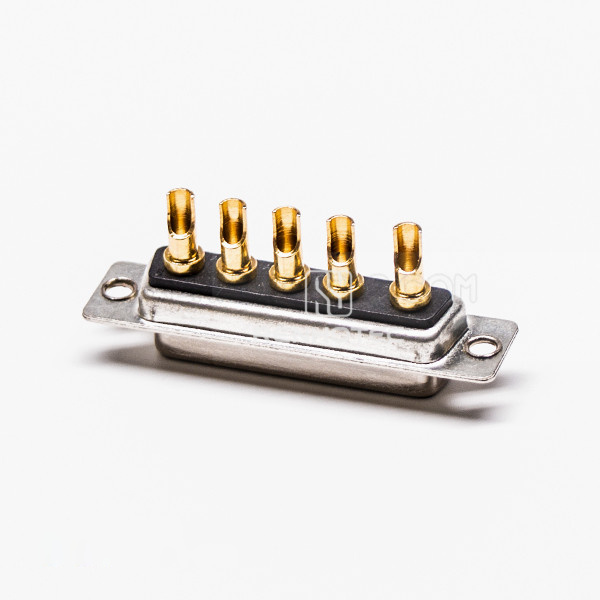

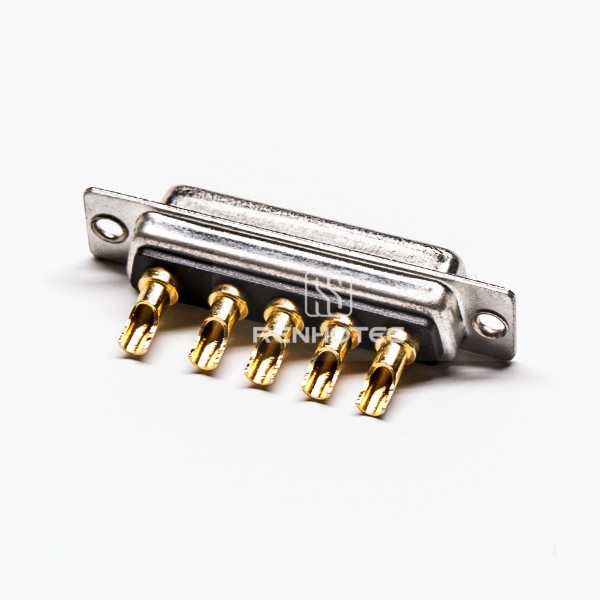

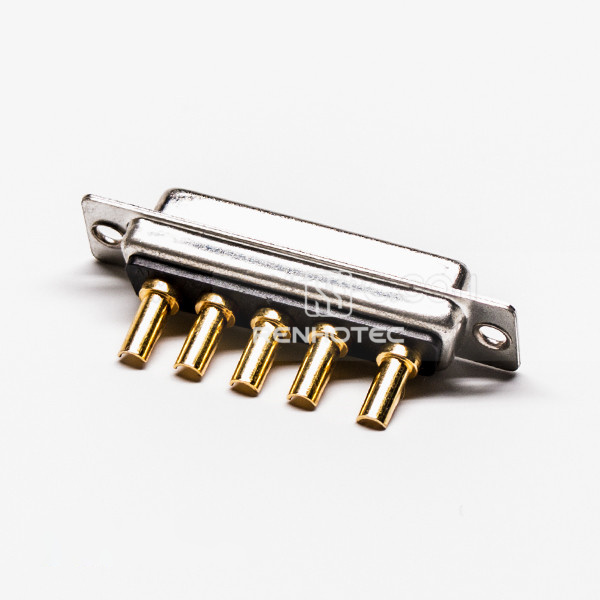

D-SUB Power Connector Solder Type 5W5 Female Straight Cable Connector

Part No.RHT-681-1217
5W5 female D-SUB connector with straight orientation and solder termination.
  • Connector TypeCable Connector / Power D-SUB
  • GenderFemale
  • OrientationStraight

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Frequency range
0 -1 GHz
VSWR
1.4 (+0.04/GHz)
Characteristic Impedance
50 Ohms
Dielectric Withstanding Voltage
≥ 1000V R.M.S. at 50Hz
Insulation Resistance
≥ 5000 megaohms at 500 V D.C.
Contact Resistance
≤5 milliohms

Connection

Connector Type
Cable Connector / Power D-SUB

Mechanical

Gender
Female
Orientation
Straight
Termination Type
Solder Type
Contact configuration
5w5
Mechanical operations
up to 500

Environmental

Operating Temperature
-55 to 155 °C

Before you specify

Selection guide

5W5 female D-SUB connector with straight orientation and solder termination.

RHT-681-1217
