D-SUB Connector

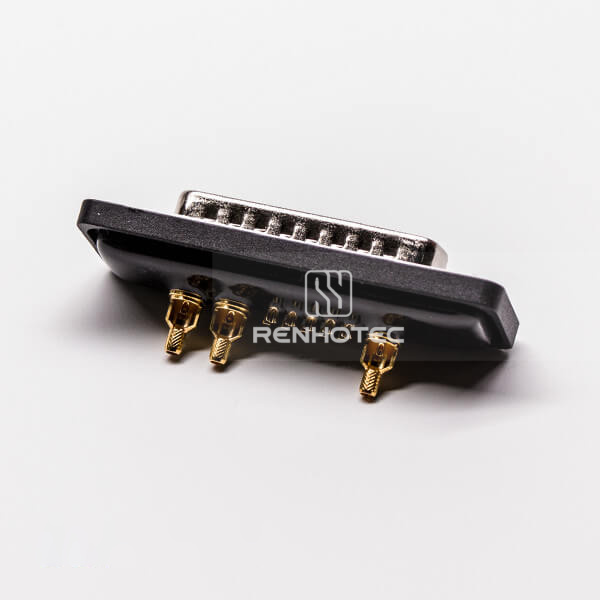

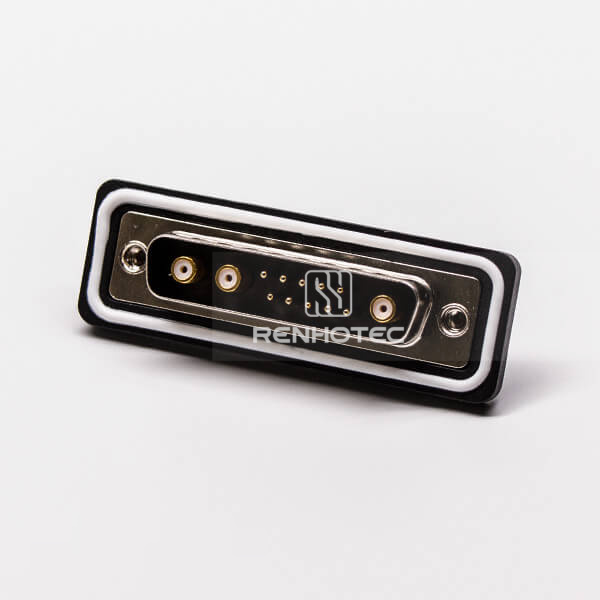

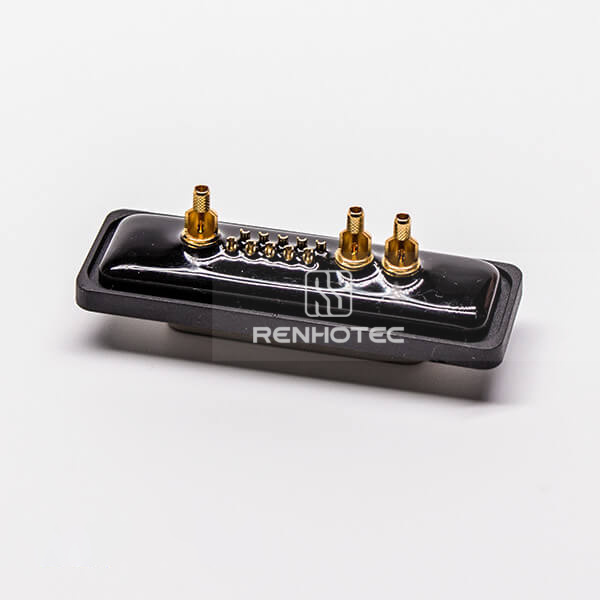

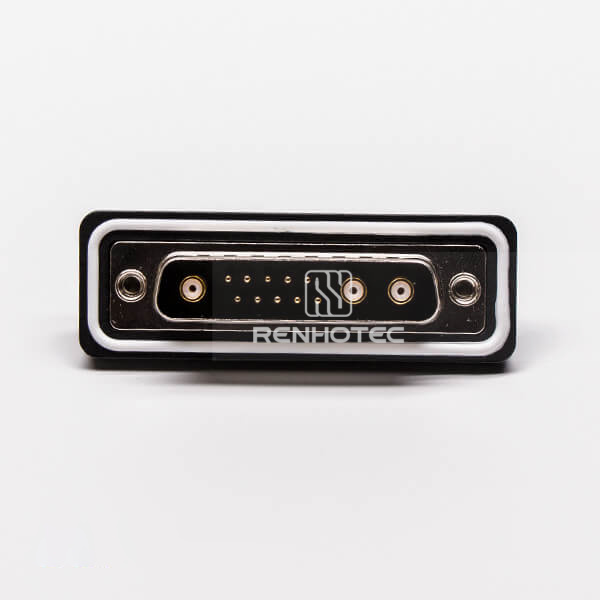

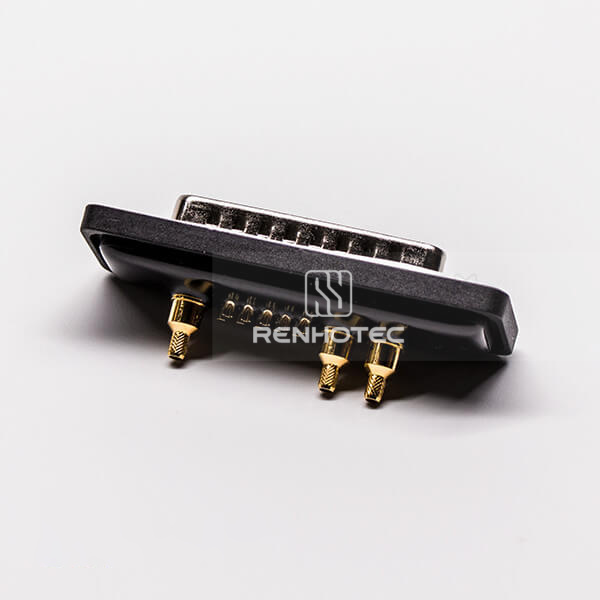

D-SUB IP67 Connector Environmental Rating 13w3 Male Straight Coaxial for Cable
Public Part No. RHT-681-1173
Key specifications
- Connector Type
- Cable Connector / D-SUB
- Gender
- Male
- Orientation
- Straight
Overview
13W3 male D-SUB connector with straight orientation. It uses machined contacts. An interfacial seal is included.
Full Specifications
Electrical
- Current Rating
- 7.5A
- Contact resistance
- 10 mOhm
- Dielectric Withstanding Voltage (Signal)
- 1000 V
- Working voltage signal
- 125 V
- Working Voltage
- 1000V
Mechanical
- Connector Type
- Cable Connector / D-SUB
- Gender
- Male
- Orientation
- Straight
- Contact configuration
- 13w3
- Contact construction
- Machined contacts
- Seal construction
- Interfacial seal
- Extraction force
- 30N
- Insertion force
- 30N
Environmental
- Operating Temperature
- -25 to 125 °C
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
D-SUB IP67 Connector Environmental Rating 13w3 Male Straight Coaxial for Cable- Product family
- D-SUB Connector
- Public Part No.
- RHT-681-1173
