D-SUB Connector

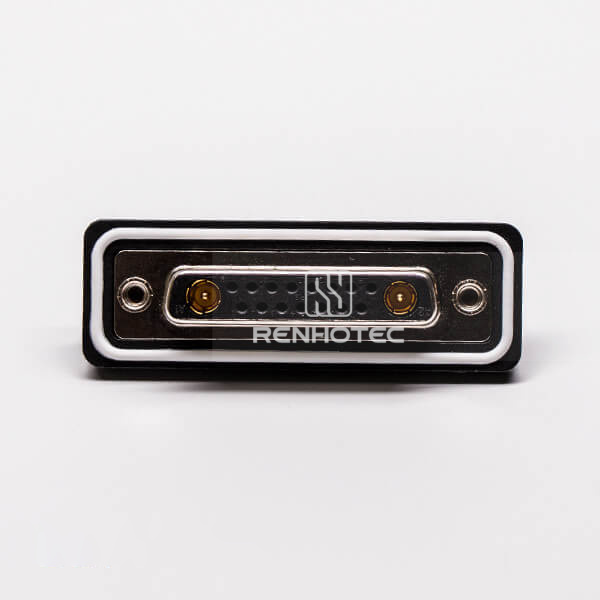

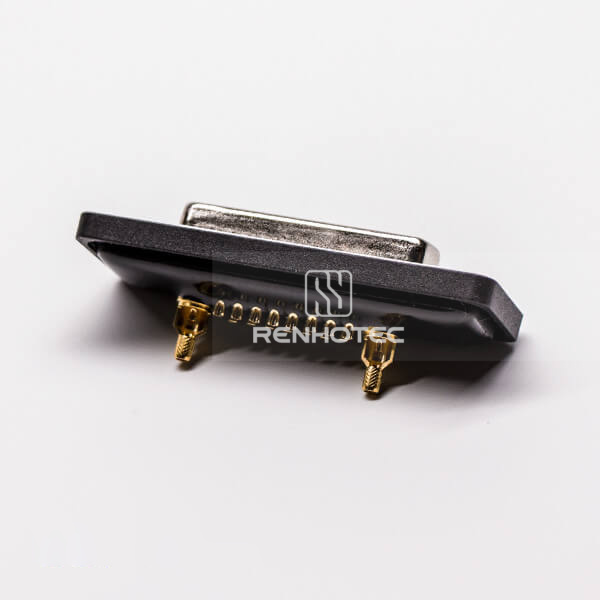

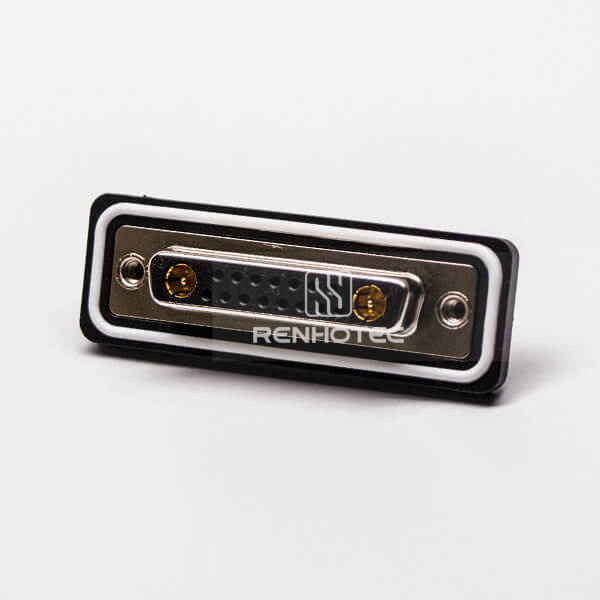

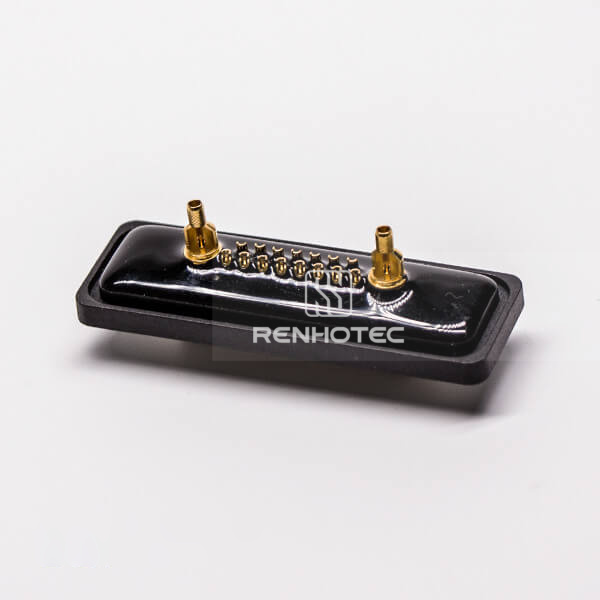

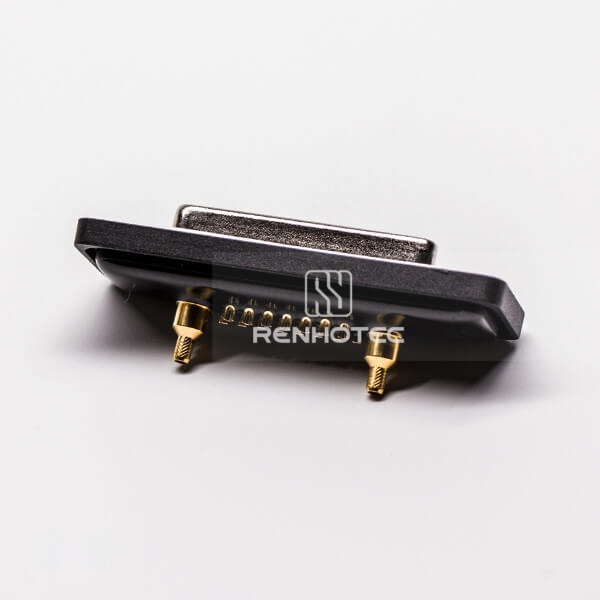

D-SUB IP67 Coaxial Female Straight 17w2 Solder Type Connector

Part No.RHT-681-1175
17W2 female D-SUB connector with straight orientation and solder termination.
  • Connector TypeCable Connector / D-SUB
  • GenderFemale
  • OrientationStraight

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
7.5A
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V
Working voltage signal
125 V
Working Voltage
1000V

Connection

Connector Type
Cable Connector / D-SUB

Mechanical

Gender
Female
Orientation
Straight
Termination Type
Solder Type
Contact configuration
17w2
Contact construction
Machined contacts
Seal construction
Interfacial seal
Extraction force
30N
Insertion force
30N

Environmental

Operating Temperature
-25 to 125 °C

Before you specify

Selection guide

17W2 female D-SUB connector with straight orientation and solder termination. It uses machined contacts. An interfacial seal is included.
